Summary:

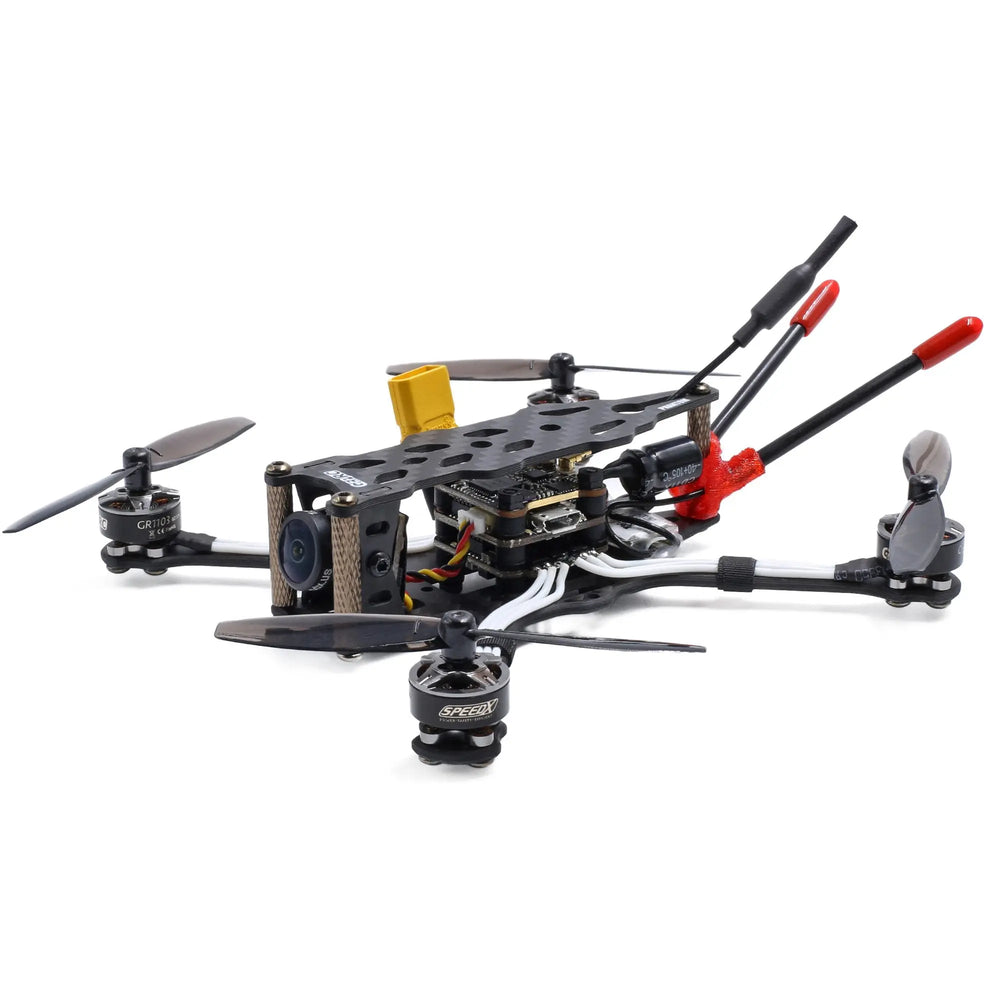

PHANTOM is a super mini Freestyle Quad,2.5inch propeller and GR1103 8000kv motors with 3S 300mAh battery, The flight experience is like a 5-inch propeller quad. Freestyle training quad. You will be like it.
Specifications:
- Name: PHANTOM
- FC:STM32F411
- ESC:12A(BLheli_S)
- Motor: GEPRC GEP-GR1103 8000KV(3S 300mAh)
- Wheelbase: 125mm
- Propeller: HQ Prop T65
- VTX:5.8g 200mW
- Camera:Caddx EOS2
- Battery Input: 2-3S Lipo 300mAh
- Weight: 51g (without battery)
- Take-off weight is less than 250 grams
STABLE F411 Micro System:
STABLE F411 Flight Controller(16*16mm)
- MCU: STM32F411
- Gyro: 6-Axis
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC Output: 5V@2A
- Size: 21mm*21mm
- Mounting holes: 16mm*16mm
- Integrated LC Filter
- Input voltage 2-3S LIPO
- Firmware target: MATEKF411
- Weight: 2.5g
STABLE F411 BLheli_S 4IN1 12A ESC(16*16mm)
- MCU: BB21F16G
- Continuous current: 12A
- Input voltage : 2-4S LIPO
- ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
- Size: 23mm*21mm
- Mounting hole 16*16mm
- Firmware target: Blheli_S G_H_30
- Current meter: 210
- Weight: 2.7g
STABLE F411 VTX 5.8G 200mW(16*16mm)
- Power : PIT/25/100/200mW
- Antenna interface : IPEX (UFL)
- Telemetry: IRC Tramp
- Size: 17mm*27mm
- Mounting holes: 16*16mm
- Integrated LC Filter
- Weight: 1.6g
Il pacchetto Include
-1 x PHANTOM Quadcopter
NOTA BENE: PER GARANTIRE LA MASSIMA QUALITÀ, OGNI MODELLO PRIMA DI ESSERE SPEDITO SARA’ ISPEZIONATO DAL NOSTRO STAFF.
