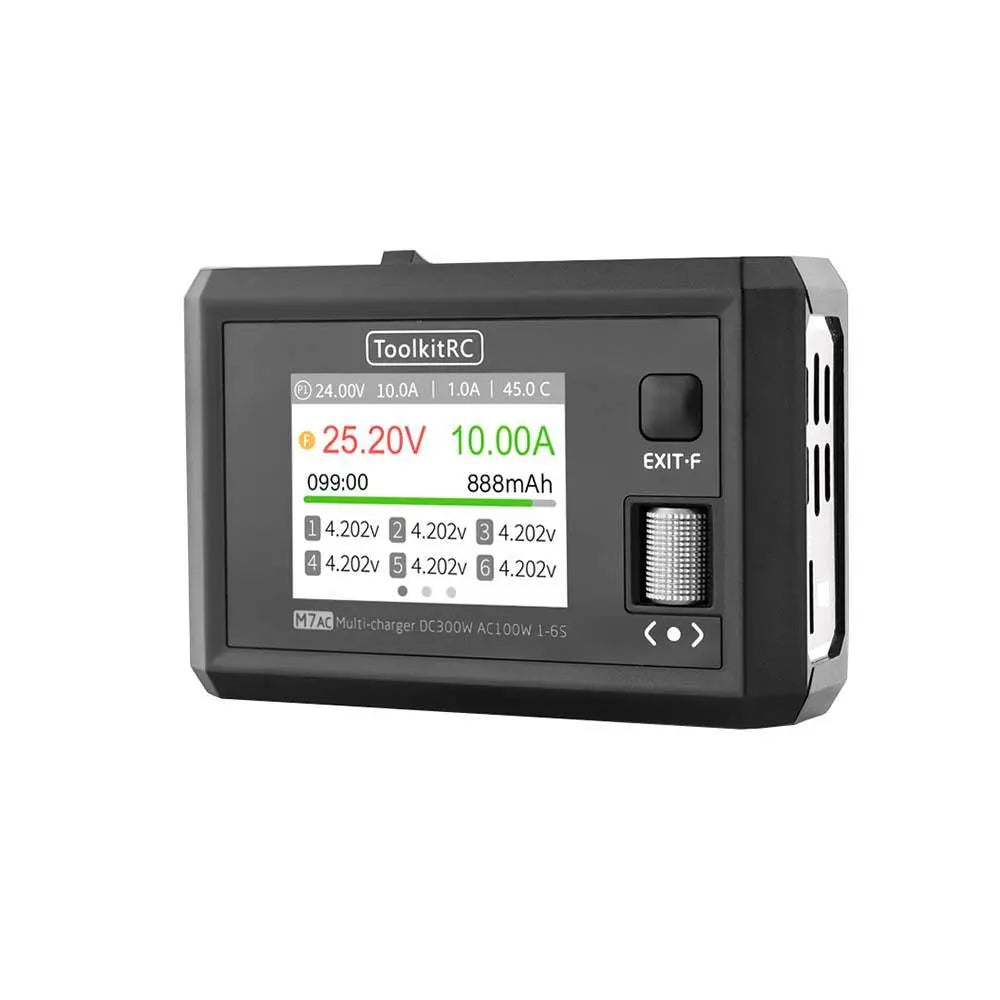

The ToolkitRC M7AC multi-function AC smart charger features dual AC/DC input, XT30/XT60 output and supports 2-6S. The M7 Toolkit is not just a charger, but also a versatile tool kit. It can be used as a power supply, multimeter, signal source, drone charger and signal tester!
VIDEO: ToolkitRC M7ac Multifunction Charger Review ⚡
Characteristics
- XT30/XT60 output
- Dual AC/DC input
- Supports 2-6S
- Drone charger
- Power supply
- Signal source
- Signal tester
- Multimeter
Specifications
BATTERY CHARGER
- Discharge Power: 300W @MAX 15A Recycle Mode / 15W@3A Normal Mode
- Input Voltage: AC 100-240V MAX 100W 1.5A / DC 7.0-28.0V @ MAX 20A
- Battery type: Lipo LiHV LiFe Lion LTO@1-6S / NiMh @1-16S Pb @1-10S
- Charging power: 300W @MAX 15A
- Balancing current: 800mA at 4.2V
- USBA: 10W@5.0V or Upgrade
GENERAL
- LCD: 2.4 inch IPS LCD 320*240 resolution
- Packaging dimensions: 144x125x43 mm
- Product dimensions: 112x73x38 mm
- Package weight: 380g
- TF Card: 128MB-16GB
- Product weight: 245g
TO MEASURE
- Internal resistance: 0.1mR-99mR @ 1-6S
- SBUS: 880-2200us * 16CH @ 20-100Hz
- PPM: 880-2200us * 8CH @ 20-50Hz
- PWM: 880-2200us @ 20-400Hz
- Voltage: 1.0-5.0V@1-6S
- ESC: 300W at 15A
PRODUCTION
- Power supply: 1.0-28.0V @0.5-15A mode: CC CV
- SBUS: 880-2200us * 16CH @ 20-100Hz
- PPM: 880-2200us * 8CH @ 20-50Hz
- PWM: 500-2500us @ 20-1000Hz
- Overcurrent response: <5ms
IMPORTANT NOTES
- This is the American version.
Connections
Package Included
- 1x ToolkitRC M7 100W AC/300W DC 15A 2-6S Multifunction AC Smart Balance Charger
