The M8S is a worthy upgrade over the previous version, the M8. The M8S adds extra power at 400W, amperage hour at 18A and a color display! You can even test your Sbus/PWM/PPM signals with this charger!
-
The M8S compared to its predecessor M8 adds extra power at 400W, amperage now at 18A and a color display! You can even test your Sbus/PWM/PPM signals with this charger!
The M8S has tons of features, even with its small size. A super useful tool to take with you wherever you go!
Characteristics
- 2.4" color screen
- Battery charger
- Cell phone control
- Servant Tester
- PWM,PPM.SBUS input/output receiver and flight control tester
- Viable AMP/volt DC power (external DC input required)
Specifications
- In charge
- 7-30V input: @MAX18A
- Battery type: LiPo LiHV LiFe Lion @1-8S NiMh @1-20S Pb @1-12S
- Bal Current: 800mA @2-8S
- Accuracy: ±0.01V
- Charging power 0.1-18A at 400W
- Discharge power 0.1-18A @ 400W
- Recycle mode 0.1-5A at 20W Normal mode
- USB upgrade 2.1A @ 5.0V
Measurement
- PWM 880us-2200us @20-400Hz
- PPM 880us-2200us*8Ch @20-50hz
- SBUS 880us-2200us*16ch @20-100Hz
- Voltage 1.0V-5.0V @1-8S
- IR 1-100mR @1-8S
Production
- PWM 500us-2500us @20-1000Hz
- PPM 880us-2200us*8ch @50hz
- SBUS 880us-2200us*16ch @74Hz
- Power supply 1-18A @ 1-30V Mode: CC+CV
- Display: 2.4 inch TFT LCD with 320*240 resolution
Product

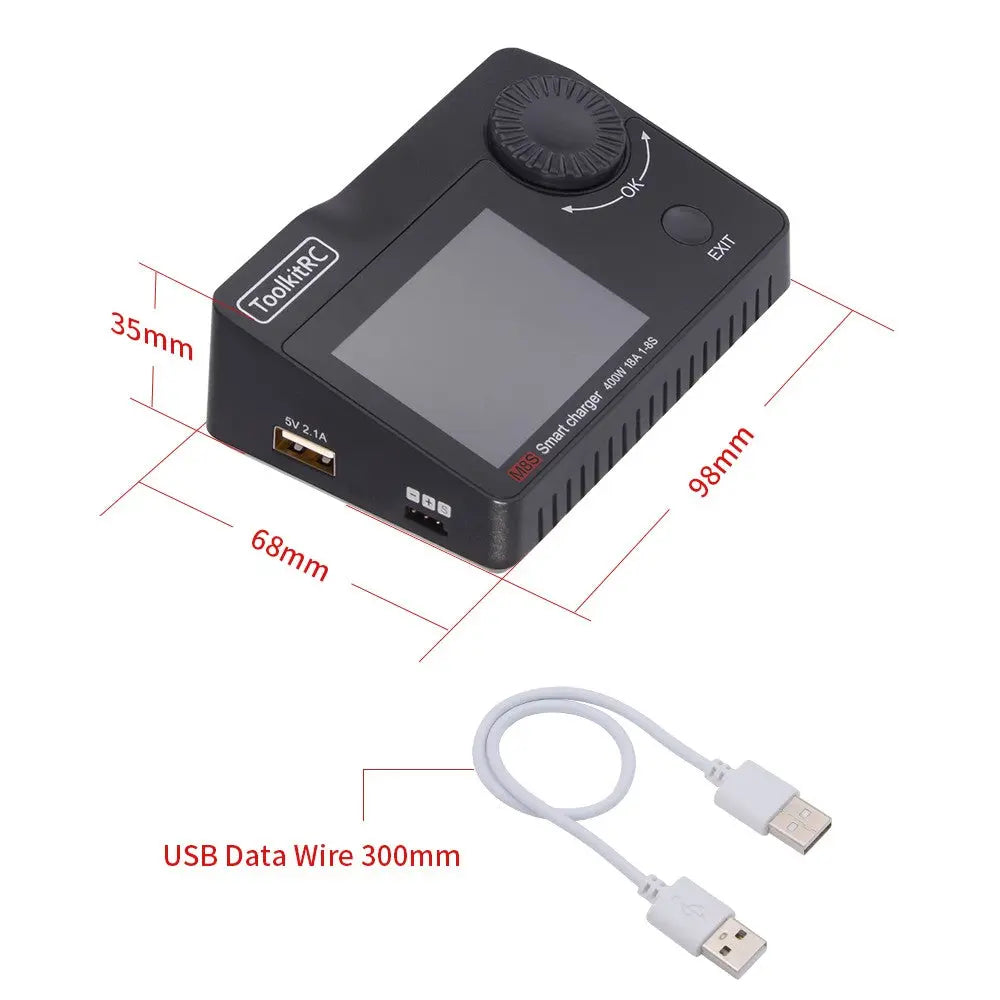

- Size 98mm*68mm*35mm
- Weight 170 g
- Packing: Size 108.5mm*80.5mm*46mm Weight 255g

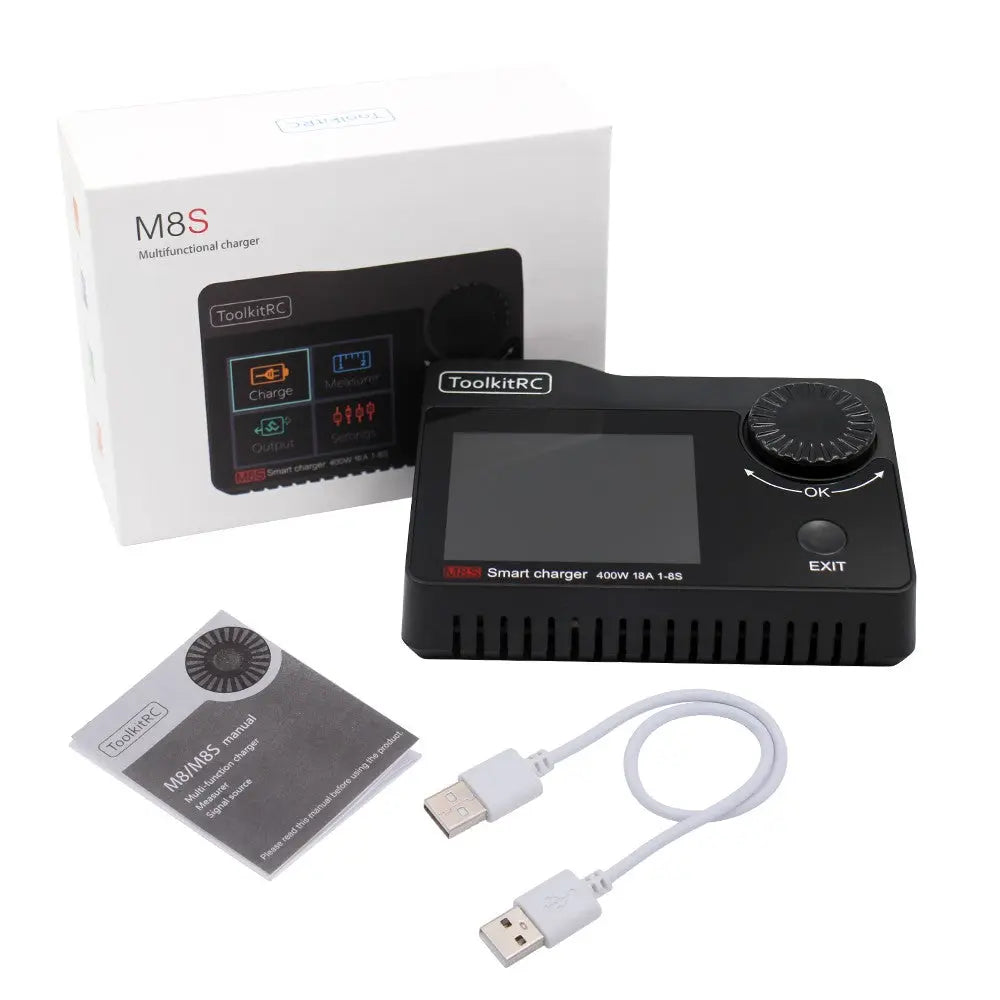

Package Included
- 1 x ToolkitRC M8S 400W 18A charger
Add a power supply (not included)
The ToolKit charger is very powerful but requires an external power supply to work. We suggest one of the following power supplies below if you don't already have one.
- Battery charger power supply - 400w 16.7A 24V with XT60
- Battery charger power supply - 360w 15A 24V with XT60
- Battery charger power supply - 250w 10A 24V with XT60
Manual and documentation
