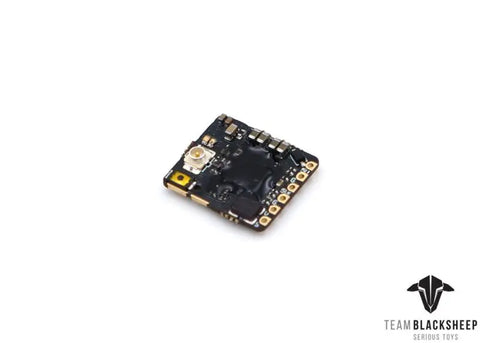

TBS UNIFY PRO32 NANO 5G8 V1.1 increased power output, improved ruggedness, decreased power consumption, added the capability of crazy functions and refined the way it is installed in the multirotor. Simply put, it's the most complete, future-proof, highest quality, and overall best VTX nano ever made.
Increased the power output, improved the ruggedness, decreased the power consumption, added the capacity for crazy functions and perfected the way it is installed in the multirotor. Simply put, it is the most complete, future-proof, highest quality and overall best nano VTN ever made.
Main features
- Smallest and lightest video transmitter on the market
- Barcode reading
- Up to 500mw+ of output power
- Ultra clean transmission (up to 16 riders simultaneously!)
- PitMode: Turn on the quad during a race. Now with team racing capabilities!
- Easy switching of OSD, FC and RC channels, with fallback button menu
- The robust RF amplifier allows antenna-free switching for hours!
- Clean powerup and video switching
- CE certified
Barcodes? Barcodes!! (Patent pending)
VTx is capable of processing the camera image. So we taught him how to read barcodes! This means that the VTx no longer needs to be transmitted to set the channels and that the channel setting can be done in the pits. It also means there's no more guesswork about which channel the VTx is on, simply point it at your desired barcode and it will move to that channel or power level! There are many more exciting features coming with this technology, stay tuned and barcode!
Pitmode - made for racing
Zero interference even during startup, now it's a possibility! If you've ever repaired a quad during a race, you'll know the frustrations of not being able to turn on and test your system. With PitMode, we'll reduce the output power to the bare minimum (way below single-digit mW) so you can power up your quad and still see the picture! You have less than a meter of distance to put your quad through its paces before placing it on that starting grid. Using SmartAudio or CRSF, you can turn on VTx using your remote control!
Smartaudio V2.1 E CRSF - team race ready
SmartAudio technology provides UART control for the entire video transmitter. Parameters such as output power, bands, channels and frequency can be controlled freely. This allows remote control of channels directly from a smart device (TBS Crossfire, external bluetooth or wifi module required), from the radio (TBS Crossfire with TBS Tango or OpenTX compatible remote control) or from the OSD (e.g. Betaflight OSD , TBS CORE PRO ).
With all these options available, you should find something that fits your bill. Together with CleanSwitch, the sky is the limit… jump between channels without interfering with other pilots in the air, create backup/emergency frequencies, global VTx power adjustments by race organizers, or other intelligent systems aimed at simplifying and improving race management are now a possibility!
Cleanswitch-neighbor friendly
CleanSwitch is a technology developed by TBS that will ensure that your video transmitter is free of interference when turning on or changing channels. All current video transmitters pass over the entire band while turned on, often causing flickering and strong interference with anyone in the air, regardless of the video channel chosen. TBS CleanSwitch will allow you to turn on and change channels while your friends are in the air, without any external interference. CleanSwitch is race and racer friendly... that's how we like it at TBS :)
Specification
Working voltage: 3-13V
- Operating temperature: Check normal airflow
- Video input impedance: 75 Ohm
- Weight: 1g
- Dimensions: 15 x 13 x 2mm
- Antenna connector: u.FL socket
- Video Format: NTSC/PAL
- Output Power: 14dBm (25mW), 20dBm (100mW), 26dBm (400mW), 28dBm (500+mw)
Package Included
- 1x TBS UNIFY PRO32 5G8 video transmitter
- 1x Set of Silicone Wires (Pre-Tinned)
- 1x Linear Whip Antenna
- 1x heat shrink tube
Downloads
* HAM license is required for operation on HAM channels and HAM power levels! The VTx comes with only legal channels enabled, please consult the manual on the unlocking procedure.
