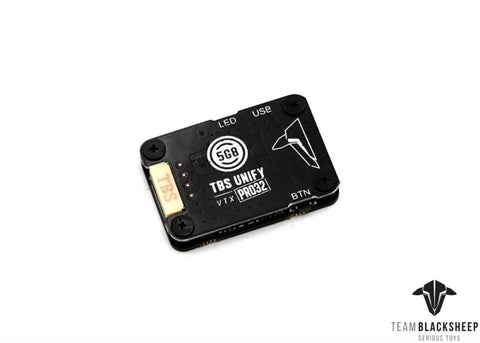

TBS UNIFY PRO32 HV (MMCX)
TBS UNIFY PRO32 HV is the most complete, future-proof, highest quality and overall vtx ever made.
TBS has done a great job with the vtx UNIFY PRO32 HV (MMCX) they have increased the power, improved the robustness, reduced the power consumption, added the capability of crazy functions and refined the way it is installed in the multirotor. In short, it is the most complete, future-proof, highest quality and overall VTx HV ever made.
Main features
- Double deck design for insane cooling and long life
- 1000mW or more output power
- Ultra clean transmission (up to 16 riders at once!)
- PitMode: Power up your quad during a race. Now with team racing capabilities!
- Easy OSD, FC and RC channel switching, with fallback button menu
- The robust RF amplifier allows for hours of antenna-free operation!
- Clean powerup and video switching
- CE Certificate
- Built-in microphone
Pitmode - Made for running
Zero interference even when powering up is now a possibility! If you’ve ever repaired a quad during a race, you’ll know the frustration of not being able to power up and test your system. With PitMode, we’ll reduce the output power to the bare minimum (well below single digit mW) to allow you to power up your quad and still see a picture! You have less than a meter away to put your quad through its paces before you put it on that starting grid. Using SmartAudio or CRSF, you can power up the VTx using your remote!
Smart audio v2.1 ecrsf-team race ready
SmartAudio technology provides UART control for the entire video transmitter. Parameters such as output power, bands, channels and frequency can be freely controlled. This allows remote control of the channels directly from a smart device (TBS Crossfire, external bluetooth or wifi module required), from the radio (TBS Crossfire with TBS Tango or OpenTX compatible remote control required) or from the OSD (e.g. Betaflight OSD, TBS CORE PRO).
With all these options available, you should find something that fits your bill. Together with CleanSwitch, the sky is the limit… channel hopping without interfering with other pilots in the air, creating backup/emergency frequencies, global VTx power adjustments by race organizers, or other clever systems aimed at simplifying and improving race management are now a possibility!
Cleanswitch-neighbor friendly
CleanSwitch is a technology developed by TBS that will ensure your video transmitter is interference free when powering up or changing channels. All current video transmitters switch over the entire band while powered up, often causing flickering and severe interference to everyone in the air, regardless of the video channel you choose. TBS CleanSwitch will allow you to power up and change channels while your friends are in the air, without any outside interference. CleanSwitch is race and racer friendly... that's how we like it at TBS :)
Specifications
Operating voltage : 6V - 25V (2 - 6S)
- Operating temperature: check normal air flow
- Video input impedance: 75 Ohm
- Weight: 8.7 g
- Dimensions: 37 x 25 x 5.8 mm
- Antenna Connector: MMCX
- Video Format: NTSC / PAL
- Output power: 14dBm(25mW), 20dBm(100mW), 26dBm(400mW), 30dBm+(1000mW+)
Package Included
- 1x TBS UNIFY PRO32 5G8 HV video transmitter
- 1x Silicone Cable (Pre-Tinned Ends)
- 1x MMCX to SMA pigtail
Download
- TBS UNIFY Pro32 Manual
- TBS UNIFY Pro32 Manual (German)
- Declaration of conformity
- A HAM license is required for operation on HAM channels and HAM power levels! VTx ships with only legal channels enabled, see manual for unlocking procedure.
![]()
VTX Tables
Scheme and![]()
TBS UNIFY PRO 32 electric
