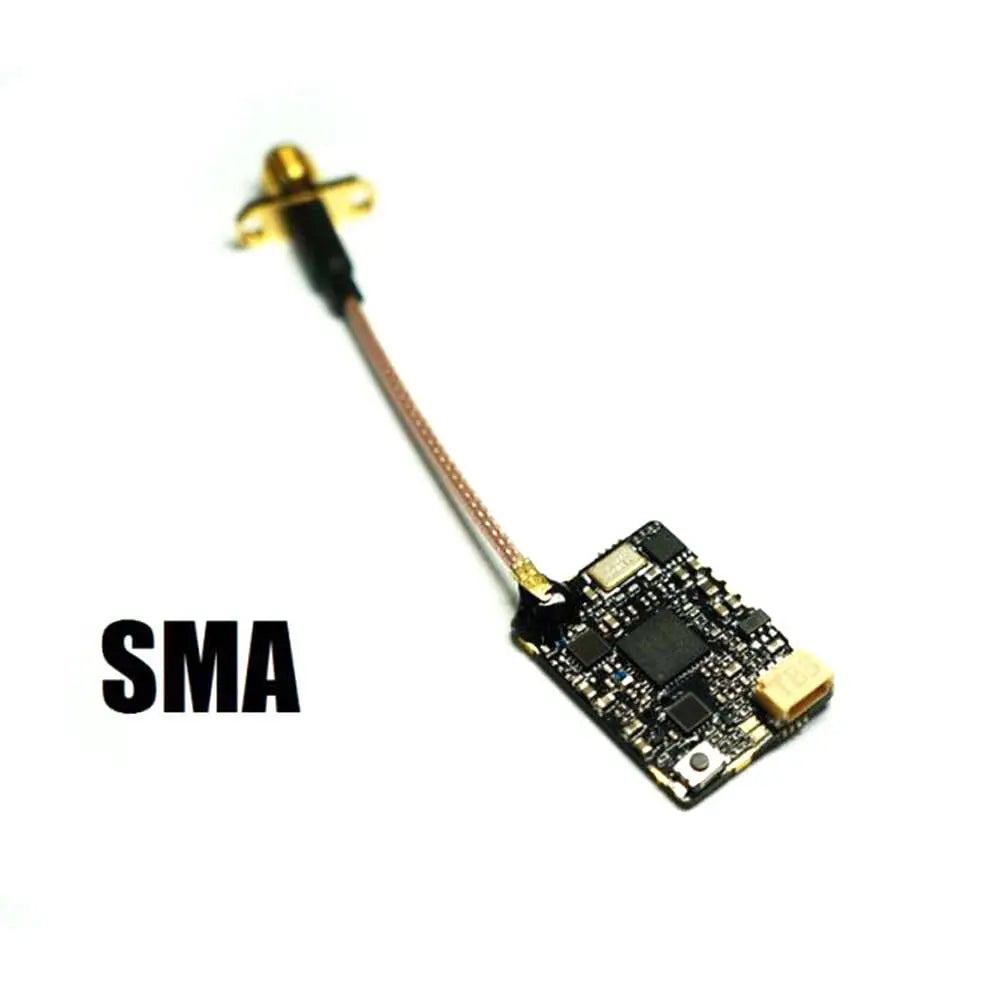

TBS Unify Pro 5G8 V3 (SMA)
TBS Unify Pro 5G8 V3 (SMA) is a video transmitter just for runners. 5g weight, 25-800mW output power (user adjustable). Reduce weight and fly far has never been so easy and convenient. Antenna Connector: SMA Female Socket
TBS Unify Pro 5G8 V3 (SMA)
The smallest and most powerful video transmitter (800mW!) the world has ever seen! It is race-ready with PitMode, super clean and interference-free power levels and connectivity to flight controllers and other means of quickly changing channels. It runs on a filtered 5V power supply, so it is perfect when connected to a TBS CORE PRO or TBS PowerCube (*)
What's New in V3
- Improved voltage spike acceptance from 6.5V max. on V2 to 13Vmax. on V3
Characteristics
- The smallest and lightest video transmitter on the market
- Up to 800mW output power
- Ultra clean transmission (up to 16 riders at once!)
- PitMode: Turn on your quad during a race
- Easy OSD, FC and RC channel switching, with fallback button menu
- The robust RF amplifier allows for hours of antenna-free operation!
- Clean start and video switching
- CE Certificate
Pitmode - made for running
No interference even when powered up, now it’s a possibility! If you’ve ever repaired a quad during a race, you’ll know the frustration of not being able to power up and test your system. With PitMode, we’ll reduce the output power to a bare minimum (well below single digit mW) and switch to frequencies unused by the race organizers, so you can power up your quad and still see the picture! You have a few meters of range to test your quad before you put it on that starting grid, and in combination with CleanSwitch, you can power it up as soon as your channel is available without interrupting any of the active channels.
Smartaudio V2 - complete control
SmartAudio technology provides UART and I2C control for the entire video transmitter. Parameters such as output power, bands, channels and frequency can be freely controlled. This allows remote control of the channel directly from a smart device (TBS Crossfire, external bluetooth module or wifi required), from your radio (TBS Crossfire with TBS Tango or OpenTX compatible remote required), or from the OSD (eg TBS CORE PRO). With all these options available, you should find something that fits your bill. Together with CleanSwitch, the sky is the limit... channel hopping without interfering with other pilots in the air, creating backup/emergency frequencies, global VTx power adjustments by race organizers or other clever systems aimed at streamlining and improving race management are now a possibility!
Cleanswltch: Neighbor's Friend
CleanSwitch is a technology developed by TBS that will ensure your video transmitter is interference free when powering up or changing channels. All current video transmitters cycle through the entire band while powered up, often causing flickering and heavy interference to anyone in the air, regardless of the video channel you choose. TBS CleanSwitch will allow you to power up and change channels while your friends are in the air, without any outside interference. CleanSwitch is race and racer friendly... that's how we like it at TBS :)
Say no! to dlpswitch
While learning the track was a fun mind game, in practice a single button or OSD controlled video transmitter is much easier to use. Gone are the days of video transmitter cards, stepping on people’s channels by mistake or a mismatch between your mask and the video transmitter frequencies.
Specifications
- Operating voltage: 4.5 - 5.5V.
- Supply current: 600mA
- Operating temperature: check normal air flow
- Audio carrier frequency: 6.5 MHz
- Video input impedance: 75 Ohm
- Weight: 5g (with SMA, without antenna)
- Dimensions: 18(H) x 25(W) x 4(D) mm
- Antenna Connector: SMA Female Socket with Screw Mounting Holes
- Video Format: NTSC / PAL
- Output power: 13dBm(25mW), 23dBm(200mW), 27dBm(500mW), 29dBm(800mW*)
Package Included
- TBS UNIFY 5G8 Video Transmitter
- 5V Video Transmitter Pigtail Cable
DOWNLOAD
- TBS UNIFY Pro Manual
- TBS UNIFY Pro Manual (German)
- CE Certification
- Declaration of conformity
- VTX Table for Betaflight
- HAM license is required for operation on HAM channels and HAM power levels! The VTx ships with only legal channels enabled, see manual for unlocking procedure.
VTX Tables
