TBS UNIFY PRO 5G8 HV (SMA)
TBS UNIFY PRO 5G8 HV (SMA) new version is 6S compatible, with 5V output for your FPV camera. Fully compatible with SmartAudio – additional features include TBS CleanSwitch and TBS PitMode. Antenna connector: SMA female socket

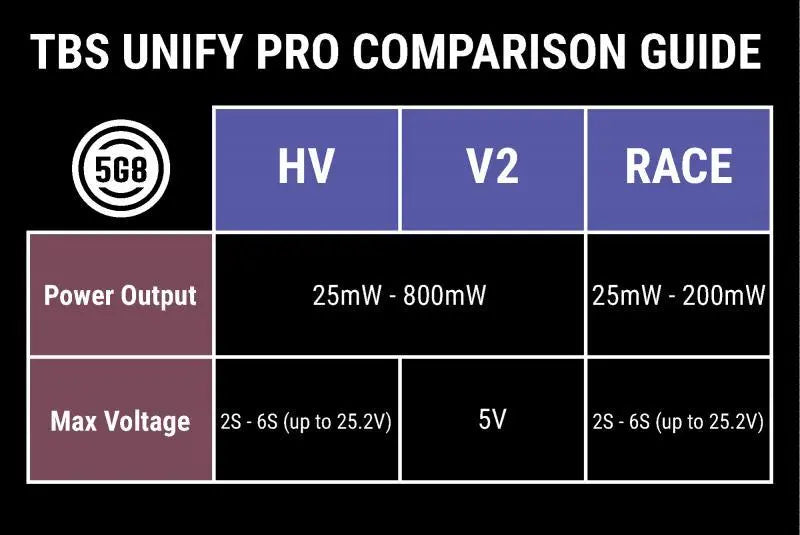

The most popular and powerful video transmitter on the market just got a “bigger” brother. It can be connected directly to up to 6S of dead battery and can output 5V to your camera. It will filter the power and make sure you get clean video, even without being connected to a TBS CORE or TBS PowerCube. With a brand new active output power monitor, we ensure you always meet the requirements of the race, while giving you the best possible image.

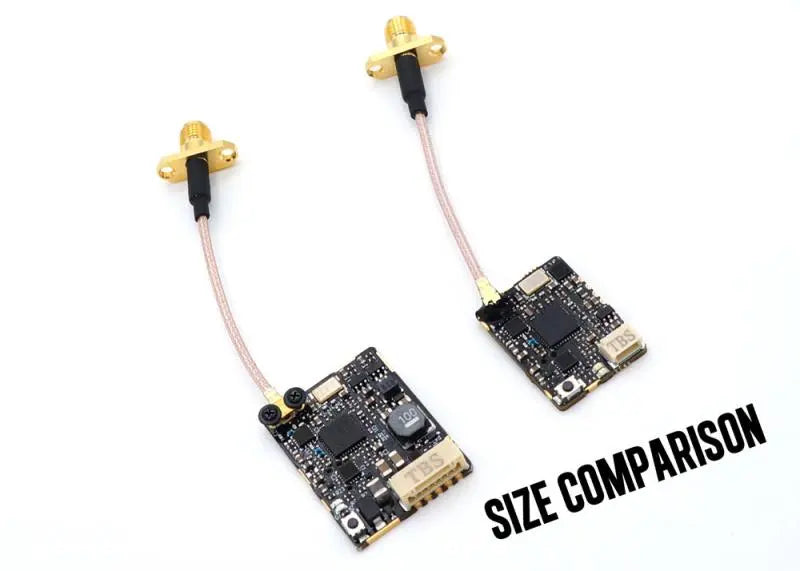

At just 7g and a 31x22x6mm form factor, your quad will barely notice it’s there. Adjustable output power from 25mW to 800mW lets you race friends and penetrate concrete with the push of a button. 40CH coverage gives you the freedom to fly any race without having to resort to video transmitter swapping practices (*).
Pitmode - Made for running
Zero interference even when powering up is now a possibility! If you have ever repaired a quad during a race, you will know the frustration of not being able to power up and test your system. With PitMode, we will reduce the output power to the bare minimum (well below single digit mW) and move to frequencies not used by race organizers, so you can power up your quad and still see the image! You have a few meters of range to test your quad before you put it on that starting grid and in combination with CleanSwitch you can power it up as soon as your channel is available without interrupting any of the active channels.
Smartaudio-complete control
SmartAudio technology provides UART and I2C control for the entire video transmitter. Parameters such as output power, bands, channels and frequency can be freely controlled. This allows remote control of channels directly from a smart device (TBS Crossfire, external bluetooth or wifi module required), from the radio (TBS Crossfire with TBS Tango or OpenTX compatible remote required) or from the OSD (e.g. TBS CORE PRO). With all these options available, you should find something that fits your bill. Together with CleanSwitch, the sky is the limit... channel hopping without interfering with other pilots in the air, creating backup/emergency frequencies, global VTx power adjustments by race organizers or other intelligent systems aimed at simplifying and improving race management are now a possibility!
Cleanswitch-neighbor friendly
CleanSwitch is a technology developed by TBS that will ensure your video transmitter is interference free when powering up or changing channels. All current video transmitters switch over the entire band while powered up, often causing flickering and severe interference to everyone in the air, regardless of the video channel you choose. TBS CleanSwitch will allow you to power up and change channels while your friends are in the air, without any outside interference. CleanSwitch is race and racer friendly... that's how we like it at TBS :)
Say no! to dipswitches
While binary learning was a fun mind game, in practice a single button or OSD controlled video transmitter is much easier to use. Gone are the days of video transmitter cards stepping on people's channels by mistake or a mismatch between the mask frequency and the video transmitter frequency.
Specifications
- Operating voltage: 2S - 6S
- Supply current: up to 600mA
- Operating temperature: check normal air flow
- Audio carrier frequency: 6.5 MHz
- Video input impedance: 75 Ohm
- Weight: 7g (with SMA, without antenna)
- Input Connector: JST GH 7pin (after July 2018)

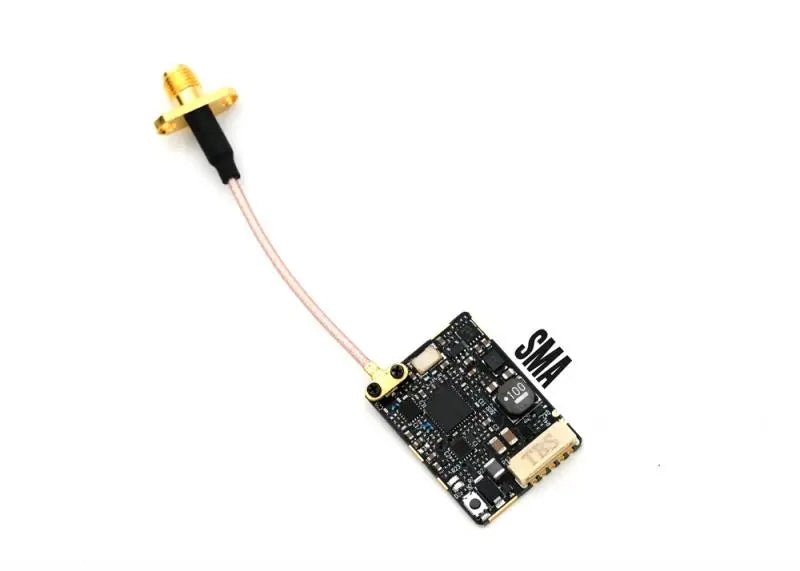

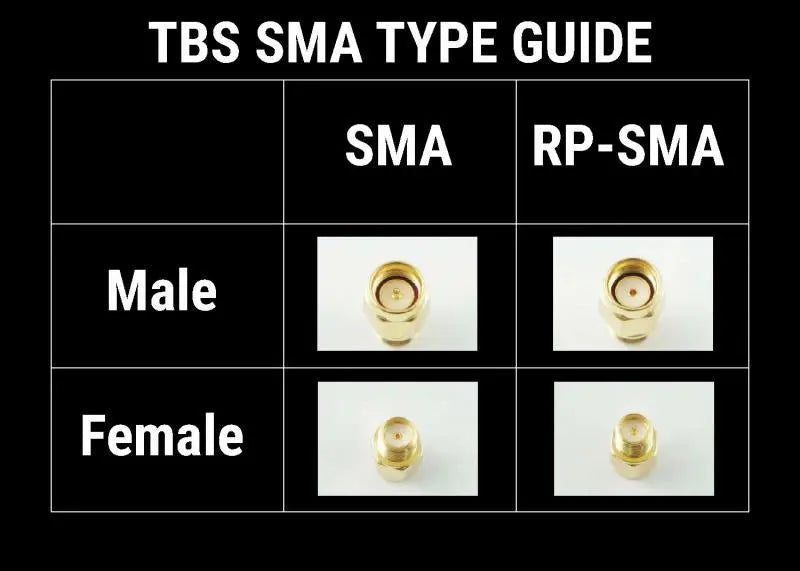

- Antenna connector: SMA female socket with screw mounting holes
- Video Format: NTSC / PAL
- Output power: 13dBm(25mW), 23dBm(200mW), 27dBm(500mW), 29dBm(800mW*)

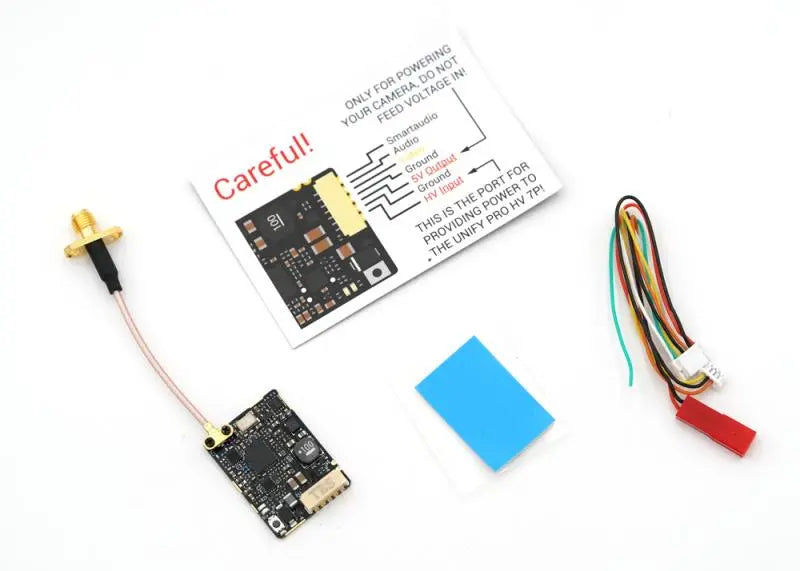

Package Included
- TBS UNIFY PRO 5G8 HV video transmitter
- Video Transmitter / Camera / Power Cable
DOWNLOAD
A HAM license is required for operation on HAM channels and HAM power levels! The VTx ships with only legal channels enabled, see the manual for unlocking procedure.
VTX Tables
