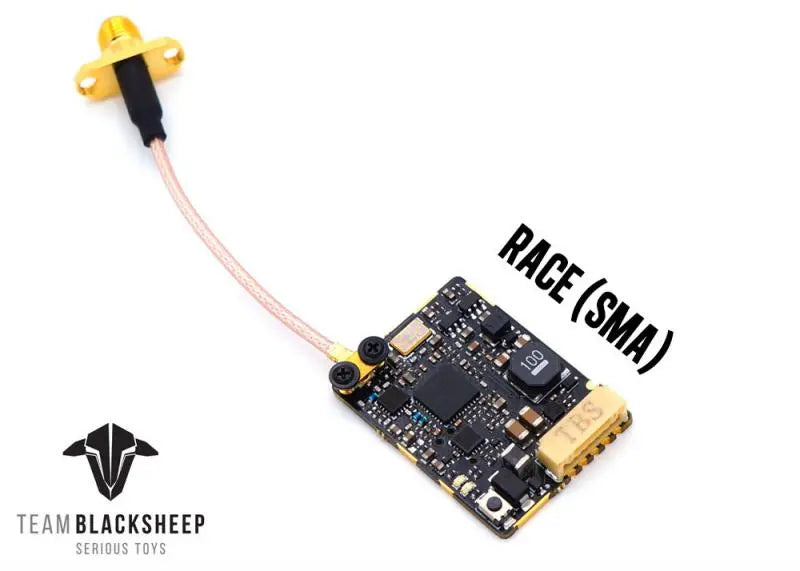

TBS UNIFY PRO 5G8 HV - RACE (SMA)
The smallest and lightest 40ch video transmitter on the market, down to the bare minimum for FPV racing, at a very attractive price
Characteristics
- Smallest and lightest video transmitter on the market
- 2-6S input power supported
- Power settings 25mW / 200mW
- Ultra clean transmission (up to 16 riders at once!)
- PitMode: Turn on the quad during a race
- Easy OSD, FC and RC channel switching, with fallback button menu
- The robust RF amplifier allows for hours of antenna-free operation!
- Clean powerup and video switching
- CE Certificate
Pitmode - Made for running
Zero interference even when powering up is now a possibility! If you have ever repaired a quad during a race, you will know the frustration of not being able to power up and test your system. With PitMode, we will reduce the output power to the bare minimum (well below single digit mW) and move to frequencies not used by race organizers, so you can power up your quad and still see the image! You have a few meters of range to really put your quad through its paces before you put it on that starting grid and in combination with CleanSwitch you can power it up as soon as your channel is available without interrupting any of the active channels.
Smartaudio V2 - complete control
SmartAudio technology provides UART and I2C control for the entire video transmitter. Parameters such as output power, bands, channels and frequency can be freely controlled. This allows remote channel control directly from a smart device (TBS Crossfire, external bluetooth module or wifi required), from the radio (TBS Crossfire with TBS Tango or OpenTX compatible remote required) or from the OSD (e.g. TBS CORE PRO). With all these options available, you should find something that fits your bill. Together with CleanSwitch, the sky is the limit... channel hopping without interfering with other pilots in the air, creating backup/emergency frequencies, global VTx power adjustments by race organizers or other intelligent systems aimed at simplifying and improving race management are now a possibility!
Cleanswitch - Neighbor friendly
CleanSwitch is a technology developed by TBS that will ensure your video transmitter is interference free when powering up or changing channels. All current video transmitters switch over the entire band while powered up, often causing flickering and severe interference to everyone in the air, regardless of the video channel you choose. TBS CleanSwitch will allow you to power up and change channels while your friends are in the air, without any outside interference. CleanSwitch is race and racer friendly... that's how we like it at TBS :)
Say No! To Dipswitches
While binary learning was a fun mind game, in practice a single button or OSD controlled video transmitter is much easier to use. Gone are the days of video transmitter cards stepping on people's channels by mistake or a mismatch between the mask frequency and the video transmitter frequency.
Specifications
- Operating voltage: 2S - 6S
- Supply current: 600 mA
- Operating temperature: check normal air flow
- Audio carrier frequency: 6.5 MHz
- Video input impedance: 75 Ohm
- Weight: 7g (with SMA, without antenna)
- Input Connector: JST GH 7pin (after July 2018)
- Antenna Connector: SMA Female Socket with Screw Mounting Holes, U.FL to VTx
- Video Format: NTSC / PAL
- Output power: 13dBm (25mW), 23dBm (200mW)
Package Included
- TBS UNIFY 5G8 Video Transmitter
- Video transmitter pigtail cable
DOWNLOAD
* HAM license required for operation on HAM channels and HAM power levels! The VTx ships with only legal channels enabled, see manual for unlocking procedure.
