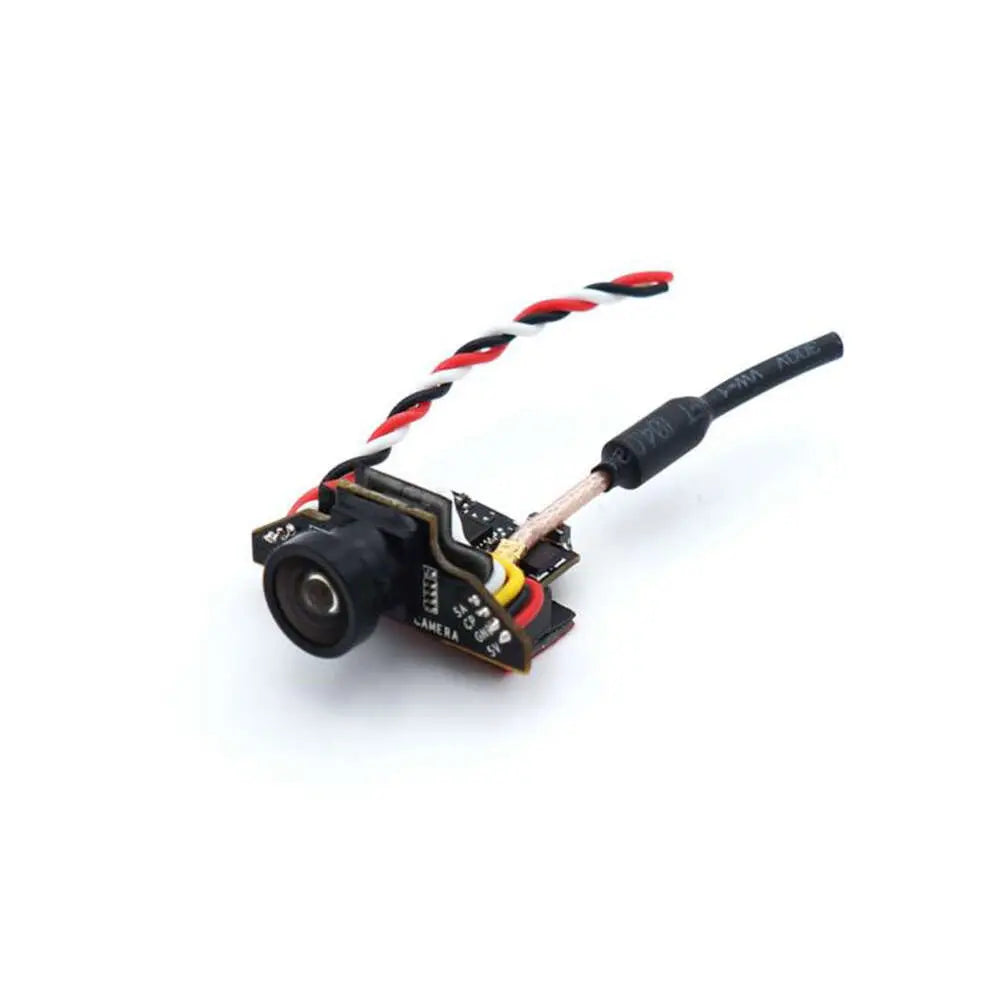

TBS Unify Nano and Tinycam combo
The TBS Unify Nano + TinyCam Combo is ready to use right out of the box, just solder Power, GND and Smart Audio and you're ready to rock!
*If you don't need Smart Audio, you can simply remove the white wires
VTX
| Model | TBS Unify Pro Nano 5G8 |
| Input voltage | 4.5V - 5V |
| Power Levels | 25mW/50mW |
| Interface | SmartAudio and capacitive button (or separately soldered external tactile button - included!) |
| Antenna connector | u.FL (updated) |
| TBS Tech | Smart audio, clean switch |
Camera
| Model | TBS Tiny Camera |
| Power supply | 3.7-5V |
| Intelligent audio | Smart audio switching |
| Resolution | 700TVL |
| FOV | 120 degrees |
| Video format | NTSC |
| Mini lighting | 1.0 lux |
Specifications
| The weight | 4g (including antenna) |
| Size | 28mm (L) x 29mm (W) x 14mm (H) (excluding antenna) |
Package Included
1x Tinycam and VTX Camera
