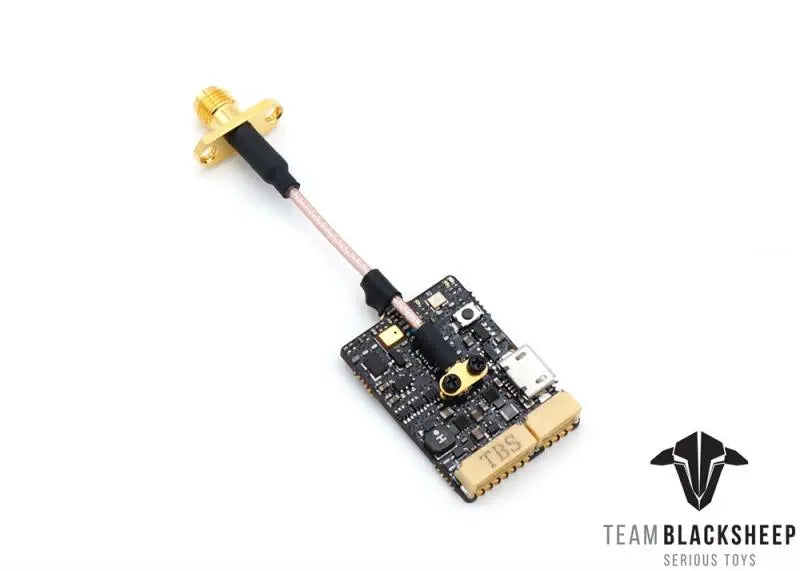

Introducing the latest technology in TBS video transmitters! Comes with a built-in graphical OSD and microphone, talks all protocols and transmits all power levels!
THE SWISS ARMY KNIFE OF VIDEO TRANSMITTERS
The TBS UNIFY EVO has all the functionality you can have in the smallest possible form. When Team blaacksheep set out to make this video transmitter, they were looking to make something that could fit every use case for analog video transmitters ever imagined. Long range, racing, freestyle. Other features are still in development and can be uploaded via TBS AgentX with the integrated USB port.
This makes it a perfect companion for any situation where you don't have any OSD or want to benefit from the simplicity and clarity that the TBS OSD is known for.
BARCODES? BARCODES !! (PATENT PENDING)
The TBS UNIFY EVO is able to process the camera image. Then the engineers from the blacksheeep team taught him to read barcodes! This means that VTx no longer needs to be transmitted to set channels and that channel setting can be done in the pits. It also means there's no more guesswork about what channel the VTx is on, just point it at the barcode of your choice and it will move to that channel or power level! There are many more exciting features coming with this technology, stay tuned and barcode!
CRSF, SMARTAUDIO 2.1, PWM, PITMODE
CRSF is the defacto standard in FPV and racing drones, so it makes sense that this video transmitter is both capable of understanding and speaking CRSF. For compatibility reasons, VTx also speaks of SA 2.1 and has the pitmode function suitable for teamrace. PWM controls allow you to use VTx with any radio and product. For example, you may have it on your R/C cars, R/C motorcycles, or other devices that don't have flight or Crossfire controllers and control the VTx button with a switch or button you have on the radio.
SPECIFICATIONS
- Operating voltage: 6V - 26V (2S - 6S)
- Supply current: (25mW) ~ 0.11A | (100mW) ~ 0.13A | (400mW) ~ 0.18A | (full power) ~0.24A
- Operating temperature: Check normal airflow
- Video input impedance: 75 Ohm
- Weight: 7g
- Dimensions: 30 x 23 x 5.5 mm
- Antenna connector: u.FL socket
- Video Format: NTSC/PAL
- Audio: microphone included
- Output Power: 14dBm (25mW), 20dBm (100mW), 26dBm (400mW), 29dBm (800mW)
PACKAGE INCLUDED
- 1x TBS UNIFY EVO 5G8 video transmitter
- 1x pinecone u.FL SMA
- 1x power, camera and CRSF cables
DOWNLOAD
THIRD PARTY APPS
* HAM license is required for operation on HAM channels and HAM power levels! VTx comes with only legal channels enabled, please consult the manual on the unlocking procedure.
