What could be better than a Tracer receiver and an improved Unify Pro32 video transmitter making love? Exactly! Nothing, absolutely nothing.

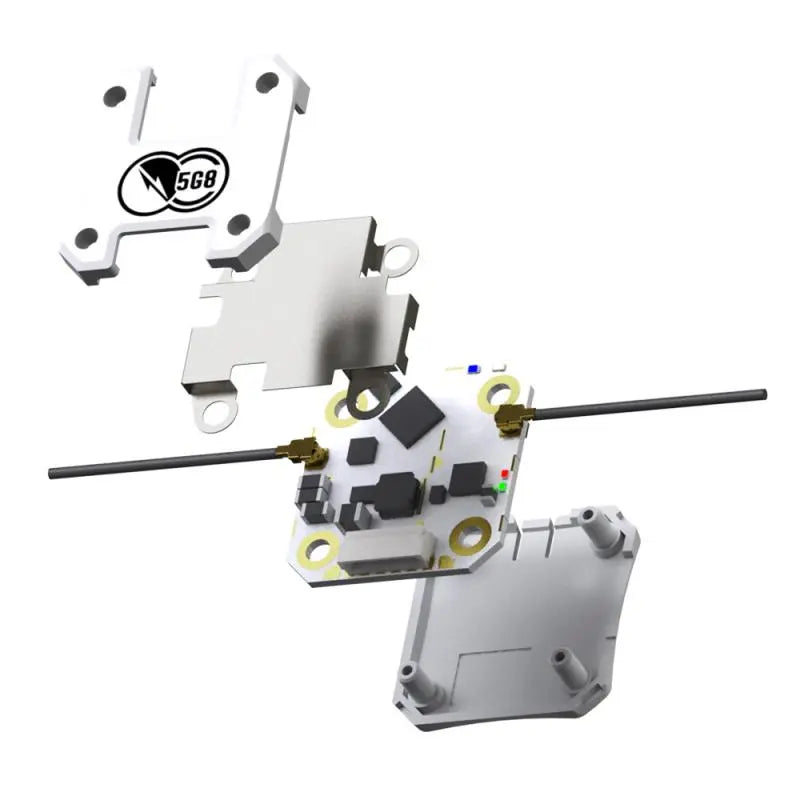

Introducing the TBS Tracer Sixty9, a VTx board and AIO receiver that sports a race-ready, long-range video transmitter combined with the same on the TBS Tracer side. Mounting holes are 20x20, but include two adapters for 30x30 stacks and a plastic case to mount the unit to the chassis, with no stacking required.
Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to the flight controller and camera (or even FC for those who like FC-OSD).
Characteristics:
Integrated video transmitter control with long range and race (team) functions
Dedicated low-noise power supply for video receiver and transmitter
Elegant 20x20 mounting form factor
Plug&play connection and solder pad connectivity
3 different mounting flavors, RF tin shields and other accessories included
High power adjustable analog video transmitter (up to 1W with perfect cooling)
Bulti-in 5V regulator, takes up to 6S
SPECIFICATIONS
Weight: 4.1 g (board only)
Antenna Ports: 1x Video Transmitter, 1x R/C Receiver
Size: 24mm x 24mm
Requires: Firmware V5.62 and above
CRSF V3 ready
Input voltage: 6V - 25V (2-6S)
Package Included:
1x TBS Sixty9 tracer
1x TBS Tracer Immortal-T antenna
1x u.FL to SMA holder (for VTx)
1x 30x30 heatsink/case
1x 20x20 heatsink/case
1x optional tin shield (for increased noise tolerance)
1x JST-SH x 9 connector
DOWNLOAD
TBS Tracer - Declaration of conformity RED
TBS Tracer Manual
