Description

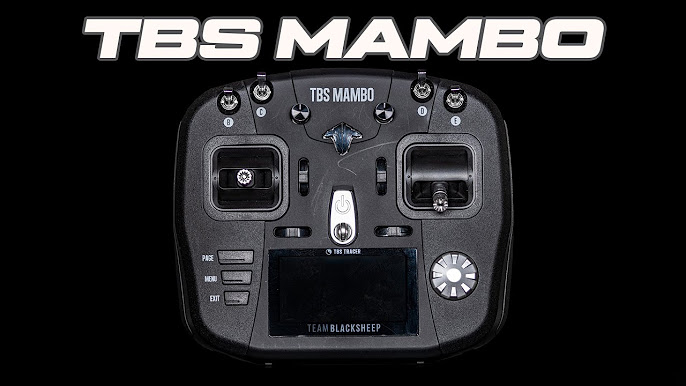

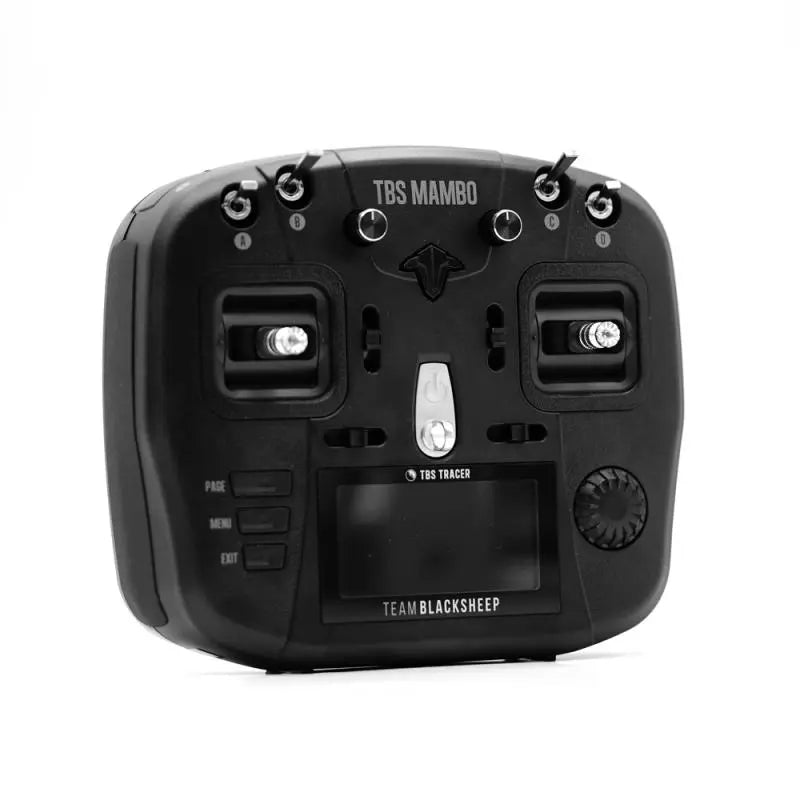

TBS MAMBO - RC FPV Radio Controller
The TBS Mambo follows in the footsteps of the Tango 2, but sets a new goal: larger screen, traditional form factor with switches and potentiometers, JR module slot, replaceable batteries and trim buttons!
Renowned FPV brand Team BlackSheep has redefined the portable remote control with the TBS Tango 2. Now we are back with one of the most popular requests: a compact, full-sized remote control!
The TBS Mambo follows in its footsteps, but focuses on all the things the Tango 2 tries not to have: a larger screen, traditional form factor with switches and potentiometers, JR module bay, replaceable batteries, and trim buttons!
But fear not: we didn't make a cookie cutter remote! With the built-in antenna (external antenna available as an optional add-on), 2-position and momentary gamepad buttons, and built-in TBS Tracer, we've created some "firsts" that put this radio in a class of its own!
TBS Tracer full
The first radio with TBS Tracer built in. And it fits your existing TBS Crossfire module through the JR housing! TBS Tracer is the world’s lowest latency radio link and builds on the solid reputation of the TBS Crossfire code base. As the TBS ecosystem continues to develop and expand, pilots will remain at the forefront of capabilities paired with the ease of use and overall ruggedness that TBS products are known for.
- 1.6ms end-to-end latency
- 250Hz refresh rate
- Long range capability
- High telemetry throughput for Mavlink and long-range missions
- TBS Cloud Connectivity
Characteristics
- Integrated TBS Tracer
- CRSF V3 protocol support for the lowest latency and most direct response of any remote available
- Range up to 25km / 15 miles
- Built-in antenna for maximum robustness
- External antenna available as an add-on
- Standard size Hall sensor gimbals with ball bearings
- Configurable resistance and voltage
- Adjustable throttle and pitch (+/- 10 degrees)
- Replacement spring set included for less tension
- Ergonomic shell design with grippy rubber edges
- 4 x 3-position switches
- 2 potentiometers with central notch
- 1x 2-position switches
- 1x Momentary button
- 4x digital trim buttons
- Perfectly balanced lanyard holder
- Up to 12 channels supported
- Parallel 18650 x 2 (not included!) with USB-C 2A charging (2.5 hours for full charge)
- Voice audio output with audio jack and tactile vibration alert
- Open Source Remote Control Operating System (FreedomTX, temporary fork of OpenTX)
- Rocker switch and 3-button menu for super-easy navigation
- High resolution (128*64) black and white LCD screen with backlight
- Over 100 memory models with SD card included
- Compatible with TBS Cloud
Specifications
- Weight: 565 g
- Battery: 2x18650
- Audio: 1W speaker and 3.5mm headphone jack
- Display: 3.5" LCD panel (128 x 64)
- Antenna: Built-in antenna
- Switches: 4 x 3 position | 1 x 2 position | 1 x momentary
- USB-C port: Battery charging (5V, 1A), firmware updates and simulator/HID
Recommended Parts
Package Included
- 1x TBS Mambo Remote Control
- 1x set of springs (low tension)
- 2x Throttle limit screws (with Allen key)
