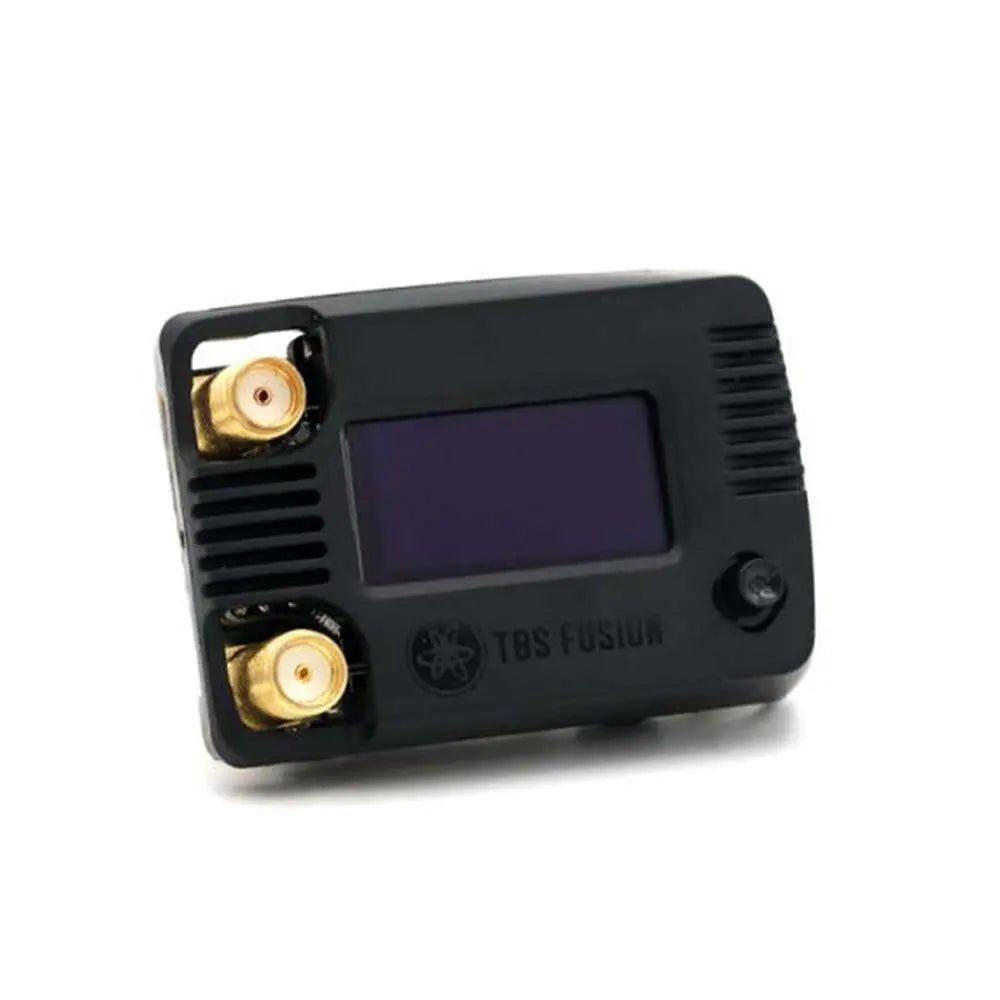

TBS Fusion
The TBS Fusion is an enhanced analog video receiver module with OSD overlay and Crossfire connectivity capabilities.
TBS Fusion: Image processing developed by BrainFPV, OSD and UI by Achilles, and hardware designed and manufactured by TBS. When the brightest minds in the FPV industry work together, being the best at merging two analog video streams just isn't good enough!
Through active video fusion, the displayed video immediately has less interruptions and more range, without color degradation or video desynchronization often found at the edge of reception. A cutting-edge OSD engine drives cutting-edge interactivity, while reducing the need for on-board OSD. TBS Fusion raises the bar for reception quality and paves the way for system-level integration with TBS Crossfire and other devices.
Simply put, TBS Fusion has a longer range, better signal indoors or in other critical environments, and maximum compatibility with the Crossfire radio link. The included stopwatch and spectator modes to stay in freestyle or race events are an added bonus!
Crossfire integration
Crossfire integration promises a seamless user experience for any FPV pilot. Phase one will see synced VRx/VTx channel changes and the ability to change any CRSF device settings via the goggles (Crossfire, Unify Pro/Pro32, compatible flight controllers, etc.). Phase two will add interactivity on a level never seen before. Exciting times are ahead, and in typical TBS fashion, the hardware is already built to be compatible with future software updates and future products.
Download
- TBS Fusion Manual
- TBS Fusion Manual - German
- Fusion Cover for Orqa (designed by ChillerFPV)
- Fusion Cover #2 for Orqa (designed by Arkimedes)
- TBS Cloud - Wifi Firmware
Product Specifications
- Compatibility: Fatshark Dominator V1, V2, V3, HD1, HD2, HD3, HDO
- External Power Kit: Included. Required for older glasses that cannot provide enough power or for connectivity
- RF Sensitivity: -96dBm
- Power: 5V @ 340mA, 500mAh with connectivity enabled
- Fatshark Attitude Compatibility: Will require cutting the plastic case of the glasses to fit
- Update with: TBS Agent X V2.0.21 or later
- Collaboration with: BrainFPV (video fusion), AchillesFPV (UI), TBS (hardware)
Package Included
- 1 x TBS Fusion Module
- 1 x Cover and button (black)
- 1 x Power Mod PCB
- 2 x Power Mod Ribbon Cable
- 1 x SMA 90d adapter
