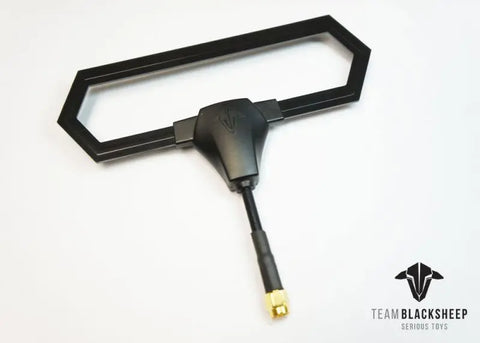

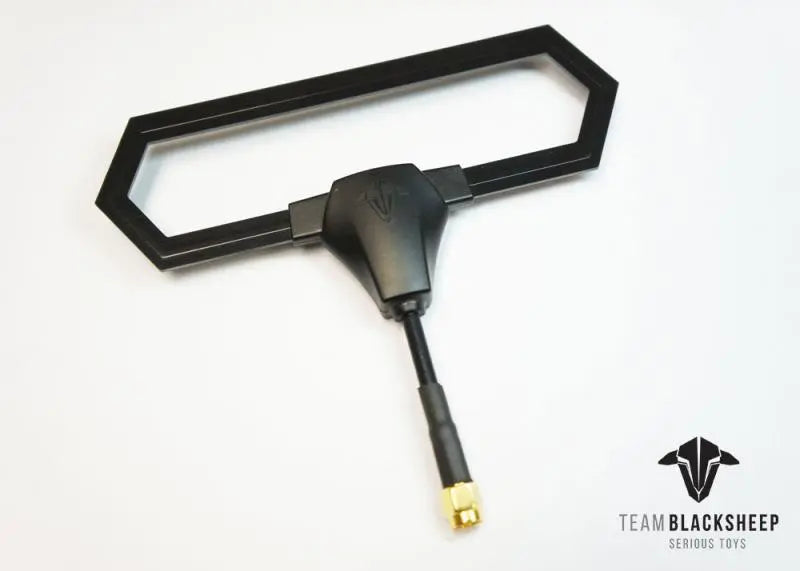

A slightly directional antenna for best signal penetration. Built ultra-tough using lessons learned from TBS Triumph and designed by none other than IBCrazy!
The crossfire TX antenna to rule them all!
Antenna orientation, wear and non-directionality have been the source of some range issues with our long range pilots and miniquads. We then sat down with IBCrazy and designed this antenna to be as durable as possible. A diamond lasts forever!
More reach
With slight directionality to give you more autonomy when flying in front of you, but still maintains a solid bond when flying behind you. The antenna uses the terrain you are standing on to reflect and therefore boost the signal beyond what traditional antennas can handle.
From the man himself
"The story behind the Diamond antenna:
Some pilots were experiencing dropouts at what appeared to be random times. I studied 4 cases and found that all the dropouts were all occurring in the same relative azimuth. it was evident that the conductive terrain was causing a null between the 0-5 and 15-20 degree azimuth. This wasn't a Crossfire problem at all! I had a problem with the terrain they were on!
To solve this problem, I designed an antenna that would not only resist ground effect, but would track along the terrain for low-altitude flying. To do this, a balanced closed-loop structure was needed. The result was the TBS Diamond antenna."
- Alex "IBCrazy" Greve, December 9, 2017`
Technical specifications
- Connector: SMA male
- Weight: 20.6g
- Dimensions: 135 x 120 mm
- Gain: 2.88 dB
- Frequency: 850 - 950 MHz
- Recommended for: TBS Crossfire TX or TBS Crossfire Micro TX
Designed and produced in collaboration with Video Aerial Systems, IBCrazy.
