TBS CROSSFIRE is a long-range R/C link based on the latest RF technology, capable of self-healing two-way communications, ultra-low latency and range beyond comprehension.
A new era of connectivity

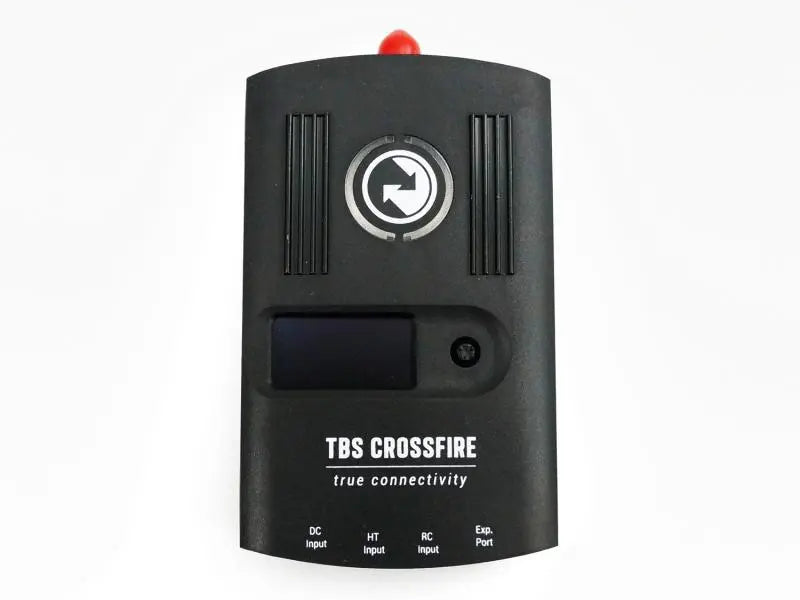

TBS CROSSFIRE TX is a long-range R/C link based on the latest RF technology, capable of self-healing two-way communications and going beyond understanding. With -130dB sensitivity, full RF side diveristy, small receivers for quad FPV, TBS CROSSFIRE contains the most modern technology to provide a superior long-range control link.
Remote control links, however, have a much more than extensive task. Latency, telemetry, robustness against interference, connectivity with smart devices, ease of use and overall finish are too often sacrificed for that last bit of range. The Crossfire has a wide range and uses that margin for additional functionality and reliability. A bright future for FPV is upon us :)
Developed by experts
The BlackSheep team was famous for long-range records, close to ground flying in the Alps and deep urban operations. During our many missions around the world we have collected a list of requirements and found that no existing system can satisfy them all. So we embarked on a long and painful journey to develop an RC link system entirely from scratch, putting it through its paces for over a year to ensure reliability and cutting-edge functionality.
Via the OLED display on the transmitter, you can monitor the real-time position of your drone (TBS GPS or BlackBox with DJI Naza or APM-based GPS required). The uplink and downlink status offers a feeling of security, the configuration options via the OLED display eliminate any PC-based configuration tool. The pulsed LED transmits the link budget and link status in colored form (green = continuous, orange = rotates around). In the event of a crash, the drone's position is also visible on the OLED. The built-in battery on the receiver automatically turns it into a beacon and will continue to transmit its last known position until the battery runs out.
It just works
Besides the unmatched range, the thing we're most proud of about TBS CROSSFIRE is that it works. In the past, our question was always "can our R/C link keep up?". With TBS CROSSFIRE comes to mind. But don't take our word for it. All major drone racing organizers require pilots to fly the TBS Crossfire. All the best drone pilots fly the TBS Crossfire. Farther long-range missions are flown with TBS Crossfire. This is the long-range connection everyone has been waiting for!
Telemetry/Crsf
Like a modern R/C link, it has integrated telemetry. Two-way communication opens up new possibilities. From streaming MAVLink to your smart device, updating firmware, setting the video transmitter channel, or adjusting flight control parameters like PIDs. Adaptive bandwidth controls the throughput or optimizes for maximum range. CRSF is a proprietary TBS communication protocol between Crossfire and R/C and Flight Control. It provides ultra-low latency with incredible bandwidth (3x faster, 6x more data than any comparable protocol!). With tight integration, TBS Crossfire is the logical choice for anyone flying on Betaflight, KiSS or ArduPilot/Pixhawk platforms.
DOWNLOAD
- TBS Crossfire TX Manual
- TBS Crossfire Manual (German)
- TBS Agent X (for software updates)
- The latest OpenTX LUT scripts for Crossfire
Characteristics
- Long-range, adaptive and robust remote control system for your aircraft
- Immune to onboard noise
- Two-way communication link with vital links and real-time telemetry
- Self-healing and frequency hopping (DSSS, FHSS)
- Adaptive bandwidth control and range optimization
- Serial modem capable of transmitting MAVLink or other serial protocols (up & downlink)
- RX beacon mode to recover downed aircraft
- Super easy binding and setup via built-in display
- Low latency, 150Hz refresh rate (3 times faster than normal RC links) for perfect immersion feeling
- Two receiver models: 8ch Diversity Rx, 4ch PPM/SBUS Mini-receiver (weight 4g!)
- 8 or 12 channel output via PPM/SBUS/CRSF on both receivers
- Ability to fly with multiple friends at the same time (10 or more)
- Selectable RF power from 10mW to 2W (local restrictions apply)
- Dedicated head tracking input option for full FPV immersion
- Transmitter LED shows link status, OLED display for built-in configuration
- Short-range mobile connectivity telemetry output for smartphone apps
- Fully configurable from OpenTX and TBS TANGO remote via CRSF protocol
- CRSF protocol interface for Betaflight, Kiss and Raceflight FC (lower latency, higher refresh rate, telemetry support)
- Expansion port to support future features
- Micro-receiver for smaller drones. Smaller than you think!
- Software updates via RF Link
Technical specifications
- Frequency bands: 868 MHz (EU, Russia) / 915 MHz (USA, Asia, Australia)
- Input Voltage: 3.5 - 13V
- Power Consumption: 1.1W (@ 10mW) - 3.2W (@ 2000mW)
- Dimensions: 55 x 89 x 15mm
- Weight: 76g
Package Included
- TBS Crossfire TX transmitter
- JR TBS Crossfire adapter
- TBS Crossfire Stock Tx Antenna V2
- Futaba Crossfire cable
- Crossfire Graupner / Spektrum cable
- PWM Crossfire braid
- Crossstire cable from JST to XT30
