The Crossfire module has been reduced to its pure essence for long distances up to 40km and for FPV racers who need extremely low latency.

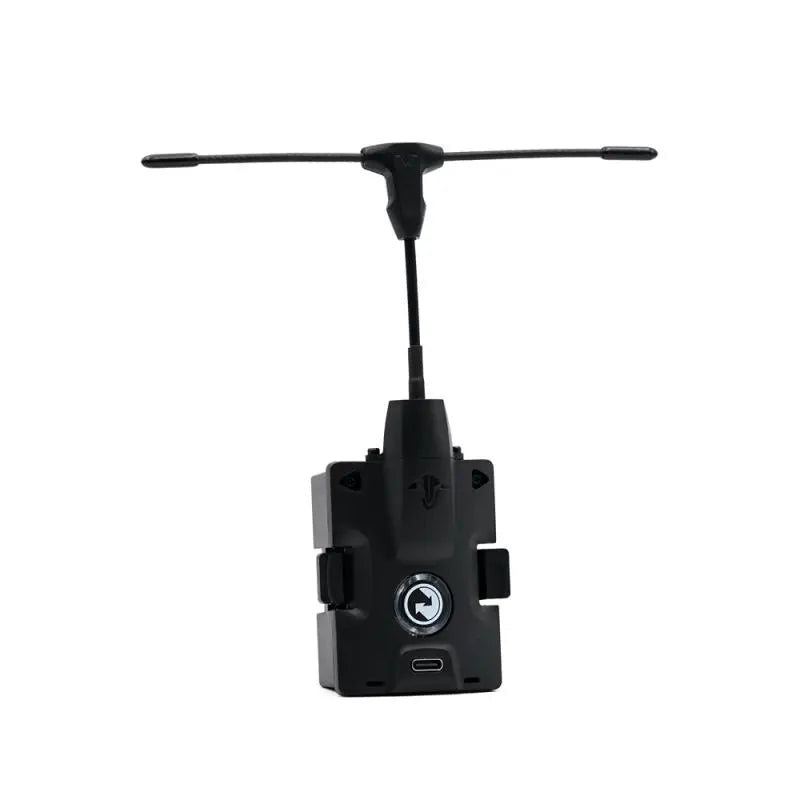

TBS CROSSFIRE MICRO TX V2
A new era of connectivity
The TBS CROSSFIRE is a long-range R/C link based on the latest RF technology, capable of self-healing two-way communications and going beyond comprehension. With -130dB sensitivity, full RF side deviation, tiny quad FPV receivers, the TBS CROSSFIRE contains the latest technology to provide a superior long-range control link.
Remote control links, however, do more than just reach. Latency, telemetry, robustness against interference, ease of use and overall finish are too often sacrificed for that last bit of battery life. The Crossfire has a wide range and uses that headroom for additional functionality and reliability. A bright future awaits us for FPV :)
Reduced to simplicity
The Crossfire Micro TX borrows core technology from its bigger brother, but is a simplified JR module transmitter for the most sought-after features, at an incredible price! For people looking to do extreme long range flights beyond 15-20km, the Crossfire TX is still the way to go. For anyone who wants to penetrate buildings, fly mini quads or simply explore their surroundings a few kilometers away, the Micro TX is the perfect companion. It will still go up to 40km, just like its bigger brother. But it costs less than half the price.
It just works
Aside from unprecedented range, the thing we're most proud of about TBS CROSSFIRE is that it works. In the past, our question was always "could our R/C link keep up?". With TBS CROSSFIRE comes peace of mind. But don't take our word for it. All major drone racing organizers require pilots to fly the TBS Crossfire. All the best drone pilots fly the TBS Crossfire. Farther long-range missions are flown with TBS Crossfire. It has now become accessible to the masses as a general purpose radio link!
Rangefinders/ CRSF
Being a modern R/C link, it has built-in telemetry. Two-way communication opens up new possibilities. From streaming MAVLink to your smart device (no Mavlink streaming support for Crossfire Micro TX!), to updating the firmware, setting the video transmitter channel, or adjusting flight control parameters like PIDs. Adaptive bandwidth controls the throughput or optimizes for maximum range. CRSF is a proprietary TBS communication protocol between Crossfire and R/C and Flight Control. It provides extremely low latency with incredible bandwidth (3x faster, 6x more data than any comparable protocol!). With such tight integration, the TBS Crossfire is the logical choice for anyone using Betaflight, KiSS or ArduPilot/Pixhawk platforms.
DOWNLOAD
- TBS Crossfire Manual
- TBS Crossfire Manual (German)
- TBS Crossfire Micro TX Quick Start Guide
- TBS Agent X (for software updates)
- Latest OpenTX LUA scripts for Crossfire
- TBS Cloud - Wi-Fi Firmware
- TBS Cloud - Crossfire and Mavlink Over Wifi
- OpenTX Nightly Firmware (Updated - August 25, 2020)
Product features
Long-range, adaptive and robust remote control system for your aircraft
- Immune to onboard noise
- Two-way communication link with real-time link vital data and telemetry
- Self-healing and frequency hopping (DSSS, FHSS)
- Adaptive bandwidth control and range optimization
- Super easy binding and setup via your R/C's built-in display
- Low latency, 150Hz refresh rate (3x faster than typical RC links) for a perfect immersive feeling
- Two receiver models: 8-port Diversity Rx, 4-port Mini-receiver (4 g weight!)
- 8 or 12 channel output via SBUS/PPM/CRSF on both receivers
- Ability to fly with multiple friends at the same time (10 or more)
- RF power selectable from 25 mW to 1 W (local restrictions apply)
- The transmitter LED shows the link status
- Micro-receiver for smaller drones. Smaller than you think!
- Software updates via RF Link
Technical specifications
- Frequency bands: 868 MHz (EU, Russia) / 915 MHz (USA, Asia, Australia)
- Input Voltage: 3.5 - 13V
- Connector: USB-C
- Power Consumption: 1.1 W (at 10 mW) - 2 W (at 100 mW)
- Dimensions: 65 x 48 x 22 mm (JR module size)
- Weight: 48g
Package Included
- Micro TBS Crossfire Transmitter (JR Module)
- TBS Crossfire Stock Tx Antenna V2
