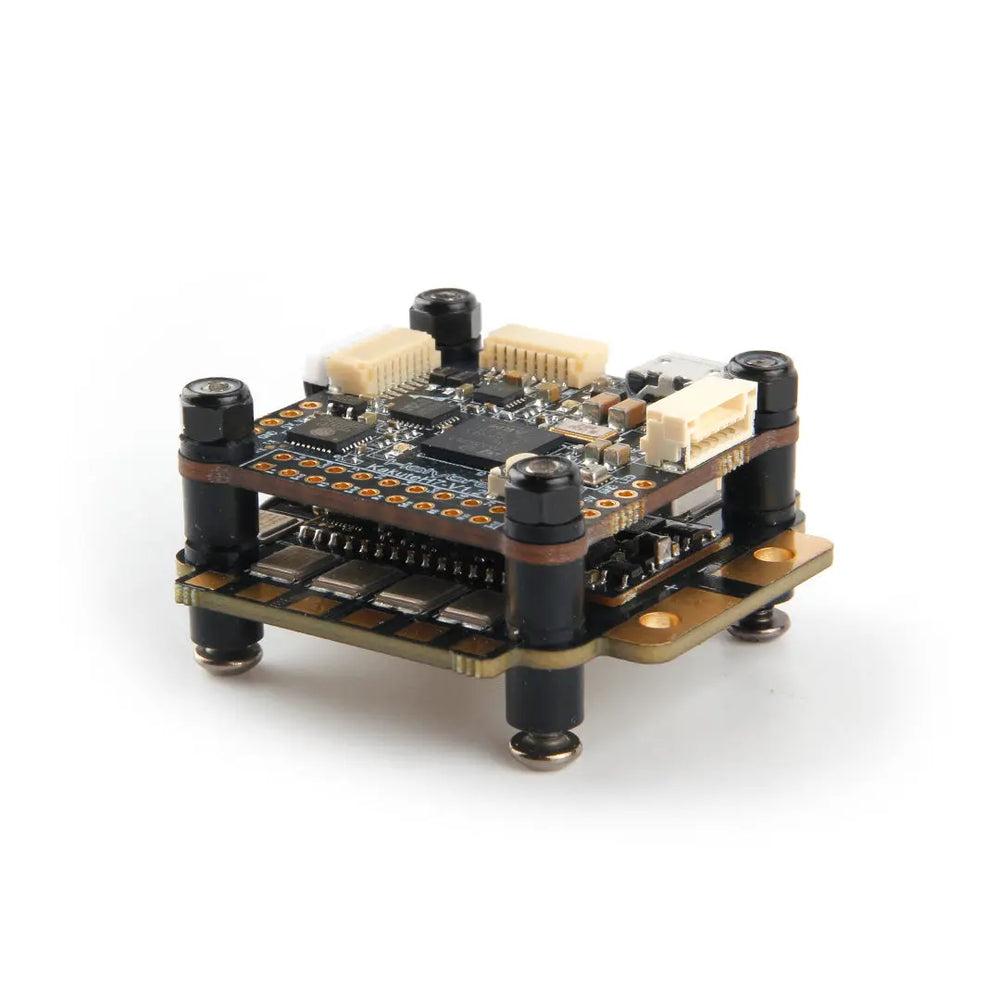

The Holybro Kakute H7 v2 flight controller is packed with features including built-in Bluetooth, HD camera jack, dual 4in1 plug-and-play ESC ports, 9V VTX ON/OFF pit switch, barometer, OSD, 6 UARTs, 128 MB of flash for recording, 5V and 9V BEC, larger solder pad with simple layout and much more.
The Kakute H7 v2 builds on the best features of its predecessor F7 and further improves the hardware components and layout. With the additional built-in Bluetooth chip, you can setup and tune wirelessly on your phone with the SpeedyBee app for Android and IOS. The Kakute H7 is ready for DJI HD. It has a simple plug-and-play port with a built-in 9V regulator designed to power your HD video transmitter such as DJI/Caddx FPV Air Unit and Caddx Vista while supporting analog system.
It features a built-in "VTX ON/OFF Pit Switch" that allows you to completely turn off the video transmitter using a switch on the RC transmitter. Great if you're working on your drone, waiting for the GPS to get a fix, preparing for a race while keeping it from overheating or interfering with others in flight. It has 6 dedicated UART ports with built-in inversion for peripherals (UART2 is used for Bluetooth telemetry), a 128MB flash for recording, dual 4in1 plug-and-play ESC connectors, allowing for easy plug-and-play support play for x8 and Octocopter setup and keeping it simple and clean. The integrated BetaFlight OSD makes it easy to see important information on the FPV display such as battery voltage, flight time, alerts, RSSI, intelligent audio functions and more. It is also ready for autonomous flight with on-board barometer.
Specifications
-
MCU - 32-bit STM32H743 processor running at 480 MHz
-
IMU - BMI270
-
Barometer - BMP280
-
OSD-AT7456E
-
Built-in Bluetooth chip - ESP32-C3
-
Compatible with SpeedyBee IOS and Android
-
Note: The built-in Bluetooth is set to automatically turn off when the flight controller is unlocked (armed) and automatically turn on when the flight controller is locked (disarmed).
-
-
VTX ON/OFF Pit Switch – The switch can be enabled using USER1 in the Betaflight Mode tab.
-
Warning: Do not enable this pit switch if using the DJI FPV remote controller
-
-
6x UART (1,2,3,4,6,7; UART2 is used for Bluetooth telemetry)
-
9 PWM outputs (8 motor outputs, 1 LED)
-
2x JST-SH1.0_8pin port (4in1 ESC, x8/Octocopter compatible)
-
1x JST-GH1.25_6pin port (for HD systems such as Caddx Vista and Air Unit)
-
Battery input voltage: 7V to 42V
-
BEC 5V 2A cont.
-
BEC 9V 1.5A cont.
-
Mounting: 30.5 x 30.5mm/Φ4mm hole with Φ3mm eyelets
-
Size - 35x35mm
-
Weight: 8g
Tekko32 F4 Metal 4in1 65A ESC (65A)
The brand new Tekko32 Metal is the first 4in1 ESC on the market to adapt the fast F4 MCU. Powerful and reliable metal case 4in1 MOSFET ESC with smooth control and fast response.
Characteristics:
-
New and faster 150Mhz F4 MCU (compared to 108Mhz F3 and 48Mhz F0)
-
PWM Frequency: 16k to 96k
-
MOSFET with metal casing for excellent heat dissipation
-
Huge built-in noise filtering capability at 2068uf
-
3oz copper PCB design to allow higher current and better heat dissipation
-
Separate drive and control circuit, this expands the current capacity of the drive circuit while reducing electrical interference to the control circuit.
Specifications
-
Continuous current: 65A x4
-
Burst current: 75A x4
-
Support 4-6S battery
-
Supports DShot 150/300/600/1200 and MultiShot/OneShot/Proshot/PWM etc.
-
ESC Telemetry Supported
-
Integrated analog current sensor
-
No BEC output
-
BLHeli_32 firmware
-
1000uf 35v capacitor included (highly recommended for 6s configuration)
-
Ammeter scale ratio: 180
-
Dimensions: 43 x 44 mm / Weight: 15.8 g
-
Mounting holes: M4 30.5x30.5mm (M3 seals included)
The battery cable (Lipo to 4in1 ESC) must be at least 12AWG and well soldered.
Package Included
SKU20196 Kakute H7 V2&Tekko32 F4 Metal 4in1 65A ESC STACK
- 1 Kakute H7 V2 battery
- 1x electrolytic capacitor: 1000uF 35v
- 1 x 1mm Pitch 65mm Pitch 8 Pin to 8 Pin Cable
- 1 x 1mm 25mm Pitch 8 Pin to 8 Pin Cable
- 1x JST GHR 8 Pin to JST GHR 6 Pin 80mm Cable (for DJI/Caddx HD System)
- 1 x 100mm JST GHR 6-Pin Cable (for Caddx HD Systems)
SKU20197 Kakute H7 V2&Tekko32 F4 Metal 4in1 65A ESC&Atlatl HV V2 STACK
- 1x STACK Kakute H7 BT
- 1x electrolytic capacitor: 1000uF 35v
- 1 x 1mm Pitch 65mm Pitch 8 Pin to 8 Pin Cable
- 1 x 1mm 25mm Pitch 8 Pin to 8 Pin Cable
- 1x JST GHR 8 Pin to JST GHR 6 Pin 80mm Cable (for DJI/Caddx HD System)
- 1 x 100mm JST GHR 6-Pin Cable (for Caddx HD Systems)
- 1 x 80mm SMA-MMCX Cable
- 1 x JST GHR 4 Pin 150mm Cable
