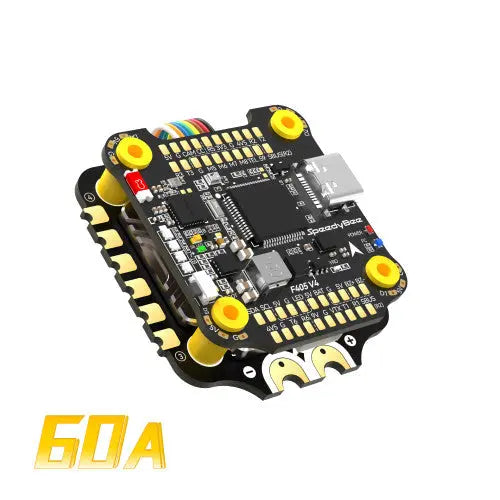

SpeedyBee F405 V4 BLS 60A 30x30 stack

€109,99 EUR

×

We often restock popular items or they may be returned by the other customers. If you would like to be notified when this happens just enter your details below.


SpeedyBee F405 V4 BLS 60A 30x30 stack

Please select variant
Please enter name
Invalid email address
Required mobile number Invalid number Invalid country code Too short Too long ✓ Valid
Your notification has been registered. Close
Looks like you already have notifications active for this size!

We respect your privacy and don't share your email with anybody.

×

We have cancelled your request.

Only left in stock.

Pay online with PayPal, credit, debit and prepaid cards securely, even on delivery!

visamastermaestropaypalapple paygoogle payshopify pay
Order within [totalHours] hours %M minutes and you can receive your order between and
USB-C
ICM42688P
6
60A
30.5x30.5
BLHeli_S
4 ESCs in 1
["LiPo 3S/11.1V","LiPo 4S/14.8V","LiPo 6S/22.2V"]
F4
Description

Stack SpeedyBee F405 V4 BLS 60A 30x30 FC&ESC

MANUAL. AND ELECTRICAL DIAGRAM

With this stack you will get a STM32F405 FC (better than F411), built-in 4-level battery life indicator, Blackbox 4GB SD card slot for flight logs, 4 sets of LED strips, complete with DJI socket for your digital quad, and built-in Bluetooth for wireless setup on the SpeedyBee app. Don't forget the powerful 60A 4-in-1 ESC, built with aluminum alloy heatsink + TVS shielding diode + high quality SMD filter capacitors + external 1000uF low ESR capacitor, everything is for a durable build and smooth flight.

Characteristics

* The DJI Air Unit plug is fully compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no need to replace any cables.

SpeedyBee F405 BLS 60A

Setup your FC and ESC via Bluetooth!
With the SpeedyBee app, turn your phone into an all-in-one FC configurator and tune your quad anytime, anywhere. Enjoy the wireless and fully configurable ESC experience with the SpeedyBee app

SpeedyBee F405 BLS 60A

ESC updated to 60A with heatsink.
The PCB design has been refined, with copper thickness increased from 2 to 3 ounces and improved MOSFET specifications. Continuous current now reaches 240A across all channels, with a peak of 320A for 10 seconds. An additional aluminum alloy heatsink ensures efficient MOSFET heat dissipation for stable ESC output. It provides a true 60A output, ready for your baddest high-power 6S motors.

SpeedyBee F405 BLS 60A

ICM42688P Gyroscope and
clean eating.
Equipped with MaxLinear's esteemed LDO power chip, the gyro receives dedicated power, improving overvoltage protection by 320%. A 100uF tantalum filter capacitor protects the gyro data from power interference. This ensures precise flight responsiveness, allowing you to truly enjoy the joy of flying!

SpeedyBee F405 BLS 60A

Forgot your LiPo control?
Just look at FC!
On the side of the flight controller, you will find a 4-level battery capacity indicator. As soon as you connect the battery, you can immediately see the battery level, saving you the hassle of having to wear glasses to check the battery status.

SpeedyBee F405 BLS 60A

SD card compatibility issue solved!
The F405 V3 FC had compatibility issues with some microSD cards, some of which occasionally affected the stability of the OSD display. The improved F405 V4 flight controller, however, addresses these challenges. It reliably supports C4, C6, C10 and above cards with 2k/4k recording speeds.
BF/INAV can recognize up to 4GB of space in the black box. Once the SD card is erased, you can enjoy over 1000 flights. Experience the freedom of the black box like never before!

SpeedyBee F405 BLS 60A

Change the direction of the motor wirelessly!
Still using a computer to change the motor directions? With this stack, once you're done building, connect to the SpeedyBee app and change the motor directions in a few simple steps*. Then take off.
* To use this feature, go to Apps > Motors > Motor Direction Settings.

SpeedyBee F405 BLS 60A

8 motor output for X8/Y6
You could use this stack to build your X8 and Y6 drones. Forget about having to scroll through your huge build just to
connect the USB cable. Just take out your phone to set up everything in the SpeedyBee app.

SpeedyBee F405 BLS 60A

4 sets of LED pads with simple switching.
Need more visibility at night? Simply solder the LED strips* and light up the darkest trail you can find. With just one touch of the BOOT button, you can cycle through all the different LED presets** and pick the one you love!
* LED strips can be purchased here
**Or long press the start button to switch to Betaflight LED mode.

SpeedyBee F405 BLS 60A

TVS protective diode + 20 built-in filter capacitors + 1000uF high capacity electrolytic capacitor = improved ESC protection
We have included a TVS diode that effectively absorbs voltage spikes during power-on and crash events. The board is equipped with 20 high-quality SMD filtering and energy storage capacitors. These, along with the standard 1000uF high-frequency, low-ESR electrolytic capacitor, effectively filter signal interference from the power supply to the flight controller gyro, ensuring smoother flight performance.

SpeedyBee F405 BLS 60A

And packaged with more useful features.

● Built-in barometer for accurate altitude calculation
● The SD card slot can support up to 4GB of Blackbox data*
● Dedicated connector for DJI Air unit for rapid digital creation
● Dual 5V and 9V BEC now upgraded to both 3A outputs
● 4 UARTs for your receiver + VTX + camera + GPS
● Power your GPS with a USB cable: no battery needed, no extra heat, no worries
● 22mm cutouts for FPV camera in your compact frame

*Betaflight firmware requires the microSD card type to be Standard (SDSC) or High Capacity (SDHC) less than 32GB, so Extended Capacity (SDXC) cards are not supported (many high speed U3 cards are SDXC). Also the microSD card MUST be formatted with FAT16 or FAT32 (recommended), you can use any SD card less than 32GB, but Betaflight can only recognize a maximum of 4GB. We suggest you use this 3rd party formatting tool and choose "Overwrite Format" then format the card. Also check here for recommended SD cards or purchase tested cards from our store.

SpeedyBee F405 BLS 60A


SpeedyBee F405 BLS 60A


SpeedyBee F405 BLS 60A


SpeedyBee F405 BLS 60A


SpeedyBee F405 BLS 60A


SpeedyBee F405 BLS 60A


SpeedyBee F405 BLS 60A


SpeedyBee F405 BLS 60A


SpeedyBee F405 BLS 60A


SpeedyBee F405 BLS 60A

NOTE: The flight controller that makes up the stack is updated to version V4.

Technical specifications


Product Name SpeedyBee F405 V4 30x30 Flight Controller
MCU STM32F405
IMU (gyroscope) ICM42688P
USB port type Type C
Barometer Integrated
OSD Chips AT7456E Integrated Circuit
Bluetooth BLE Supported. Used for flight controller configuration (MSP must be enabled with baud rate 115200 on UART4)
WIFI Not supported
DJI Air Unit Connection Mode Two modes are supported: 6-pin connector or direct soldering.
DJI 6 Pin Air Unit Plug Supported. Fully compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no need to replace any cables.
Blackbox MicroSD card slot *Betaflight firmware requires the microSD card type to be Standard (SDSC) or High Capacity (SDHC) less than 32GB, so Extended Capacity (SDXC) cards are not supported (many high speed U3 cards are SDXC). The microSD card MUST also be formatted with FAT16 or FAT32 (recommended). So, you could use any SD card less than 32GB, but Betaflight can only recognize a maximum of 4GB. We suggest you use this third-party formatting tool and choose "Overwrite Format" then format the card. Also check here for recommended SD cards or purchase tested cards from our store.
Current sensor input Supported. For SpeedyBee BLS 60A ESC, set scale = 400 and Offset = 0.
Power input 3S - 6S Lipo (via G, BAT pin/pad from 8-pin or 8-pad connector on the bottom side)
5V output 9 groups of 5V outputs, four +5V pads and 1 BZ+ pad (used for buzzer) on the front side, and 4 5V LED pads. The total current load is 3A.
9V output 2 sets of 9V outputs, one +9V pad on the front side and the other included in a connector on the bottom side. Total current load is 3A.
Output 3.3V Supported. Designed for 3.3V input receivers. Current load up to 500mA.
Output 4.5V Supported. Designed for GPS receiver and module even when the FC is powered by USB port. Current load up to 1A.
ESC signal M1 - M4 on the bottom side and M5-M8 on the front side.
UART 6 sets (UART1, UART2, UART3, UART4 (dedicated to Bluetooth connection)), UART5 (dedicated to ESC telemetry), UART6
ESC Telemetry UARTR5
I2C Supported. SDA and SCL pads on the front side. Used for magnetometer, sonar, etc.
Traditional Betaflight LED Mat Supported. 5V, G and LED pad on the bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.
Buzzer BZ+ and BZ- pad used for 5V buzzer
START button Supported.
[UN]. Press and hold the BOOT button and power on the FC at the same time to force the FC to enter DFU mode, this is for flashing the firmware when the FC is frozen.
[B]. When the FC is powered on and in standby mode, the BOOT button can be used to control the LED strips connected to the LED1-LED4 connectors on the bottom side. By default, short press the BOOT button to toggle the LED display mode. Long press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. In BF-LED mode, all LED1-LED4 strips will be controlled by the Betaflight firmware.
RSSI Input Supported. Labeled RS on the front.
Smart Door / F Door Not supported
Supported flight controller firmware BetaFlight (default), INAV
Firmware target name SPEEDYBEEF405V4
Assembly 30.5 x 30.5 mm (hole diameter 4 mm)
Size 41.6 (L) x 39.4 (W) x 7.8 (H) mm
Weight 10.5 g
Product Name SpeedyBee BLS 60A 30x30 ESC 4 in 1
Firmware BLHeli_S JH-50
PC Configurator Download Link https://esc-configurator.com/
Direct current 60A*4
Burst current 80 A (10 seconds)
TVS protective diode YES
External condenser 1000uF low ESR capacitor (in the box)
ESC Protocol DSHOT300/600
Power input LiPo 3-6S
Output power VBAT
Current sensor Support (Scale=400 Offset=0)
ESC Telemetry Not supported
Assembly 30.5 x 30.5 mm (hole diameter 4 mm)
Size 45.6(L) * 44(W) *8mm(H)
Weight 23.5 g

Package Included

  • 1x Speedybee F405 V4
  • 1x Speedy bee BLS 60A 4-in-1 ESC
  • 1x Capacitor 1000uf 35V
  • 5x M3 Nylon Nut
  • 5x M3 silicone rings
  • 1x M3*8 silicone eyelets x FC
  • 1x M3*8.1 Silicone Eyelets x ESC
  • 1x 8 pin SH 1.0mm cable length 25mm
  • 5x M3 x 30mm internal hex screws
  • 1x DJI 6pin Cable (80mm)
  • 1x XT60 Power Cable (100mm)
