SpeedyBee AIO F405 40A Bluejay 25,5x25,5 3-6S

€79,99 EUR

×
SpeedyBee AIO F405 40A Bluejay 25,5x25,5 3-6S

We often restock popular items or they may be returned by the other customers. If you would like to be notified when this happens just enter your details below.


SpeedyBee AIO F405 40A Bluejay 25,5x25,5 3-6S

Please select variant
Please enter name
Invalid email address
Required mobile number Invalid number Invalid country code Too short Too long ✓ Valid
Your notification has been registered. Close
Looks like you already have notifications active for this size!

We respect your privacy and don't share your email with anybody.

×

We have cancelled your request.

Only left in stock.

Pay online with PayPal, credit, debit and prepaid cards securely, even on delivery!

visamastermaestropaypalapple paygoogle payshopify pay
Order within [totalHours] hours %M minutes and you can receive your order between and
Description

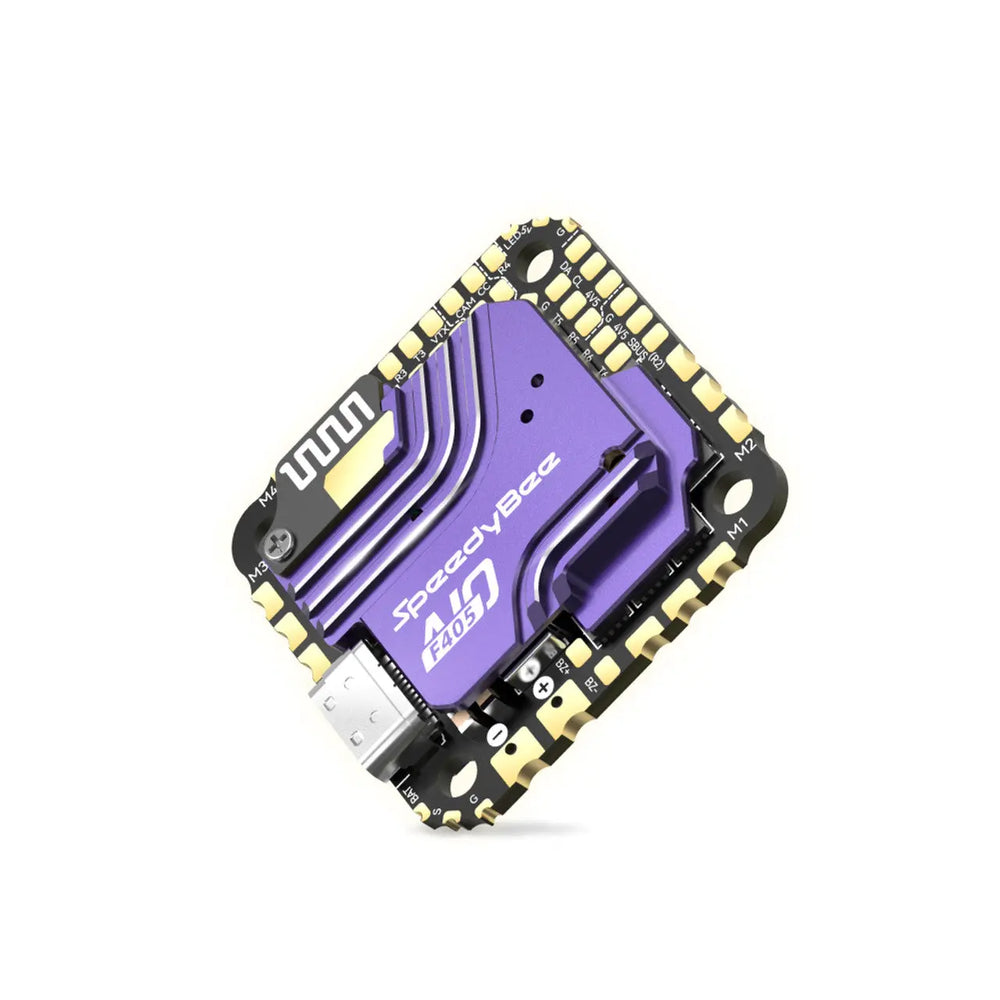

SpeedyBee F405 AIO 40A – Flight Controller All-in-One per FPV


Descrizione

Lo SpeedyBee F405 AIO 40A è un flight controller all-in-one (AIO) progettato per offrire prestazioni elevate e massima integrazione in un formato compatto. Basato sul potente MCU STM32F405, include un giroscopio ICM-42688P, supporto Bluetooth BLE 2.0 per configurazione wireless e compatibilità diretta con DJI O3, RunCam Link e Caddx Vista tramite porta DJI Sky Port a 6 pin.

L'ESC integrato 40A 3-6S supporta DSHOT600 e include un sensore di corrente per un controllo più preciso. Il design compatto con fori di montaggio 25,5 x 25,5 mm lo rende ideale per build leggere e performanti.

  • MCU: STM32F405
  • Giroscopio: ICM-42688P
  • Bluetooth BLE 2.0: Configurazione wireless senza bisogno di premere il pulsante BOOT
  • Compatibilità DJI: Connessione diretta a DJI O3, RunCam Link e Caddx Vista
  • BlackBox: 8 MB di memoria integrata
  • Tensione di ingresso: 3S-6S LiPo
  • BEC: 4.5V 1A / 5V 2A / Modulo BEC esterno 5V/9V 2A
  • ESC integrato: 40A (45A burst), DSHOT600
  • Fori di montaggio: 25,5 x 25,5 mm

Perfetto per build FPV compatte e leggere, lo SpeedyBee F405 AIO 40A è la scelta ideale per piloti che cercano affidabilità, prestazioni e facilità di configurazione.

SpeedyBee F405-AIO-40A

SpeedyBee F405-AIO-40A

SpeedyBee F405-AIO-40A
SpeedyBee F405-AIO-40A
SpeedyBee F405-AIO-40A
SpeedyBee F405-AIO-40A
SpeedyBee F405-AIO-40A
SpeedyBee F405-AIO-40A
SpeedyBee F405-AIO-40A
SpeedyBee F405-AIO-40A
SpeedyBee F405-AIO-40A
SpeedyBee F405-AIO-40A
Controllore di volo
Nome del prodotto SpeedyBee F405 AIO
MCU STM32F405
Giroscopio Codice articolo: ICM-42688P
Tipo di porta USB Tipo C
Barometro SPA06-003
Stato dell'OSD Supportato
Bluetooth BLE Supportato, miglioramento della velocità Bluetooth - 2.0
Aggiornamento del firmware del controller di volo wireless Supportato (non è necessario premere il pulsante BOOT fisico)
Download wireless e analisi BlackBox Non supportato
Metodo di collegamento dell'unità aerea DJI Supporta sia l'inserimento diretto a 6 pin che la saldatura
Inserimento diretto della porta DJI Sky Port a 6 pin Supportato, può connettersi direttamente a DJI O3/RunCam Link/Caddx Vista senza modificare l'ordine dei cavi
Flash (per BlackBox) 8 MB
Betaflight CC Pads (regolazione dei parametri della telecamera) Supportato
Tensione di ingresso Batteria LiPo 3S-6S
Uscita 4V5 Due uscite 4V5; corrente totale 1A
Uscita BEC 5V Tre uscite da 5 V; corrente totale 2 A; condivisa con 4 V5
Uscita BEC 9V Nessuno (fornito con un modulo BEC esterno, può commutare tra 5 V e 9 V); corrente di uscita totale 2 A
MOTORE Da M1 a M4
UART 4 porte seriali a piena funzionalità (UART3, UART4, UART5, UART6 + SBUS[R2])
Telemetria ESC Nessuno
I2C Supportato
Pastiglie LED Supportato, utilizzato per controllare le luci LED WS2812
Tamponi cicalino Supportati, BZ+ e BZ- pad
Pulsante di avvio Supportato, premere e tenere premuto il pulsante BOOT durante l'accensione per accedere alla modalità DFU per il ripristino del firmware
Pastiglie RSSI Nessuno
Porta intelligente Non supportato
Firmware del Flight Controller supportato BetaFlight (predefinito), INAV
Nome destinazione firmware Motore SpeedyBee F405AIO
Montaggio 25,5 x 25,5 mm, diametro foro 2 mm
Dimensioni 33,0 mm (lunghezza) x 33,0 mm (larghezza) x 8 mm (altezza)
Peso 13,6 g (incluso CNC)
ESC
Nome del prodotto SpeedyBee F405 AIO
Tensione di ingresso Batteria LiPo 3-6S
Corrente continua 40A
Corrente di scossa 45A (10 secondi)
Protocollo ESC Supporta DSHOT600/300; altri protocolli possono causare gravi errori, utilizzarli con cautela.
Tensione di uscita Tensione della batteria VBAT (utilizzata per alimentare il controllore di volo)
Sensore di corrente Supportato (scala = 254, offset = 0)
Firmware Ghiandaia azzurra JH-40 48kHz
Manuale
Manuale dell'utenteInglese Manuale dell'utenteCinese Manuale dell'utenteFirmware
