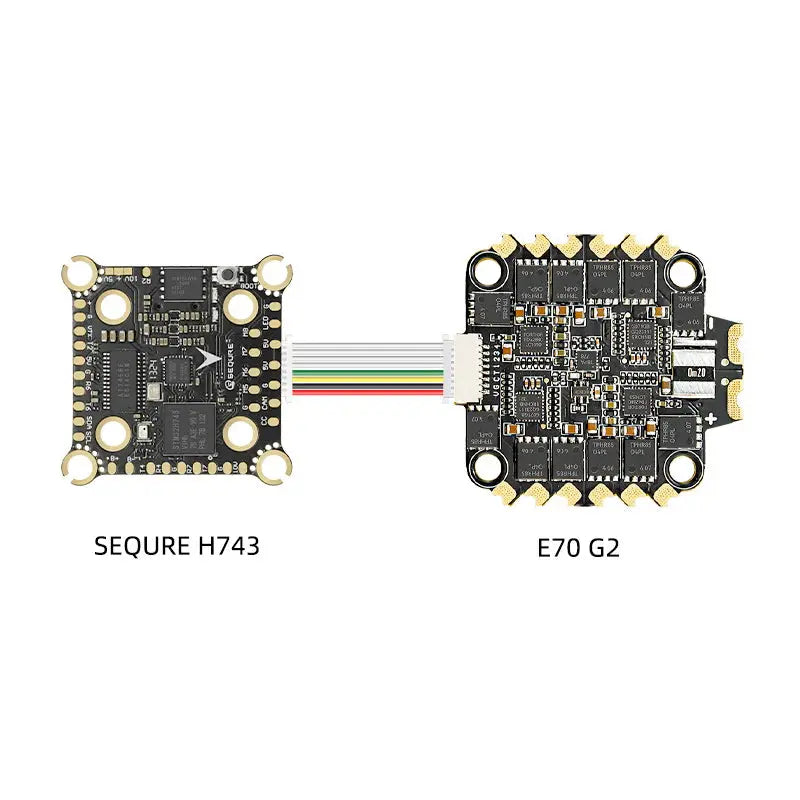

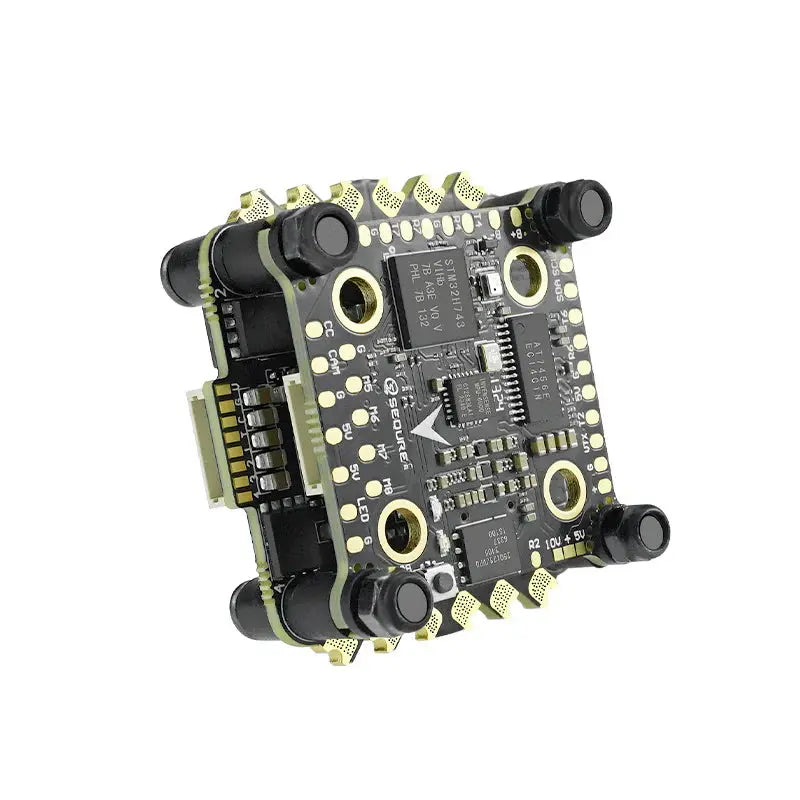

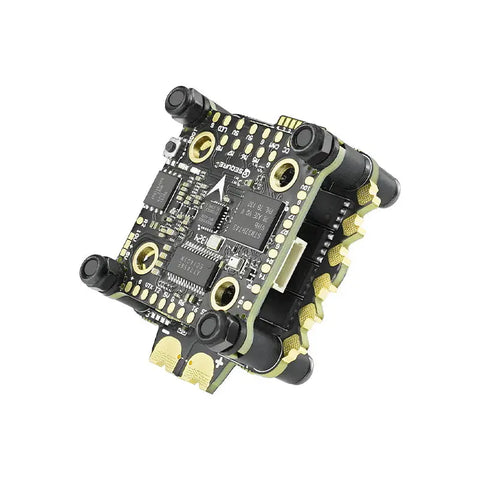

Sequre H743 V2 E70 G2 stack MPU6000 AM32 30,5x30,5
Il Stack FC ESC FPV H743 E70 G2 è progettato per piloti FPV che cercano massime prestazioni in configurazioni racing e freestyle. Questa combinazione integra un flight controller ad alta velocità con un ESC 4‑in‑1 da 70 A capace di gestire LiPo da 4S a 8S.

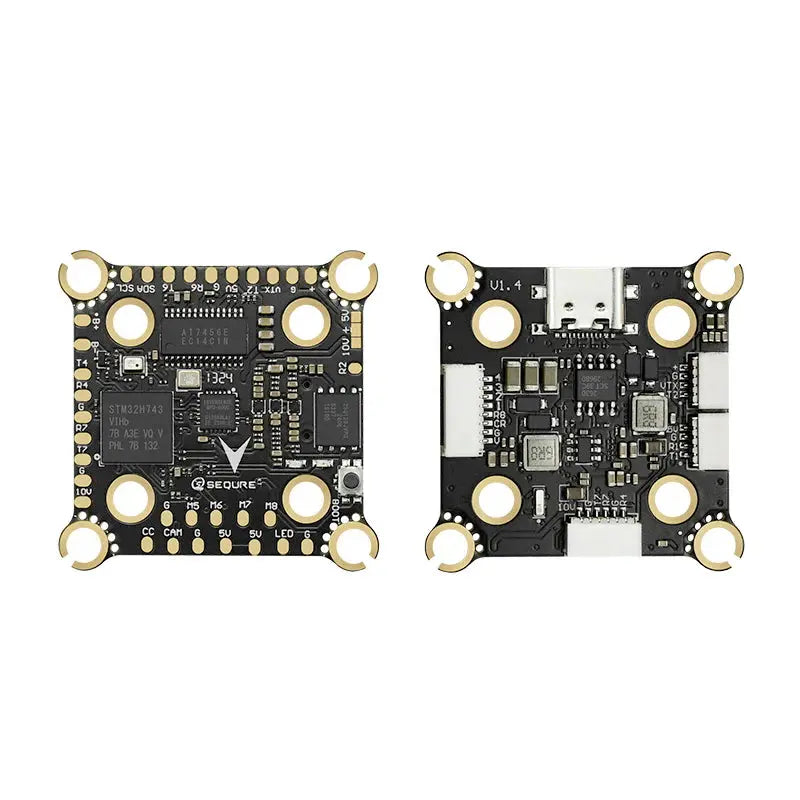

Il cuore del sistema è un processore H7 da 480 MHz abbinato a un giroscopio di nuova generazione per una precisione e stabilità eccezionali. Il controller include OSD, barometro e una memoria da 16 MB per il logging BlackBox. È compatibile con firmware Betaflight, INAV e ArduPilot.

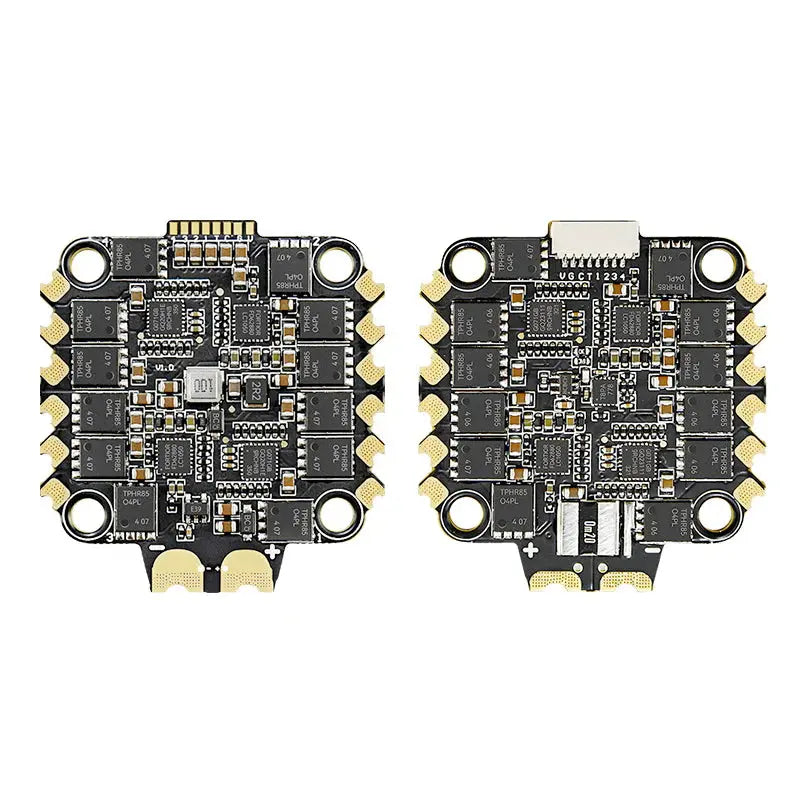

L’ESC utilizza un’architettura a 128kHz con supporto per firmware BLHeli_32 o AM32, garantendo massima reattività, efficienza e controllo sui motori. Ideale per configurazioni fino a 8 motori, offre pieno supporto per build complesse, anche in X8.
Grazie al layout compatto con fori 30,5x30,5 mm, è facilmente installabile nei frame standard FPV. I doppi BEC integrati (5 V e 10 V) permettono di alimentare VTX digitali, moduli DJI O3 e altri accessori.
Caratteristiche
-
Combo FC + ESC per build da racing e freestyle
-
ESC 4‑in‑1 70 A, fino a 150 A di picco
-
Processore H743 480 MHz + giroscopio ICM‑42688P
-
OSD, barometro e BlackBox da 16 MB integrati
-
Compatibile con BLHeli_32, AM32, Betaflight, INAV
-
Supporta 4‑8S LiPo
-
Frequenza PWM fino a 128 kHz
-
6 porte UART dedicate
-
Layout fori compatibile 30,5x30,5 mm
Specifiche Tecniche
| Componente | Specifiche |
|---|---|
| Flight Controller | H743 480 MHz, giroscopio ICM‑42688P, barometro, OSD, 16MB |
| ESC 4‑in‑1 | 70A continuo, 150A picco, supporto 2‑8S, PWM fino a 128kHz |
| BEC integrati | 5 V / 2,5 A + 10 V / 2 A |

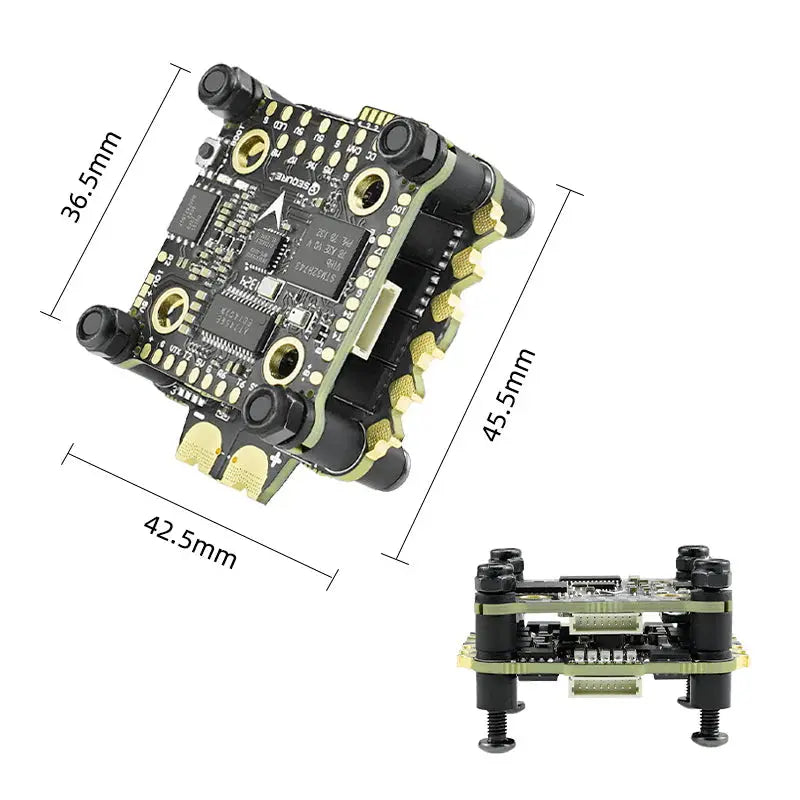

| Dimensioni FC | 36,5 × 36,5 × 6 mm |
| Fori di montaggio | 30,5 × 30,5 mm e 20 × 20 mm |

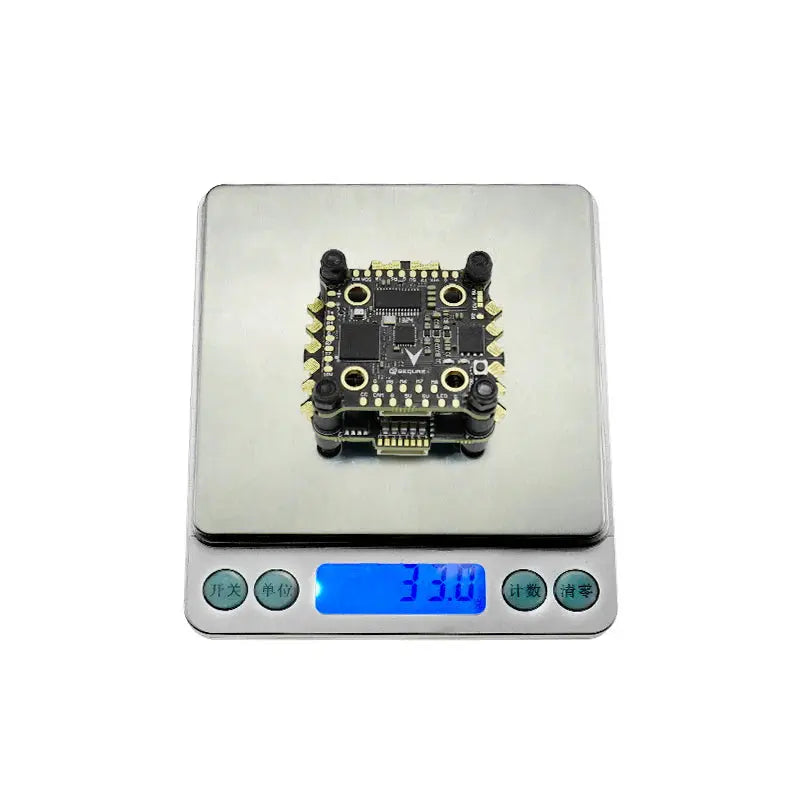

| Peso totale | FC: 7,3 g – ESC: 17,5 g |
Il pacchetto include
-
-
1 × Flight Controller H743 V2
-
1 × ESC 4‑in‑1 E70 G2 70A
-
Cavi piatti SH1.0 40 mm e 100 mm
-
Buzzer 5 V
-
Supporti in silicone, viti M3, sleeves
-
Condensatore 35V 680µF
-
Connettore XT60H‑M
-
