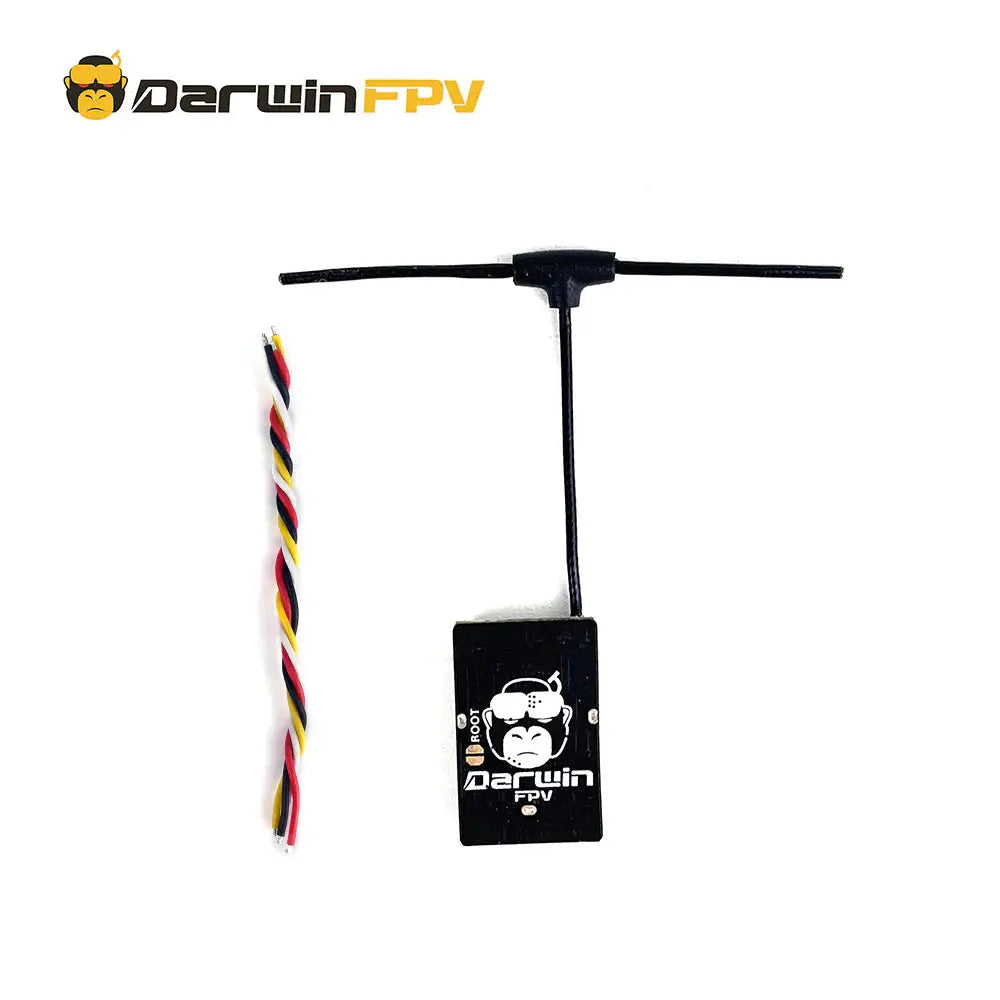

DarwinFPV "Cement" ELRS 2.4G Ultra Rugged Receiver
The original design intent of the ultra-durable "cement" product series:
How to make the FPV drone break the environmental limits again? To increase the fun of flying for players, experience different flight perspectives, shoot different materials, and not be afraid of dust, rain, snow and any harsh environment.
We noticed that in order to prevent dust, tin slag, grass juice, rain, etc. from damaging the electronic equipment, pilots have used methods such as anti-corrosion paint, printed parts, and bandages to protect the equipment. These methods are not only complicated and time-consuming, and do not comply with the manufacturer's warranty policy. They also have low reliability and a high probability of failure.
To this end, Darwin has launched a new ultra-durable "cement" series, so that you have more confidence to challenge the extreme environment. "Cement" - makes playing with FPV drone more fun!
Why is it called "cement"?
Because it looks like concrete and it is potted and it has the same durability as concrete and we hope your drones can be used safely and boldly in water and mud!
The ELRS 2.4G ultra-durable receiver "Cement" is a high-performance receiver specially designed for fpv drones. It has anti-reverse connection function, IP67 dustproof and waterproof rating, and 100mW power amplifier (PA), providing a powerful, stable and reliable remote control experience.
Specifications
- Name: DarwinFPV "Cement" Ultra Durable 2.4G Receiver
- Weight: 3.0g±0.2g
- Dimensions: 14.2mm x 22.0mm x 4mm
- Packet speed: 2.4GHz ISM
- RF Power: 100mW
- Voltage: 5V
- Current: 60mA
- Protocol: CRSF
- Firmware: BETAFPV_Nano_2400_RX
- Chips: ESP8285, SX128X, AT2401C
- Antenna: Mini T antenna (50mm)
- The receiver's factory firmware is ELRS_V3.2.0
Package Included
-
DarwinFPV "Cement" Ultra Durable 2.4G Receiver*1
-
Silicone cable (length 70mm) *1
- Transparent heat shrink tube (length 50mm, diameter 14mm) *1
ELRS and FC receiver wiring diagram:
Indicator light status
Open Betaflight Configurator, go to the "Ports" tab and enable the corresponding UART as "Serial Rx" (take UART2 as an example, as shown in the image below). Save and reboot.
In the "Receiver" tab, click "Serial Receiver Provider" in the Receiver panel and select "CRSF".
Receiver pairing method
1. The receiver is turned on and off 3 times consecutively (within 1 second);
2. The receiver's LED light flashes twice, indicating that the receiver has entered pairing mode;
3. Put the TX module or remote control into pairing status. Once the LED status becomes solid, the pairing is successful.
