RadioMaster XR3 Nano ExpressLRS ELRS 2.4GHz/900MHz RadioMaster
RadioMaster XR3 Nano ExpressLRS ELRS 2.4GHz/900MHz RadioMaster
RadioMaster XR3 Nano ExpressLRS ELRS 2.4GHz/900MHz RadioMaster
RadioMaster XR3 Nano ExpressLRS ELRS 2.4GHz/900MHz RadioMaster
RadioMaster XR3 Nano ExpressLRS ELRS 2.4GHz/900MHz RadioMaster
RadioMaster XR3 Nano ExpressLRS ELRS 2.4GHz/900MHz RadioMaster
RadioMaster XR3 Nano ExpressLRS ELRS 2.4GHz/900MHz RadioMaster
RadioMaster XR3 Nano ExpressLRS ELRS 2.4GHz/900MHz RadioMaster
RadioMaster XR3 Nano ExpressLRS ELRS 2.4GHz/900MHz RadioMaster

RadioMaster XR3 Nano ExpressLRS ELRS 2.4GHz/900MHz

€39,99 EUR

×
RadioMaster XR3 Nano ExpressLRS ELRS 2.4GHz/900MHz

We often restock popular items or they may be returned by the other customers. If you would like to be notified when this happens just enter your details below.


RadioMaster XR3 Nano ExpressLRS ELRS 2.4GHz/900MHz

Please select variant
Please enter name
Invalid email address
Required mobile number Invalid number Invalid country code Too short Too long ✓ Valid
Your notification has been registered. Close
Looks like you already have notifications active for this size!

We respect your privacy and don't share your email with anybody.

×

We have cancelled your request.

Only left in stock.

Pay online with PayPal, credit, debit and prepaid cards securely, even on delivery!

visamastermaestropaypalapple paygoogle payshopify pay
Order within [totalHours] hours %M minutes and you can receive your order between and
Description

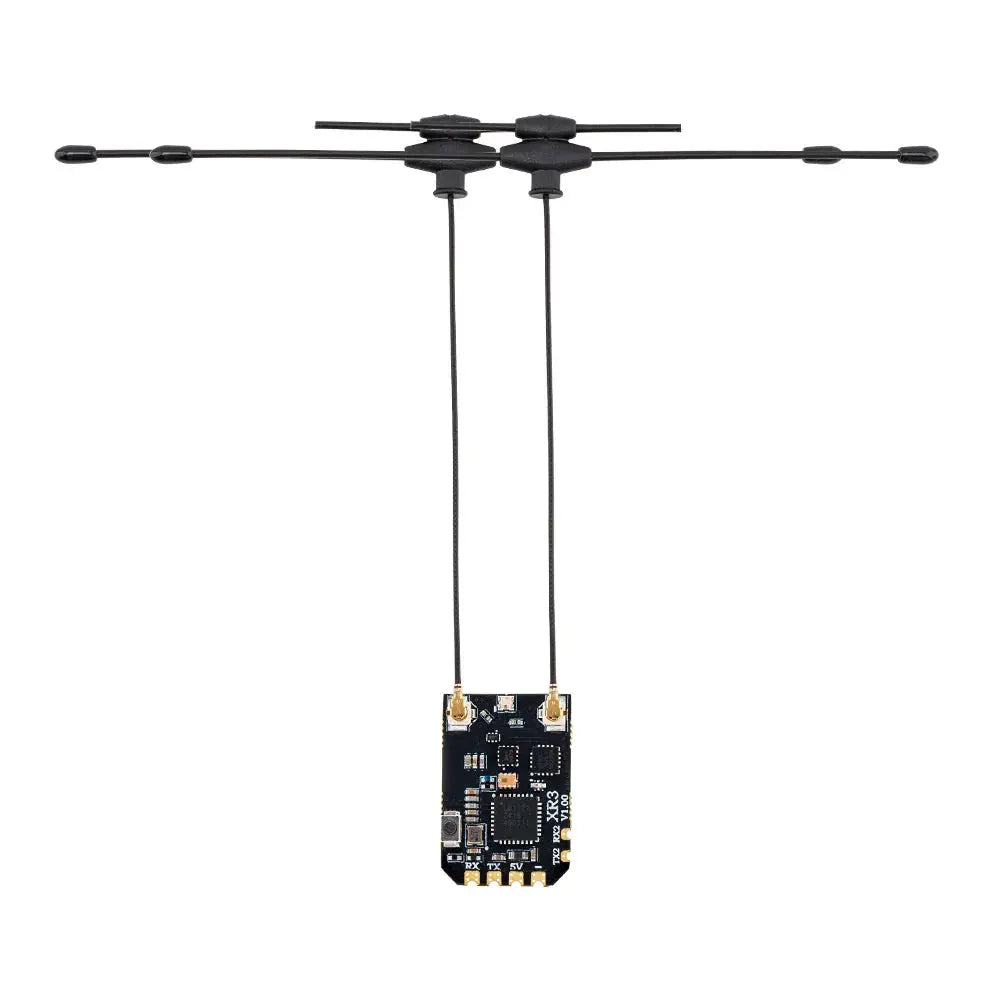

RadioMaster XR3 Nano ExpressLRS ELRS 2.4GHz/900MHz

Il ricevitore XR3 è un ricevitore ExpressLRS versatile e ultracompatto, che misura appena 20 x 15 mm. Alimentato dal trasmettitore Semtech LR1121 di terza generazione avanzato, l'XR3 funziona senza problemi su bande da 2,4 GHz o Sub-G da 900 MHz. Sia che tu stia volando su 2,4 GHz o 900 MHz, l'XR3 offre una portata e una sensibilità eccezionali in un pacchetto piccolo e leggero, perfetto per qualsiasi configurazione. Con l'affidabilità di ExpressLRS, puoi concentrarti sul volo senza preoccuparti della qualità del collegamento.

Progettato per la praticità, l'XR3 è dotato di Wi-Fi integrato per una configurazione e aggiornamenti firmware senza sforzo. Accedi e gestisci le impostazioni tramite un'interfaccia Web intuitiva sul tuo PC o dispositivo mobile con facilità.

Per maggiori dettagli e supporto, visitaexpresslrs.org.

Ricevitore XR3 Nano Multi-Frequency Antenna Diversity ExpressLRS

Caratteristiche

  • Diversità dell'antenna per una migliore stabilità e portata del segnale
  • ExpressLRS 2,4 GHz o Sub-G 900 MHz
  • MCU ad alte prestazioni ESP32C3
  • Trasmettitore Semtech LR1121
  • Porta UART aggiuntiva
  • Porta secondaria per funzionalità avanzate
  • Piastrelle a castello per una facile saldatura

Specificazione

  • Articolo: XR3 Nano Multi-Frequency Antenna Diversity ExpressLRS Receiver
  • Tipo: ISM2.4, FCC915
  • Scheda madre: ESP32C3
  • Circuito integrato RF: LR1121
  • Connettore RF: IPEX-1 X 2
  • Antenna: 2x T-Antenna (2,4 GHz, 900 Mhz o Dual-band a seconda del pacchetto selezionato)
  • Gamma di frequenza: 2,4 GHz / Sub-G 900 MHz
  • Potenza di telemetria: 100mw
  • Frequenza massima di aggiornamento in ricezione: DK500Hz / K1000Hz
  • Frequenza di aggiornamento minima del ricevitore: 25 Hz
  • Tensione di lavoro: DC 4,5 - 8,4 V
  • Peso: 1,3 g (senza antenna)
  • Dimensioni: 22mm * 15mm * 4mm
  • Versione firmware: ExpressLRS v3.5.1 preinstallato
  • Obiettivo FW: RadioMaster XR3 2.4/900 Diversity RX
  • Interfaccia bus 1: CRSF
  • Interfaccia bus 2: UART

Diversità dell'antenna

Il ricevitore XR3 è dotato di uno Skyworks RFX2401C che fornisce un LNA per prestazioni di ricezione migliorate, un PA che fornisce fino a 100 mW di prestazioni di telemetria e commutazione dell'antenna per la diversità dell'antenna.

Ricevitore XR3 Nano Multi-Frequency Antenna Diversity ExpressLRS

Su misura per le tue esigenze

Il ricevitore XR3 è disponibile in tre configurazioni, assicurandoti la flessibilità necessaria per soddisfare le tue esigenze specifiche: scegli tra 2,4 GHz, Sub-G 900 MHz o un'antenna Dual-Band che consente di passare da 2,4 GHz a 900 MHz senza cambiare antenna! Tutti i tipi di antenna sono disponibili come accessori opzionali, così puoi cambiare frequenza in un secondo momento senza dover acquistare un nuovo ricevitore!

Ricevitore XR3 Nano Multi-Frequency Antenna Diversity ExpressLRSRicevitore XR3 Nano Multi-Frequency Antenna Diversity ExpressLRSRicevitore XR3 Nano Multi-Frequency Antenna Diversity ExpressLRSRicevitore XR3 Nano Multi-Frequency Antenna Diversity ExpressLRSRicevitore XR3 Nano Multi-Frequency Antenna Diversity ExpressLRSRicevitore XR3 Nano Multi-Frequency Antenna Diversity ExpressLRSRicevitore XR3 Nano Multi-Frequency Antenna Diversity ExpressLRS

Peso

Ricevitore XR3 Nano Multi-Frequency Antenna Diversity ExpressLRS

Dimensioni

Ricevitore XR3 Nano Multi-Frequency Antenna Diversity ExpressLRS



Il pacchetto include

  • 1 * XR3 Nano Antenna Multi-Frequenza Diversity ExpressLRS Ricevitore
  • 2 * Antenna T (2,4 GHz, 900 Mhz o Dual-band a seconda del pacchetto selezionato)
  • 1 * filo CRSF
  • 3 * Tubo termorestringente
  • 1 * Scheda manuale

Ricevitore XR3 Nano Multi-Frequency Antenna Diversity ExpressLRS
