- The ELRS LBT (Europe) version comes pre-installed with ExpressLRS CE domain LBT FW (output power limited to 100mw)
Description

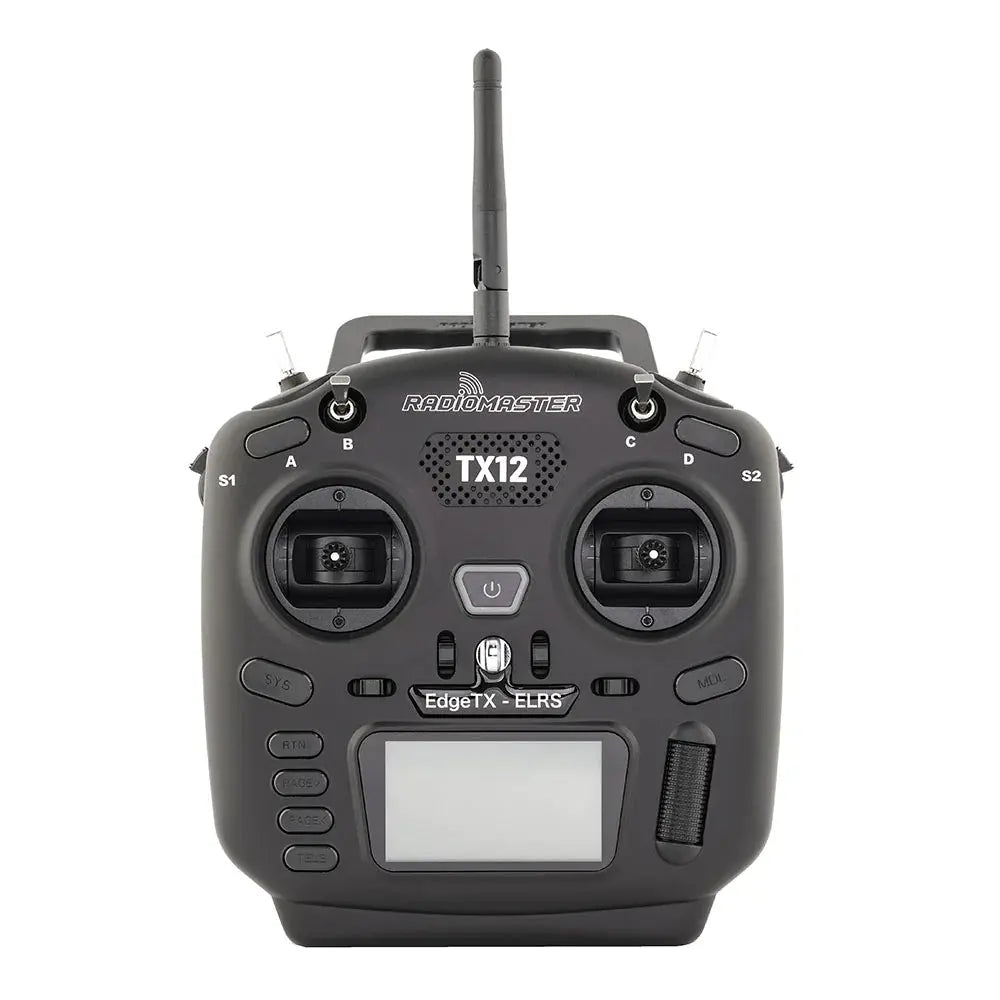

Radiomaster TX12 Mark II RC
The powerful Mini TX12MKII radio has arrived! Many years ago, RadioMaster set out to create the best compact radio in its class. The Radiomaster TX12 Mark II has become the go-to product for pilots looking for a powerful, reliable and infinitely upgradeable open source radio in a small form factor.
Working with the R/C community and open source partners, RadioMaster proudly introduces the TX12 MKII, a class-leading compact radio with updated ergonomics, hardware and software.
Video
Characteristics
- Added internal support for ExpressLRS module
- Main board design updated from STM32F207 to STM32F407
- Improved USB-C QC 3.0 charging
- Precision Hall Effect Gimbal as standard
- EdgeTX operating system installed from the factory
- Updated back case with comfortable grips
- Improved S1/S2 slider grip
- SD card included
- Provide M1 and M2 modes
Specifications
- Article: Radiomaster TX12 Mark II
- Size: 170*159*108mm
- Weight: 363 g
- Frequency: 2.400GHZ-2.480GHZ
- RF Chip: ExpressLRS (ELRS)
- Operating current: 320 mA at 8.4 V (ELRS) / 180 mA at 8.4 V
- Voltage range: 6.6-8.4V DC
- Radio firmware: EdgeTX (transmitter) / ExpressLRS (RF module) / MPM (RF module)
- Channels: up to 16 (depending on receiver)
- Display: 128*64 monochrome LCD display
- Gimbal: High precision studio gimbal
- External module: Compatible JR/FrSKY/Crossfire
- Update Method: USB/SD card and EdgeTX Buddy online software or EdgeTX Companion for PC
- USB Charging: QC3 USB-C
- SD Card: Included
EdgeTX Operating System
Pre-installed with EdgeTX, the RadioMaster TX12 MKII features cutting edge software that is constantly evolving and improving. RadioMaster works closely with the EdgeTX team to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX, ensuring that open standards concepts are continued.
Updated STM32F407 MCU
We have upgraded the main processor from STM32F207 to STM32F407.
FCC version and EU LBT version are available
We currently provide the standard FCC version and EU LBT version. Please check the supported protocols below.
Standard FCC version
- ELRS (FCC) is pre-installed with ExpressLRS ISM FW (maximum power depends on hardware)
LBT EU Version
New Hall Gimbals
With Hall Gimbals, the same chipset as AG01, optimized Hall sensor circuit, improves the center point positioning and temperature stability.
Support USB simulator
Improved USB-C QC 3.0 charging
Large battery compartment
Allows dual 18650 or dual 21700 Li-ion cells or 2S Lipo up to 74×60×22mm.
Expresslrs BLE JOYSTICK MODE
Allows Bluetooth connection to PCs, tablets and phones with BLUETOOTH function to play simulators and games.
*ELRS version only.
Updated design
Radio Overview
Quick Start Guide for TX12 MKII
Recommended Parts
- RP1 ExpressLRS 2.4GHz Nano Receiver
- RP2 ExpressLRS 2.4GHz Nano Receiver
- UFL 2.4Ghz 65mm/95mm T Antenna
- 18650 Battery 2500mAh 3.7V (2pcs)
- 21700 5000mAh battery
- AG01 MINI for CNC room
- AG01 MINI for CNC room (New colors)
- Sticky360 Mini Gimbal Stick End
Package Included
- 1x TX12 Mark II Elrs 2.4G remote control
- 1x Antenna
- 1x USB-C cable
- 1x Quick Guide
- 1x sticker
