Description

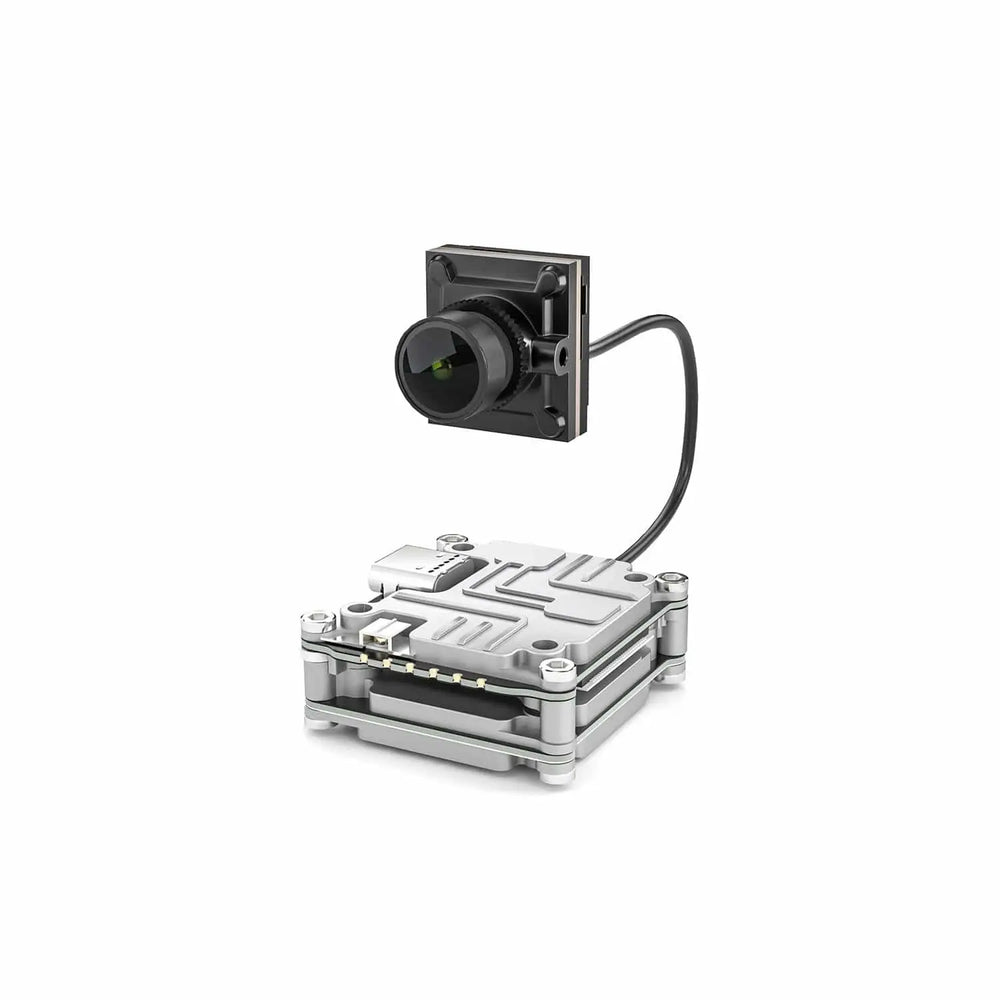

Caddx Nebula Pro Nano Vista Kit
The Caddx Nebula Pro Nano Vista Kit is another advanced video transmission module from Caddx and fully authorized by DJI that supports 5.8GHz digital video signal and 16:9/4:3 switchable image transmission from 1080p to 720p.
The Caddx Nebula Pro Nano Vista Kit is another advanced video transmission module from Caddx and fully authorized by DJI that supports 5.8GHz digital video signal and 16:9/4:3 switchable image transmission from 1080p to 720p. The Caddx Nebula Pro Nano with Vista is designed for FPV drones and can be used with DJI FPV Goggles, which provide high-definition digital images and a transmission range of up to 4km. The Vista system allows up to eight drones to fly simultaneously. Each operator has an exclusive channel, which helps reduce cross-interference and provides an optimal racing experience.
Users can wirelessly connect their Vista Kit to the DJI FPV Remote Controller and DJI FPV Goggles without having to purchase additional receivers, as well as mount it on racing drones!
Characteristics
- Switchable 16:9/4:3 Image transmission from 1080p to 720p
- Caddx Vista Unit with Nebula Pro Nano Camera in Black
- It weighs only 3.5 grams
- Low latency of 28ms
Specifications
Model No.: SZ05-K008B
CADDX NEBULA PRO NANO CAMERA
- Latency: 12-28ms (low latency mode), 30-40ms (high quality mode)
- Image sensor: 1/3 inch CMOS sensor
- Field of view: 150°(D);122°(H);93°(V)°
- Aspect ratio: 16:9 and 4:3 (switchable)
- Dimensions: 16.5x16x14 mm
- Resolution: 720p/120fps
- Lens Size: 2.1mm f/2.1
- Cable length: 8cm
- Aperture: F/2.0
- Weight: 3.5 g
CADDX UNIT VIEW
- Min.latency: (end-to-end) Low Latency Mode (720p 120fps): 21-28ms
- Transmitter Power: (EIRP) FCC/SRRC/MIC: <30dBm / CE: <14dBm
- Maximum transmission distance: FCC/SRRC: 4km / CE: 0.7km
- Output Power: 25mW/200mW/500mW/700mW
- Supported flight control system: F3 / F4 / F7
- High quality mode: (720p 60fps): 30-40ms
- I/O Interface: USB-C port, Ipex3, 3-in-1
- Operating frequency: 5.725-5.850 GHz
- Dimensions: 30x29x13mm
- Weight: 20.8g (unit only)
- Input power: 7.4-26.4V
Package Included
- 1x Caddx Nebula Pro Nano Vista Kit with 8cm Coaxial Cable
- 2 screws M@ 3/4/5 mm
- 1x User Manual
- 1 3 in 1 cable
- 1x antenna
