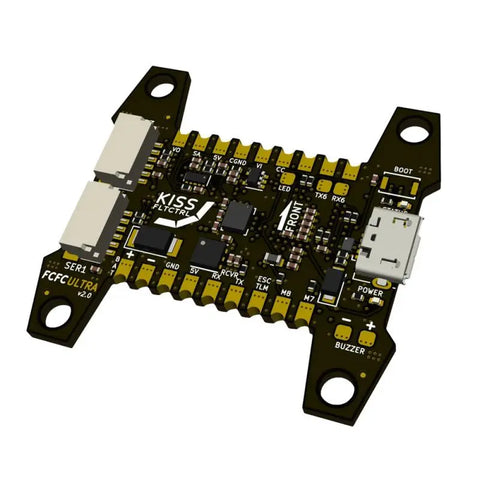

KISS ULTRA FCFC FLIGHT CONTROLLER V2
- Iconic KISS "H" form factor 30.5x30.5mm mounting (with permission from Flyduino)
- STM32H743 480 MHz processor, 2MB FLASH, 1.28MB RAM
- Gyroscope IIM-42652, SPI
- BMP388 barometer
- 8 pin ESC connector, backwards compatible with KISS (!!!not with FETTEC!!!). Includes current sensor pin.
- Extra welding pads for 5-8 engines
- 2 serial ports on 6-pin connectors (SER1 / SER3), KISS compatible
- Surge protection on all data lines
- ESD protection on USB
- 5V BEC (2A) with separate power supply on lipo and USB. 8 capable.
- Integrated tip absorber
- Dedicated current sensor mat
Software improvements
- The firmware is based on the LATEST version of PATREON
- New STM32 H7 bootloader, VCP driver
- One HEX to rule them all...??
- Intelligent configuration storage... NEVER lose your configuration...
- Optimized hardware interface layer code
- Optimized adaptive filter code (CPU load is around 8% at full load!!!)
- Added BLHELI passthrough
- IRC Ghost support
- TBS CSRFv3 support (ultra code)
- Improved RTH with BARO support
- KISS weather station (it's fun)
- There are NO more soft serial ports!
- 7 exposed serial ports (dedicated serial for SA and RC telemetry)
- Camera control (analog, real DAC)
- GPS support UBX protocol
- Battery capacity/warnings
- DSHOT router (free routing between software and hardware channels)
- Supports up to 8 motors with DSHOT2400/1wire
- Full support of all HD systems (DJI MSP, DJI WTF, DJI O3, Walksnail, HD0)
OSD functionality
- Integrated graphic OSD
- No OSD firmware update is required
- Configurable black and white levels, transparency
- FULL KISS setup from OSD
- ESC configuration
- No serial port required, 50fps refresh rate
- Battery cell voltage sensor
- Crossfire Tools
- Hardware test tools (RC test, GPS test, video test, motor test, etc.)
GUI improvements
- Forked GUI code (with permission from Flyduino)
- Renewal of the design, cleaning of the code.
- Removed strange things like pentacopters, cars and other noises.
- Installation-free web GUI available at https://kiss-ultra.com/
- OSD Mirror https://youtu.be/aUqtCTAt8ik
- Native Apple Silicon support
Abbreviations
- KISS: Keep it super simple
- FCFC - Commander Fedor's flight controller
Package Included
- Kiss FCFC Ultra v2
- 8-8 cable
- Cable 8-6 (previous)
