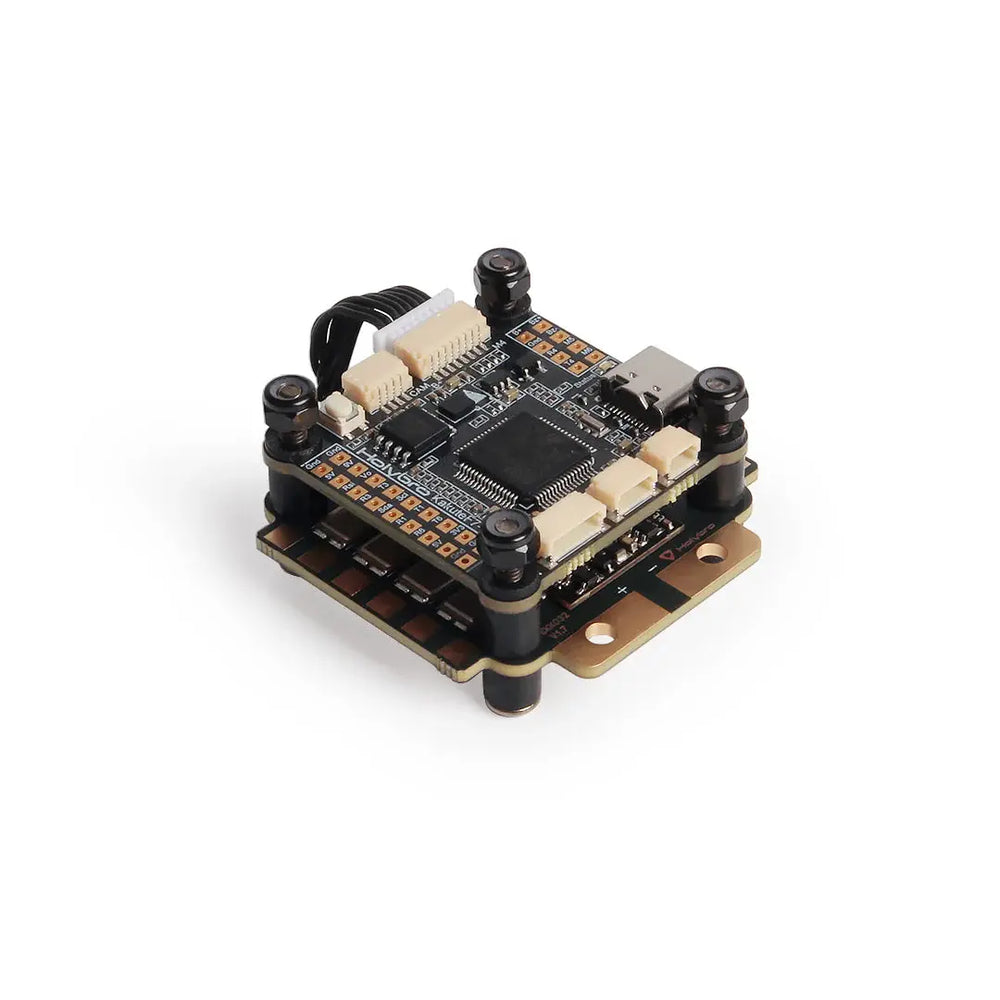

Kakute F722 - Tekko32 F4 Metal 4in1 65A ESC - Stack
FC Features
- High-performance STM32 F722 MCU with speeds up to 216 MHz.
- ICM42688P gyroscope, low noise independent power supply.
- Various ports for quick and easy setup: ESC port, digital VTX port, analog VTX port, receiver port and LED port.
- Built-in analog video OSD, 16Mbyte black box,
- High power synchronous rectifier BEC, supports up to 8S input and provides stable 9V/3A and 5V/2A output.
FC Specifications
- MCU: 32-bit STM32F722 processor, 216 MHz, 256 KB RAM, 512 KB Flash
- IMU: ICM42688-P (SPI)
- Barometer: BMP280
- OSD: AT7456E
- 5 hardware UARTs (UART1,2,3,4,6)
- 7 PWM outputs (6 motor outputs, 1 LED)
- 16 Mbyte integrated for Blackbox recording
- Battery input voltage: 3S - 8S
- BEC: 9V/3A, 5V/2A, 3.3V/0.2A
- Connector
- 2x 8-pin JST-SH ports for ESC
- 1x 6-pin JST-SH port for HD VTX
- 2 x 4-pin JST-SH ports for receiver and analog camera
- 1x 3-pin JST-SH port for LEDs
- USB Type-C
- Dimensions: 3.5x3.5 mm
- Mounting holes: standard 5 x 30.5
- Weight: 8 g
Firmware Goals
- Betaflight Target: KAKUTEF7MINIV3
- INAV target: KAKUTEF7MINIV3
ESC Features
- New and faster F4 150Mhz MCU (vs. F3 108Mhz and F0 48Mhz)
-
PWM Frequency: 16k to 96k
-
MOSFET with metal case for excellent heat dissipation
-
Huge built-in noise filtering capacity of 2068uf
-
3oz copper PCB design to allow for higher current and better heat dissipation
-
Separate drive and control circuit, expand the current capacity of the drive circuit while reducing electrical interference on the control circuit.
150Mhz F4 MCU / Metal Case MOSFET / PWM Output: 16k ~96k PWM / 4~6S / BLHELI32
Powerful and reliable metal case 4in1 MOSFET ESC with smooth control and quick response.
Package Included
- 1x Kakute F722
- 1x Tekko32 F4 metal ESC 4in1 65A
- 1x Electrolytic Capacitor: 1000uF 35v
- 1x 8 pin to 8 pin cable with 1mm pitch and 65mm
- 1x 8 pin to 8 pin 1mm pitch 25mm cable
- 1x JST SH 6 Pin to JST GHR 8 Pin 80mm & 150mm Cable (for DJI/Caddx HD System)
- 1x JST SH 6 pin 100mm cable (for Caddx HD systems)
WIRING DIAGRAM:
MAP PIN ESC
