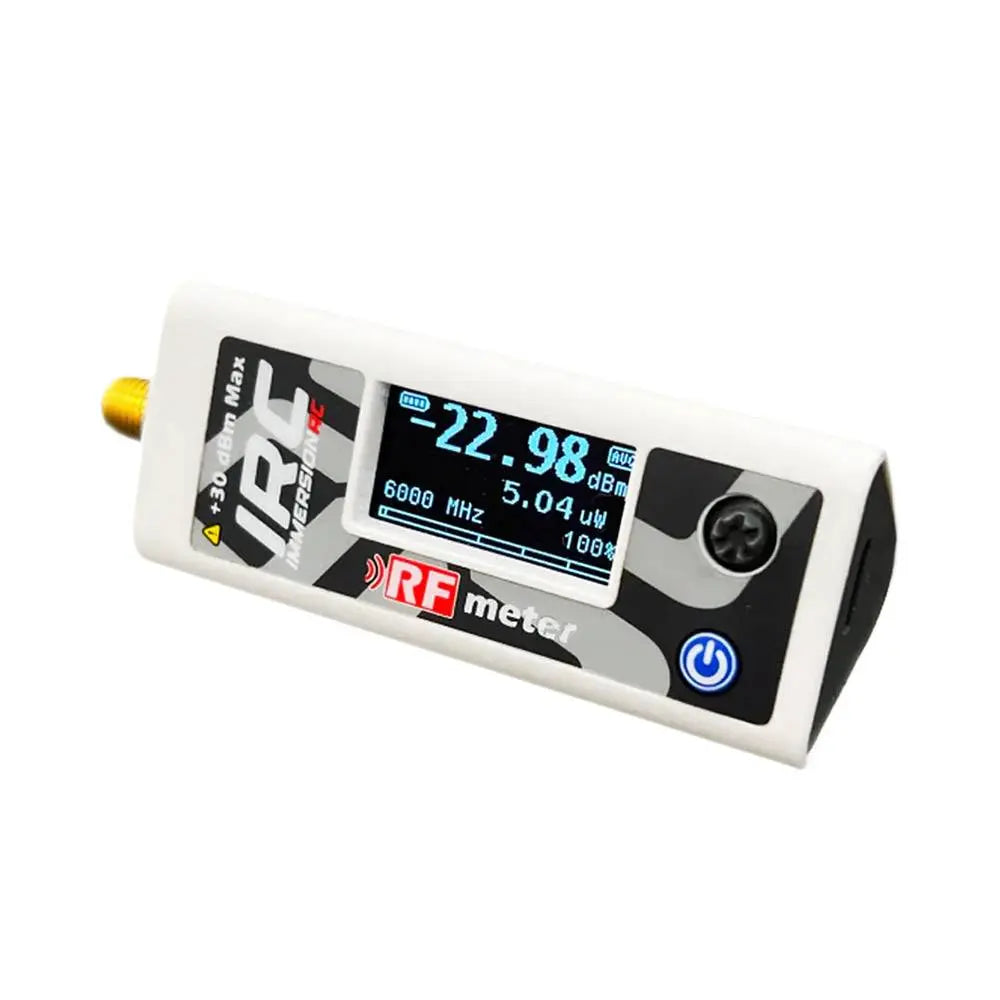

ImmersionRC V2.1 RF Power Meter
FPV is made possible by two RF links, a control link and a video link. Without an RF power meter, a pilot has no way to test these critical RF links. Test equipment for microwave (GHz) links is not cheap. ImmersionRC changed this several years ago and provided their “Power Meter v1” to the FPV community. The v2 is the result of listening to customer feedback. ImmersionRC has added an internal battery, internal attenuator and other features that every FPVer needs.
Accurate RF power measurements
Is the latest whiz-bang hype-train vTx really as good as the datasheet claims? Does it really put out 25mW on all race channels? Is it still putting out 25mW 30 minutes later?
The RF Power Meter v2.1 helps you answer these and many other questions.
In the early days of FPV racing, ImmersionRC pioneered low power racing, where everyone runs 25mW. This became a worldwide standard within months and continues to be the standard today. The Power Meter v2.1 gives you the measurement tool you need to test your transmitters before you get blown away by your next race.
Non-contact race compliance
Are you ready to test your video transmitter before the hammer comes out?
With the included stubby dipole, the RF Power Meter v2.1 is all you need to do a rough power test on any FPV rig, even without unscrewing the antenna. Calibrate the meter on a “known good” rig and walk the starting grid testing every quad ready to race. Quads accidentally set to high power (ready for the hammer) or those with hardware/cable/connector/antenna issues putting out a few micro-watts are identified before the first gate.
We call it “Scully Mode” for a reason. Joe Scully, the industry’s top FPV MC, has perfected this testing technique to ensure successful racing in all four corners of the globe.
PowerScope Mode
So you know that “packets” of data are flowing from your R/C Tx, or long range system, to your model… but what if you could “see” them? The PowerScope mode of the RF Power Meter v2.1 gives you a visual representation of the power your radio is putting out. How fast are the packets going out? Are your radio’s multitude of antennas working? Where are they? What orientation? You can even spot transmitters that are compliant with LBT (listen before you speak) or Duty Cycle limitations.
Yes, it's a geeky tool, but it impresses the opposite sex!
Average and peak measurements
Analog video transmitters emit a steady stream of RF goodness. R/C controllers emit a pulsed stream of goodness (going in the opposite direction). The RF Power Meter v2 can provide accurate power measurements for both types of RF signals.
Built-in lithium-ion battery
The v2.1 features a built-in lithium-ion battery that will power the meter for at least 8 solid hours. With automatic shut-off after periods of inactivity, a single charge will power your meter for days on the trail. Rechargeable using a standard micro-USB connector in under an hour.
Specifications
Power level: -20dBm up to +30dBm
Calibrated frequencies: 35, 72, 433, 1200, 2400, 5600-6000 MHz in 50 MHz steps
Accuracy: +/- 0.5dB
Attenuator: 30dB (internal)
Battery: 3.7V Li-ion cell, size 10440, 600mAh
Current consumption: ~35mA
Battery life: ~8 hours
Auto Power Off: 5 minute timeout
Charging: Micro USB cable
Display: OLED, 128×64 pixels, monochrome
User input: Joystick
Interfaces: USB, Power control via CDC
Antenna: 5.8GHz "Sniffer Antenna" (~2dBi linear polarization dipole)
Adapter: SMA Male to Male Adapter
Resources
Package Included
1x ImmersionRC V2.1 RF Power Meter
Manual
