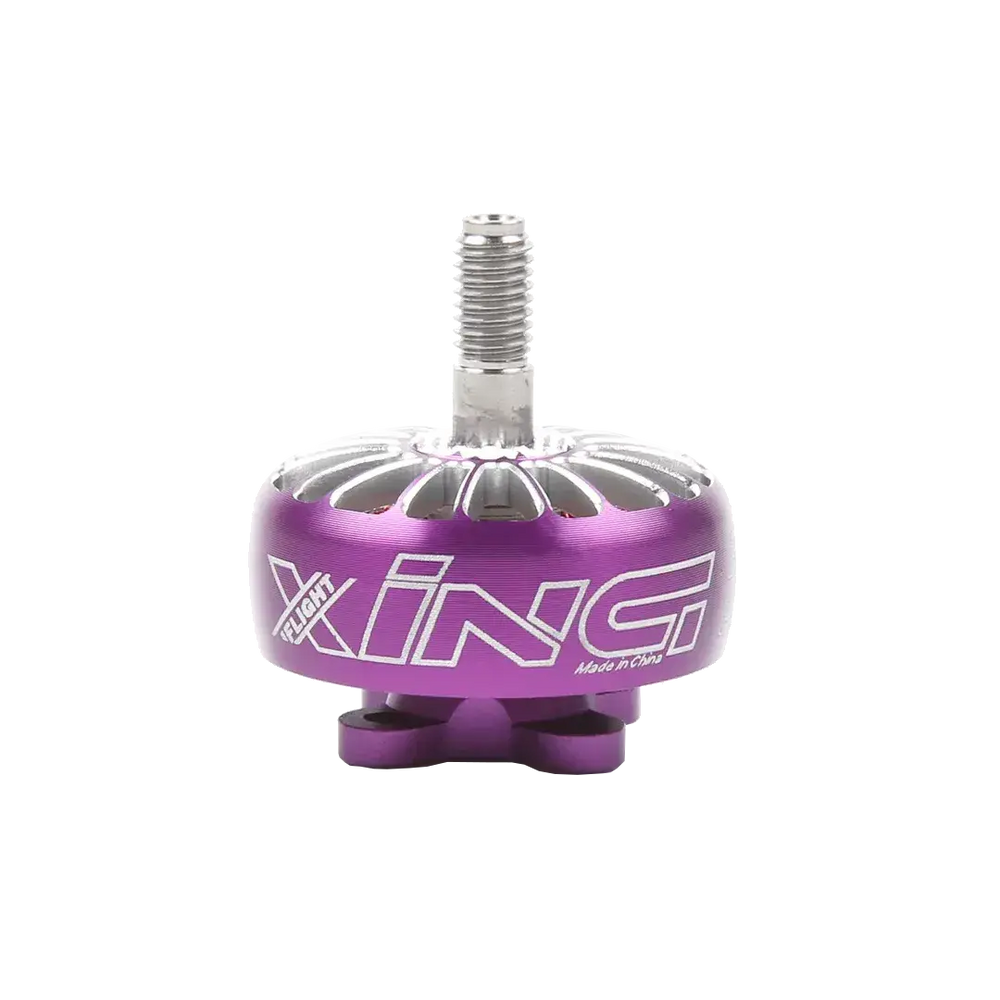

Iflight XING 2306 2-6S
By combining IFlight's high-quality engine manufacturing technology with Patrick Xing's technical expertise, a top-of-the-line engine has been produced.
iFlight XING provides the most incredible power and thrust in the lightest weight.
The elliptical body, powerful stator with N52H magnets and very small air gap make the iFlight XING series motor incredible new style motors.
iFlight continues the tradition of making the best and most suitable products to offer different sizes and KV values to meet the different needs of pilots.
The shaft made of 4mm titanium alloy and high quality N52H magnets surrounded by high temperature resistant windings.
It means that the iFlight XING series motor can be pushed to the limit. The sturdy construction and high-quality materials make the iFlight XING perform like a beast.
There is a non-slip design on the contact surface of the iFlight XING motor and propellers to increase friction and improve durability; Multiple heat dissipation hole design helps to continuously dissipate heat;
Standard mounting pattern M3 16mm*16mm at the bottom, suitable for all frames on the market;
160mm motor cable length can meet different requirements whether connecting a single or 4 in 1 ESC; Each motor has been dynamically balanced, all have passed the highest standards of iFlight manufacturing and assembly procedure.
Characteristics
- Unibell design
- Elliptical body, high strength titanium alloy shaft
- Large heat dissipation holes design (15℃ reduced compared to the same range motor)
- Crush-resistant damping pad, effectively eliminate vibration
- Optimal throttle output of 50%-80%, better efficiency
- 160mm cable length for different frames and setups
- Bell and base in 7075 aluminum with high precision CNC machining
- 220℃ Pacific heat resistant copper wire, solid wire winding
- Magnets and stator electromagnetically coupled
- Japanese iron core Kawasaki 1200
- N52H High temperature magnets
- Protected motor wire
- Hex bolt shaft set screw
- Dynamically balanced
- 32.9g with threads
Specifications
- Model: XING 2306 Engine
- KV: 1700KV/2450KV
- Weight (wire included): 33.1g / 33.4g
- Size: φ29.5*18.7mm
- Interphase resistance: 76..4mΩ / 47.3mΩ
- Peak Current: 37.2A / 44.57A
- Maximum Power: 893W/748.8W
- Shaft diameter: 23mm
- Protruding shaft length: 6mm
- Configuration: 12N14P
Package Included
- 1 XING 2306 engine
- 1 set of accessories
