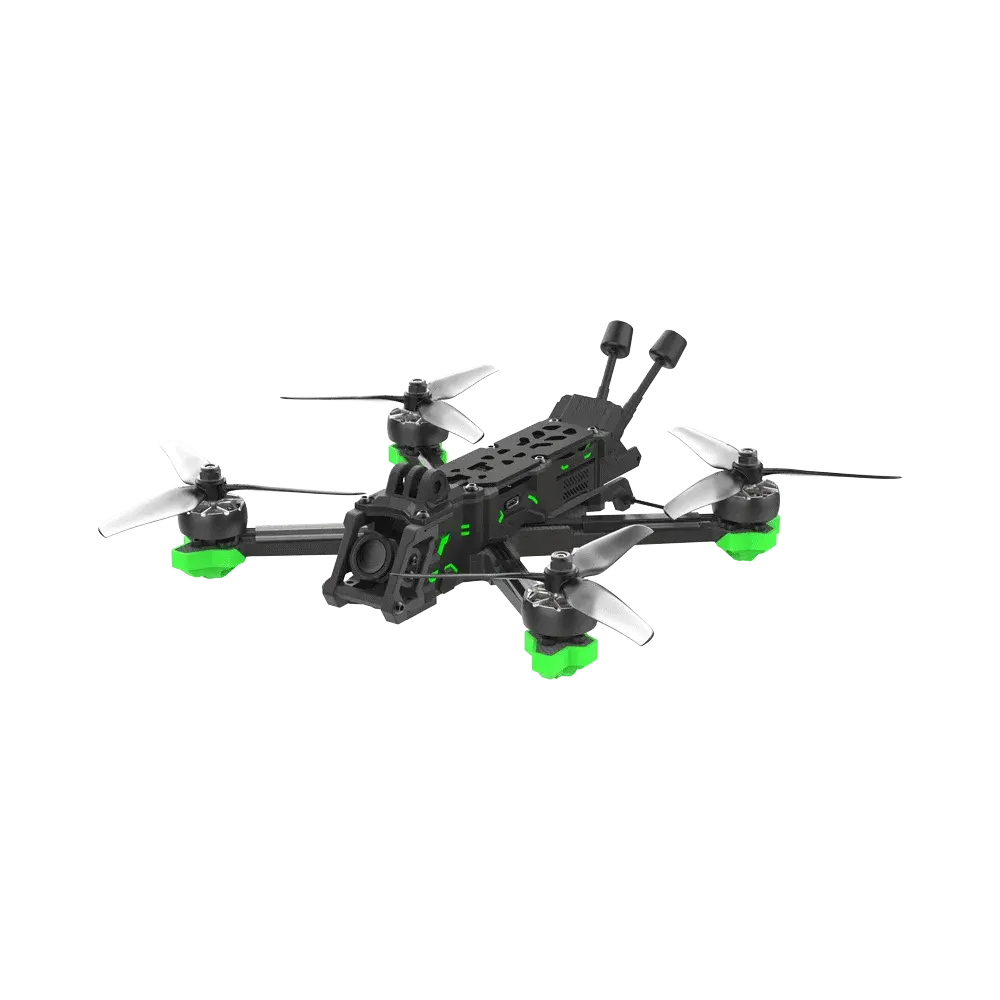

iFlight Nazgul Evoque F5X V2 HD (DJI O3)
The Evoque HD F5 V2 will connect to your DJI FPV V2 remote controller. The flight controller and drone allow you to connect your third-party receiver such as ELRS, Frsky or Crossfire. This drone is compatible with DJI FPV V2 or DJI Goggles 2 .
Characteristics
Smooth and powerful XING2 motors
iFlight's latest upgrade to the best-selling XING motors! The bell is made of one piece of metal, the titanium shaft is reinforced with a sturdy metal joint, and the bell is made of shock-resistant 7075 aluminum. In addition to the smooth and long-lasting Japanese NSK bearings, the N52H curved arc magnets with center groove are protected by our XING O-ring bushing.
Latest Nazgul frame for maximum protection
Covering your electronics in dirt and wet grass every time you crash is the old way of doing things. With our latest frame, it is much harder for dirt and grass to build up on your flight controller and ESC, making it less likely for your flight controller and ESC to fail or short out. Airflow keeps components cool and clean without reducing weight or performance. Illuminated side panels and TPU protective parts protect your components from all angles while adding style to your FPV quadcopter drone.
DJI O3 HD Air Unit Low Latency Digital Transmission
Enjoy clear and smooth real-time views in your goggles even in situations where there is interference, with a transmission range of up to 10 kilometers as claimed by DJI.
Stabilized 4K video with 155° ultra-wide angle
In addition to providing high-end stabilized imaging performance, the O3’s onboard video produces stunning images that will keep your audience engaged throughout the entire flight video.
Battery plug protected with spark filter
When connecting a battery, a spark can occur as the high battery current flows into the low ESR capacitor, causing the ESC capacitor to fill with enough capacity to cause a spark at the connector. A protection circuit has been added to the XT60 connectors on your Nazgul V2 drone to protect them from rapid voltage or current spikes and extend the life of your electronics.
Specially designed heat sink for DJI O3 HD Air Unit
The DJI O3 video transmitter has been updated to provide improved cooling performance via iFlights Heat Synchronization. A custom CNC heatsink has been added to ensure it dissipates heat efficiently at higher power levels.
Specifications
Product Name: Evoque F5 V2
- FC: BLITZ Mini F722 flight controller
- ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
- Video Transmission: DJI O3 Air Unit
- Frame Wheelbase: 225mm (Squashed X) / 223mm (DeadCat)
- Engine: XING2 2207 engines
- Prop: 5" Nazgul propellers
- Weight: 445 grams
- Takeoff weight: approx. 610 g
- Dimensions (L×W×H):180×180×80 mm
- Diagonal distance: 120 mm
- Maximum speed: 130 km/h (manual mode)
- Maximum take-off altitude: 5000 m
- Maximum mouseover time: approx. 8 minutes
- Maximum flight distance: 5km
- Maximum wind speed resistance: 100 Km/H (Level 5)
- Operating temperature range: -10° to 40° C (14° to 104° F)
- Antennas: Dual antenna
- GPS sold separately
- Battery Connector: XT60
Product Name: DJI O3 Air Unit
- Communication frequency: 2.400-2.4835GHz (RX only) / 5.725-5.850GHz (RX and TX)
- Communication bandwidth: maximum 40 MHz
- Live View Quality and Latency
- With DJI FPV Goggles V2:
- 810p/120fps Video Transmission Quality: Video transmission latency is less than 28ms.
- 810p/60fps video transmission quality: Video transmission latency is less than 40ms.
- With DJI Goggles 2:
- 1080p/100fps Video Transmission Quality: The video transmission latency is only 30ms.
- 1080p/60fps Video Transmission Quality: Video transmission latency is only 40ms.
- Maximum video transmission bitrate: 50 Mbps
- Maximum video transmission range: 10km (FCC), 2km (CE), 6km (SRRC)
- Audio Transmission: N/A
Recommended Parts
- Tattu R-Line Version 4.0 1400mAh 22.2V 130C 6S1P XT60
- Tattu R-Line Version 5.0 1400mAh 22.2V 150C 6S1P XT60
- Tattu R-Line Version 4.0 1550mAh 22.2V 130C XT60
- Tattu R-Line Version 3.0 1550mAh 22.2V 120C 6S1P XT60
- Tattu Funfly 1550mAh 22.2V 100C 6S1P XT60
Package Included
- 1x Nazgul Evoque F5X 6S HD (DJI O3)
- 2x antennas
- 1x Battery Pad
- 2x Propellers (pairs)
- 2x Drum Straps
