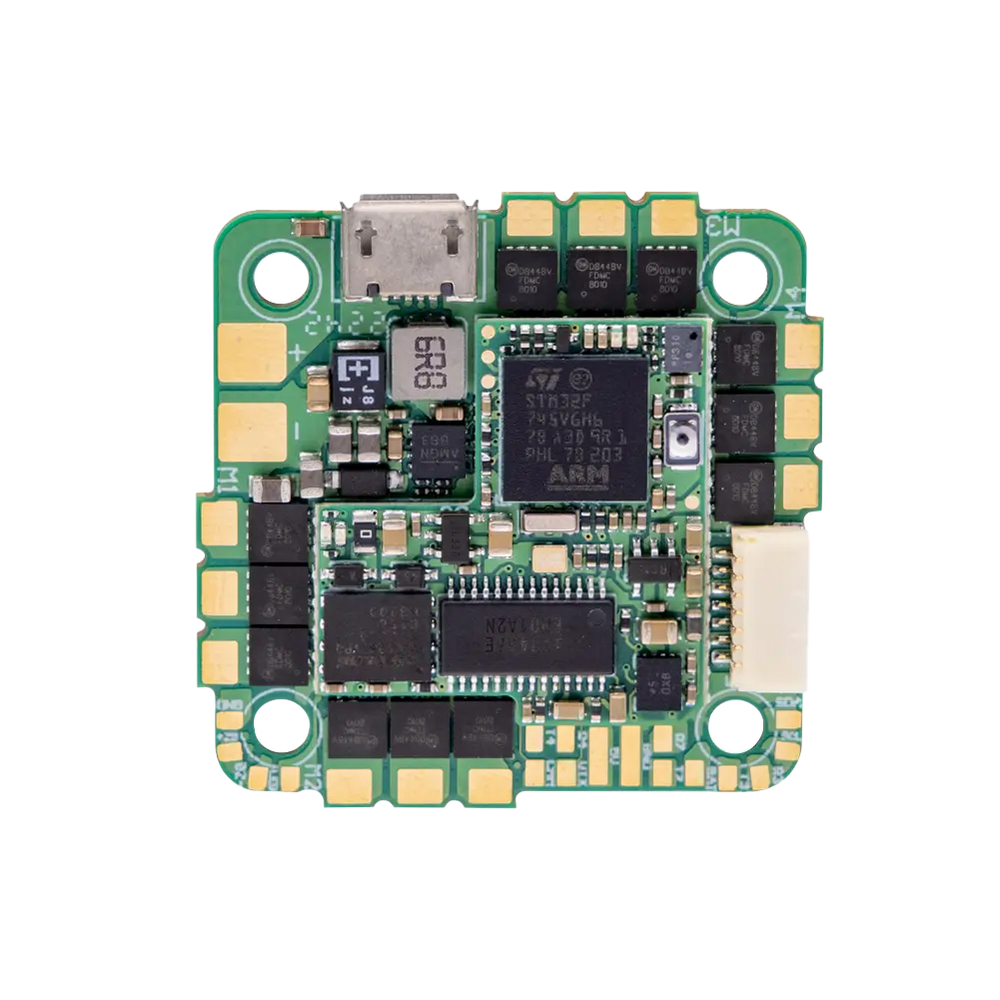

Characteristics
Separate flight control board to minimize electric gyro noise
DJI O3 pass-through and Caddx Vista/Polar connector
The FC PCB can be disassembled from the ESC PCB; Repair permitted!
MCU: BGA-STM32F745, 216MHz
OSD: AT7456E
Black Box: Built-in 16MB Flash
Gyroscope: DPS310
MCU: BGA-STM32F745
Gyroscope: BMI270
Black Box: Built-in 16MB Flash
BEC Output: 5V 2.5A
WS2812 LED Strip: Yes
Buzzer: Yes
Barometer: DPS310
Connector: Micro-USB
OSD: IFLIGHT OSD (AT745E)
FC Firmware:IFLIGHT_BLITZ_F7_AIO
Mounting Pattern: 25.5 x 25.5mm φ3mm
Size: 35*35mm
Weight: 10.5g
BEC: 5V 2A/3A
Input voltage: 2-6S, support LIHV battery
Smartaudio / IRC Tramp VTX protocol supported
MCU ESC: BB21
Drivers: FD6288
Input voltage: 2-6S Support LIHV battery
Output current: 55A, peak value 65A (10 seconds)
ESC Firmware: QH-40 - Bluejay, 0.16, 24kHz
Current sensor: ratio 200 (1/10mV/A)
ECB: NO
ESC Telemetry: NO
Bidirectional DShot: Yes (need to use Bluejay firmware)
Supports DShot DShot150/300/600/MultiShot/ OneShot etc.
Package Included
1 AIO BLITZ F7
2 capacitors 470uF/35V
1 x XT30U Male 18AWG 70mm Cable
1 x 1.0-7P 50mm-28mm cable
1 x 50mm 1.0-7P Cable
4 x M2 silicone sealing rings
8 x M2 x 12mm screws
8 x M2 clear nylon nuts
10pcs 0.8mm 10mm Black Heat Shrink Tubing
