Characteristics
Built-in microphone
4 power levels up to 2500 mW;
40 channels (including Raceband)
Quick frequency lock, no startup interference with other drivers
Built-in output power self-monitoring functionality

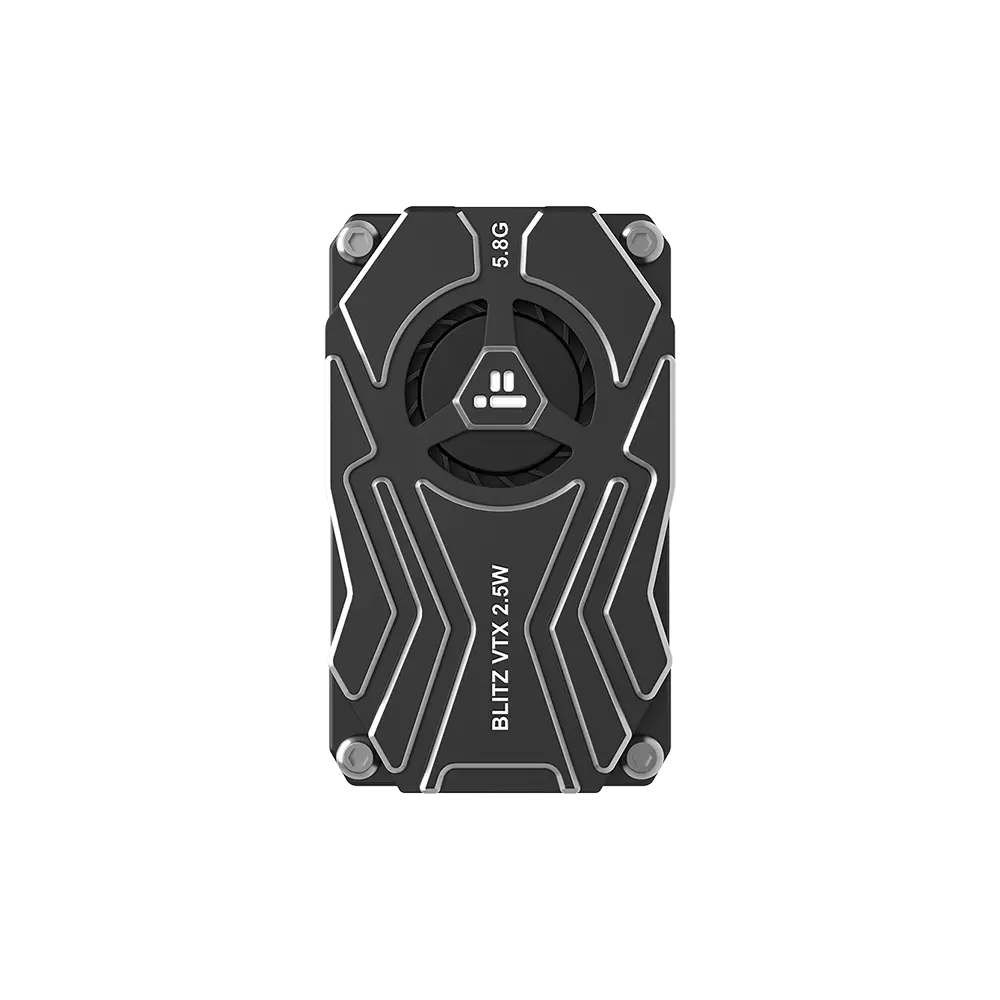

The CNC cooling casing, together with a built-in cooling fan, provides double heat dissipation effect.
Suggestions
VTX is set to 25mW by default! Power levels above 25mW require a HAM license or must be approved by local authorities! Make sure you fly on legal frequencies and use our Betaflight VTX tables prepared according to your region.
Specifications
Input Voltage: 7V~34V
Interface: MMCX
Power Levels: PIT/25mW/400mW/1000mW/2500mW
Channels: 40 (including Raceband)
Mounting Pattern: 25.5x25.5mm/Φ1.6
Lightweight: 32g (excluding antenna)
VTX Telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Download the attached VTX table for Betaflight!
RC Tramp VTX table values: 25 mW/400 mW/1000 mW/2500 mW
Power Button:
Press and drill for 2 seconds: enter or exit PIT mode, solid green light indicates entering PIT mode
Short press: Green light (output power): The number of flashing LEDs indicates the output power of the VTX. 1 flash=25mW, 2 flashes=400mW, 3 flashes=1000mW, 4 flashes=2500mW. Short press to change the output power.
Band and Channel button
Press and drill for 2 seconds: Red (BAND): The number of flashing LEDs indicates BAND AR. Press and hold for 2 seconds to change bands.
Short press: Blue (CH): The number of flashing LEDs indicates the channel from 1 to 8. Short press to change channels.
VBAT: 2-8S positive input, 7-34V DC
GND: negative
5V output: 5V voltage output
IRC: IRC stray signal input
GND: negative
Video input: video signal input
Camera input: camera video input
Camera Output: Camera video output
Package Included
Please read the instructions for correct wiring before use. It is recommended before turning on the power, make sure the antenna has been installed, it can extend the life of the module. It is recommended to ensure the correct voltage range and the correct positive and negative polarity before turning on the power to avoid burning the components. Please keep enough space when installing the VTX to ensure air convection around the module for heat dissipation. Otherwise the module will activate overheat protection and power transmission will be reduced or even stopped
