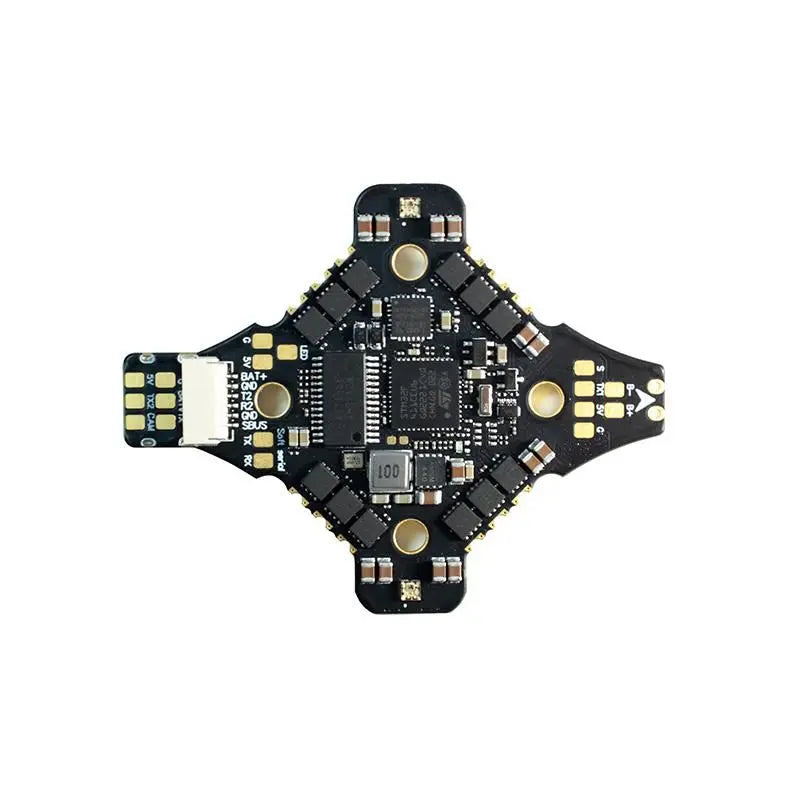

HOMFPV F411 35A AIO FC
Question: What is the advantage of our F411 35A AIO FC products over traditional FC+ESC stack?
Answer: Weight because it is an AIO, instructions included with good details, USB C connection, soft serial for additional UART output, LED and Buzzer The only thing I would add would be the VTX pit switch and this would be a great stack for the works in 4S racing Great! I have to test on 6S since many pilots are using 6S now
————CEO of Gankmultirotors-Matt GankMan
Characteristics
- 35A ESC, supports 2-6S, can be used in 4"-5" custom chassis (some drivers have already done this)
- MOS tube life increased by 35%, not easy to burn
- STM32F411 high-performance processor
- Diamond structure design, suitable for HOMFPV Micron and Unicorn
- It weighs only 8.9g, including instructions with good details
- USB C connection, directly use Tpye-C cable to access BetaFlight tuning
Technical specifications
Appearance size: 56.8*45*1.4
mm Hole spacing: 20*20mm
Type USB Type-c
Weight: 8.9g
Main MCU: STM32F411
OSD:
AT7456 gyroscope: box
black MPU6000 : none
BEC output:
barometer 5V/1.5A:
Optional ESC current: 35A
ESC input voltage: 2-6S
UART: 3 groups
RSSI: NO
BUZZ: NO
CURR: Yes
TVS Power Protection: Yes
FC firmware: STM32F411AIO
ESC Firmware: BLHeli_s GH-30
Package Included
- 1x HOMFPV F411 35A AIO FC
