Tekko32 F4 Metal 4in1 ESC(65A)

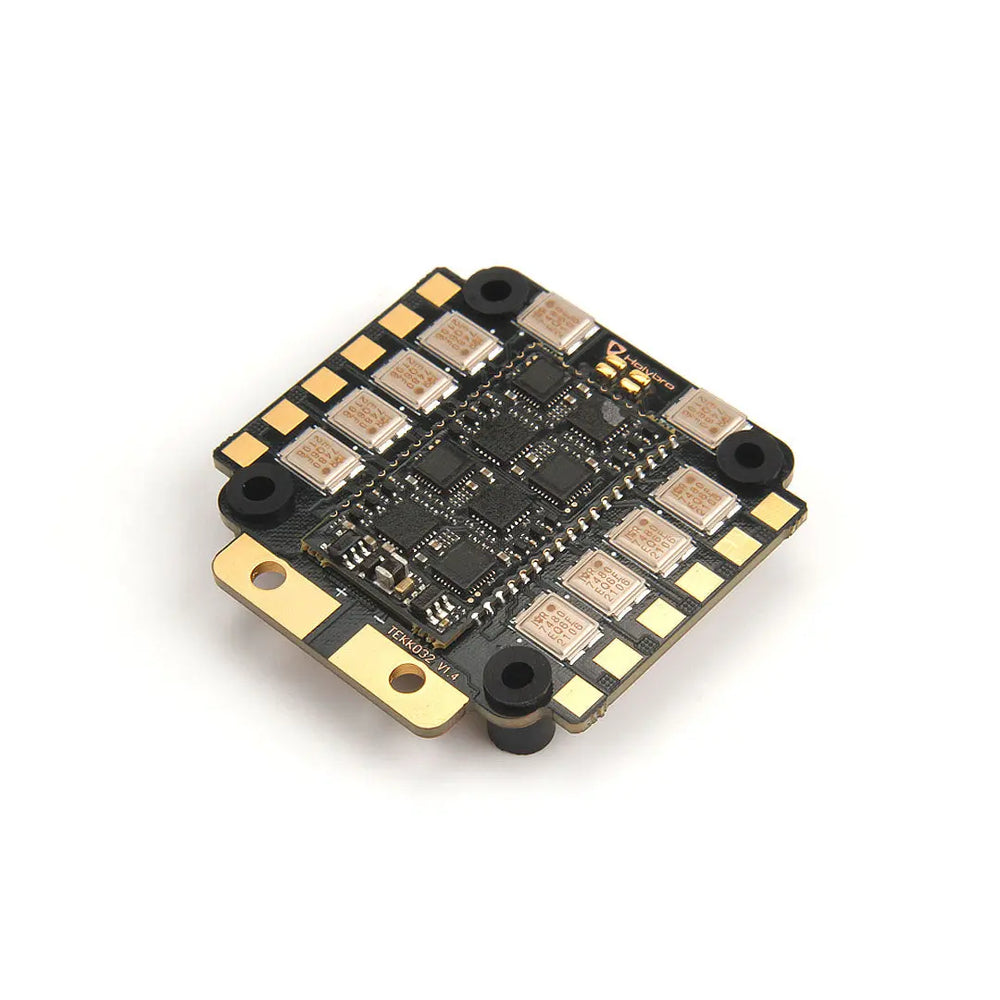

Holybro Tekko32 F4 Metal 65A 4in1 ESC
F4 MCU / BLHELI32 / Mosfet with metal case / 128K PWM output / 4~6S
The new BLHELI32 ESC adapted the F4 MCU, which will provide smoother control and faster response speed.
Technical specifications
● MCU F4 (M4 Core) 108Mhz with BLHELI32 firmware
● Maximum PWM output up to 128K (default 96K)
● The 4in1 has an integrated analog current sensor and TLM function (so no current reading on TLM)
● Uses a metal mosfet for better heat dissipation
● No BEC output
● Supports Lipo 4-6S
● Additional capacitor needed for 6 seconds (1000uf 35V for use in 6 seconds.)
● Dimensions: 43 x 44 mm
● Mounting holes: 30.5 x 30.5 mm (M4)
● Weight: 15.8g
I notify
Airflow is very important if you want to run this 4in1 at high current.
The input wire (Lipo to 4in1) should be at least 12AWG and well soldered.
Package Included
- Tekko32 F4 Metal 4in1 65A ESC *1
- M3 Insert
- anti-vibration silicone cable gland *4 Electrolytic capacitor: 1000uF 35v *1
- 8 Pin to 8 Pin 65mm Pitch Cable *1 8 Pin Cable
- pin to 8 pin pitch 1mm 25mm *1
