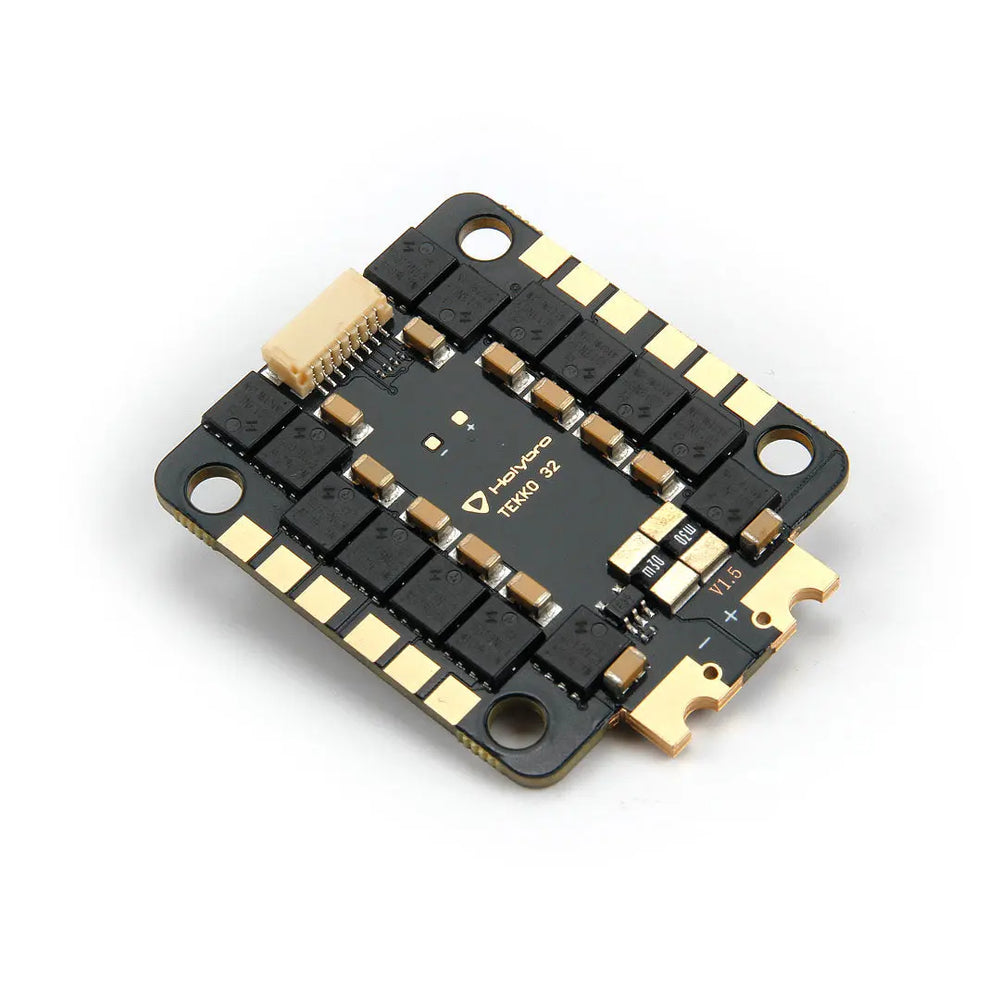

Holybro Tekko32 F4 4in1 50A ESC
F4 MCU @150Mhz / PWM output up to 96K / 4~6S / BLHeli32 / 30x30
The brand new Tekko32 is the first 4in1 ESC on the market to adapt the fast F4 MCU @150Mhz, providing smooth control operation and fast response.
Characteristics:
New and faster F4 MCU at 150Mhz (compared to F3 at 108Mhz and F0 at 48Mhz)
PWM output up to 96K (default 48K)
Separate drive and control circuit, this expands the current capacity of the drive circuit by reducing electrical interference to the control circuit.
Technical specifications
Continuous current: 50A x4
Burst current: 60A x4
Support 4-6S battery
Supports DShot 150/300/600/1200 and MultiShot/OneShot/Proshot/PWM etc.
ESC telemetry supported
Integrated analog current sensor
No BEC output
BLHeli_32 firmware
1000uf 35V capacitor included (highly recommended for 6 second installation)
Amperage meter scale ratio: 168
Dimensions: 45x37x6 mm / Weight: 13.8 g
Mounting Holes: M4 30.5x30.5mm (M3 eyelets included)
Pin map
Package Included
- Tekko32 F4 4in1 50A ESC *1
- M3 Insert
- anti-vibration silicone cable gland *4 Electrolytic capacitor: 1000uF 35v *1
- 8 Pin to 8 Pin 1mm Pitch 65mm Cable *1 8 Pin Cable
- 8 pin pin 1mm pitch 25mm *1
- Download: Tekko32 F4 4in1 50A ESC SPEC V1.5
