Atlas HV 5.8G 3W VTx
Specifications
| Frequency | 5.8G 5 bands: A, B, E, F, R Broadcast channel: 37 |
| Operating mode | Key button, Smart Audio |
| Transmission power | Switchable: PIT, 25mW, 3000mW |
| Antenna connector | MMCX |
| Power input | 7-36V DC |
| Current consumption | 800mA/12V DC @ 3000mW |
| RF Impedance | 50Ω |
| Video input impedance | 75Ω |
| Input video width | CVBS 0.8~1.2VP-P |
| Video format | NTSC/PAL |
| Size (L*W*H) | 40.8mm*24.8mm*13.3mm |
Description of the indicator light
- N. 1 Power light
- Off: 25mW
- Fixed: 3000 mW
- Flashing - PIT Mode
- #2 Frequency indicator light
- The first frequency of each frequency band is always active and flashes when changing.
- #3-#7 Frequency band lights
- N. 3 - Frequency band F
- #4 - Frequency band E
- #5 - A frequency band
- #6 - Frequency band R
- #7 - Frequency band B
Instructions for using the function buttons
- To change frequency : click the button, the red light flashes and goes out, then you can switch to the next frequency.
- (Note: The red light of the first frequency of each frequency band is a constant light indicator)
- To change frequency band : Press and hold the button for 2 seconds. When the blue light flashes, release the button to switch to the next frequency band.
- To change power : press and hold the button for 4 seconds

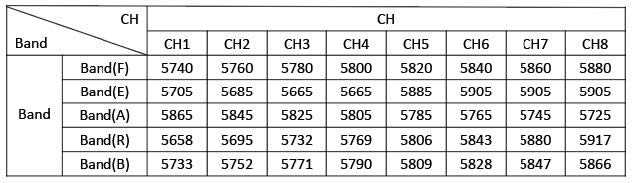

Frequency table
Package Included
- Atlatl HV 5.8G 3000mW VTX *1
- SMA--MMCX Cable 80mm *1
- JST SH 70mm 6-Pin Cable *1
