Characteristics
*Replaceable arms for quick disassembly without dismantling the entire frame
*A fixed power socket for convenience and protection of the power cord from being cut by the propellers
*Pre-installed GPS for added remote safety with GPS save mode
*Dust straps covering both sides to better protect your rig and keep it clean
*CNC aluminum side plates combined with 3D printed parts to make your drone look awesome!
*The aluminum body parts optimized for Sector D5 for DJI O3 VTX, and with the printing fixing method, the lens is fixed by printing to effectively reduce low-frequency vibration, improve shooting stability, and reduce video gelatin in flight.
*Newly updated configuration, SPECTRE F760 features the SPECTRE 2306.5 motor, which provides smoother control, better feel and quicker response.
Specifications
- Frame: Sector D5 FR Frame
- FC: SPECTER F722 MINI
- MCU: STM32F722
- GYRO: MPU6000
- FC Firmware: HGLRCF722 MINI
- ESC: SPECTER 60A 4in1 ESC
- Continuous current: 60A
- Peak current: 65A (10s)
- ESC Firmware: BL32 (SPECTER60_G_128)
- VTX : ZEUS 800mW VTX / VISTA HD / DJI O3 HD Air Unit
- Motor: SPECTER 2306.5 1900KV(6S)
- GPS: M80
- GPS Propeller: HQProp S5 5 inch 3 blades
- Size: 230mm*184mm
- Wheelbase: 225mm
- Weight: DJI O3 433.52 g (without receiver)
- Battery connector: XT60
Recommended Parts
- Tattu FunFly 1300mAh 22.2V 6S1P 100C XT60
- Tattu Funfly 1550mAh 22.2V 100C 6S1P XT60
- Tattu R-Line version 3.0 1300mAh 22.2V 6S1P 120C XT60
- Tattu R-Line Version 4.0 1550mAh 22.2V 6S1P 130C XT60
- Tattu R-Line 1700mAh 22.2V 95C 6S1P XT60
Package Included

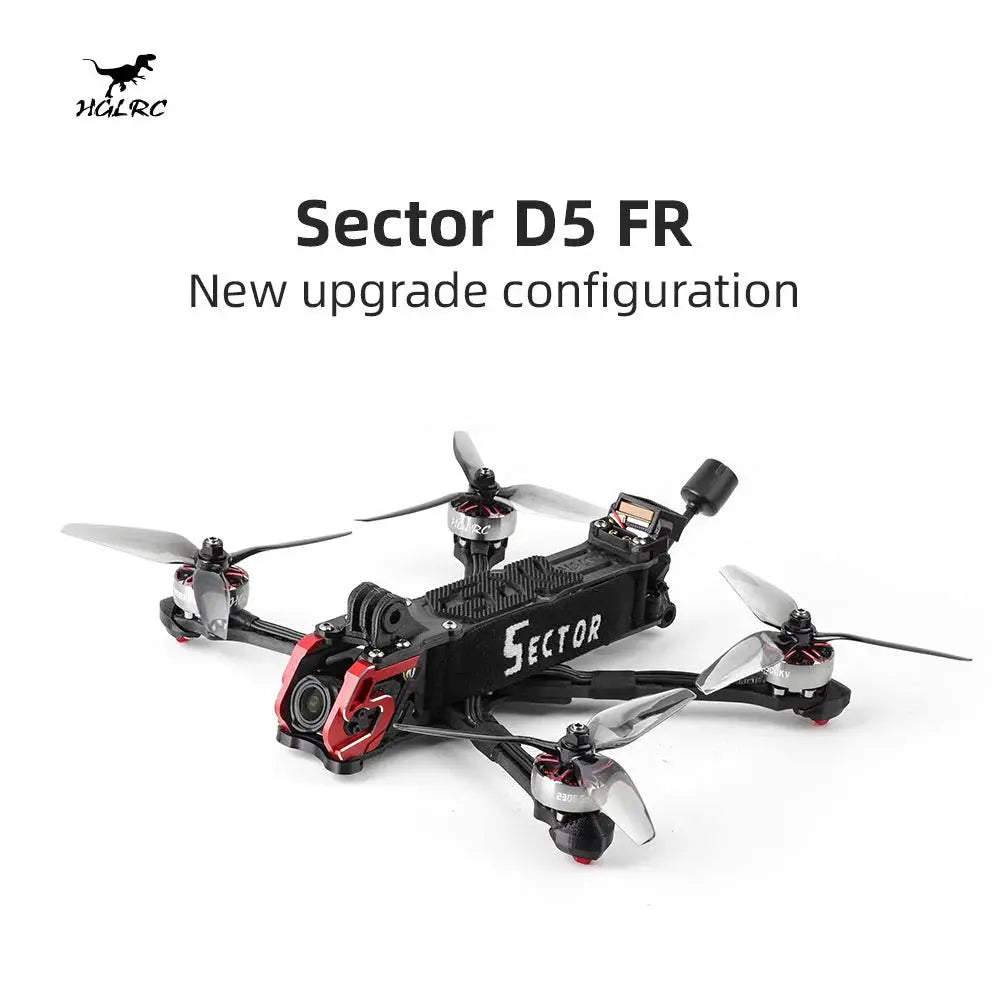

- 1x HGLRC Sector D5 FR drone
- 1x SMA Hammer mini antenna
- 2x 20*250mm battery straps
- 8x HQProp and Ethix S5 propellers
- 1x Receiver (optional)
