After HGLRC W2812 LED Controller has been the best-selling model aircraft model for many years, this time HGLRC brings you a brand new and upgraded MINI LED HGLRC Controller
Characteristics
1. Switch modes with one click Eliminate tedious adjustments of computer parameters
2. Reserved Pad Matches all LED Connections
3. Reserve two modes of parameter adjustment Can be directly connected to 2-6S power supply Or connect the flight controller to perform remote control parameter adjustment.
4. Add electronic switch function You can set the remote control switch
5. The size will be smaller after the update. The installation is more convenient
Note : Mini LED Controller: A single channel can only light up to 48 lamp balls. If you need to connect a long light strip, it is recommended to use a COB light strip.
Technical specifications

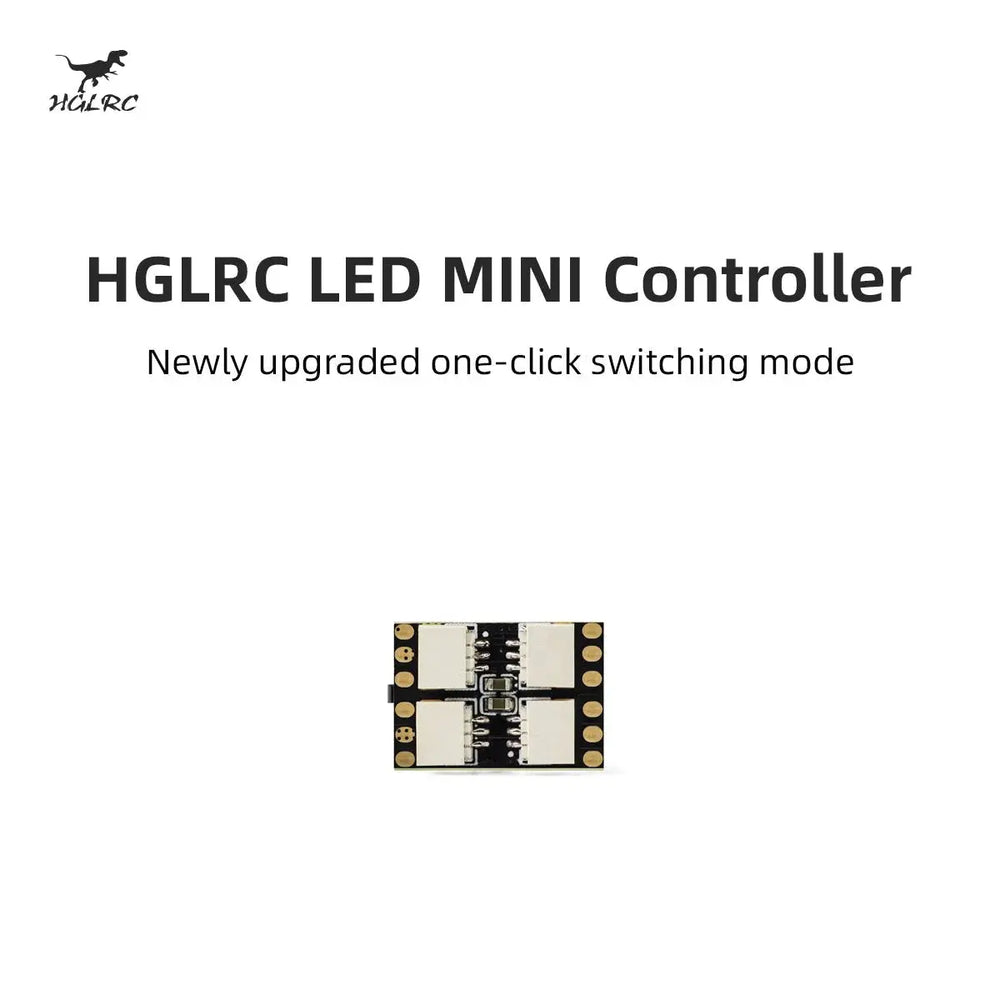

MINI LED HGLRC controller
Input Voltage: 2-6S (7.4-25V)
Size: 17mm*12.5mm*6.5mm
Weight: 1.47g (single)
LED function buttons
1. Short press to change color
2. Press and hold for 3 seconds to enter the flashing mode switch (LED status indicator is always on)
3. Flashing mode: slow flashing, steady light, cycle, fast flashing
4. Can be switched to blue, red, green, yellow
Package Included
- 1x HGLRC LED MINI Connection cable Controll
- 4x 30AWG 100 mm (red, black, yellow and green)
