The new 0702 brushless motor has been released and will gradually ship starting from May 2023.
The lightest brushless motors in the world, the weight is only 1.46 grams.
You can build a little scream of extreme weight with these great engines.
Big thanks to " Angry Don FPV " for the great work on this lightweight 0702 engine.

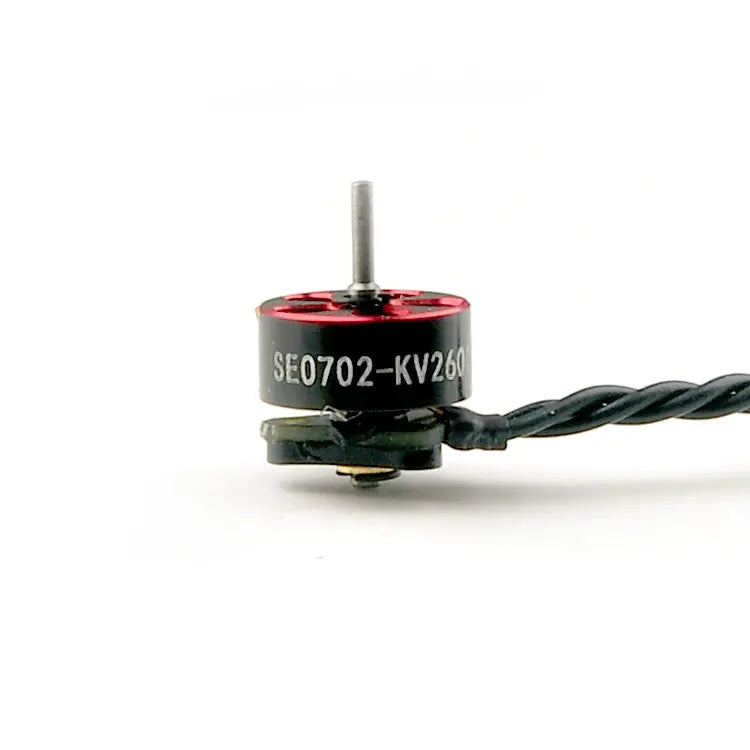

Brand: Happymodel
Mode: SE0702
KV Option: KV23000 KV26000 KV28000
Configuration: 9N12P
Stator diameter: 7mm
Stator length: 2mm
Shaft diameter: Φ1mm
Motor Size (Dia.*Len): Φ9.5mm*14mm
Weight (g): 1.5g
Number of Cells (Lipo): 1S only
| Happymodel SE0702 Brushless Motor Bench data | ||||||||||
| No-load voltage | No-load current | No-load speed | KV | Voltage (v) |
Current (TO) |
Push (g) |
Efficiency (d/w) |
Power (w) |
Propeller | |
| Happy model SE0702 KV23000 | ||||||||||
| 2 | 0.41 | 46670 | 23335.0 | 3.7 | 0.52 | 5.1 | 2,651 | 1,924 | Gemfan 31 mm twin-bladed propeller | |
| 3.7 | 1 | 8.9 | 2,405 | 3.7 | ||||||
| 3.7 | 1.53 | 13.1 | 2,314 | 5,661 | ||||||
| 3.7 | 1.99 | 16.3 | 2,214 | 7,363 | ||||||
| 3.7 | 2.5 | 19.3 | 2,086 | 9.25 | ||||||
| 3.7 | 2.86 | 21.7 | 2,051 | 10,582 | ||||||
| 2 | 0.43 | 46290 | 23145.0 | 3.7 | 1 | 8.1 | 2,189 | 3.7 | Gemfan 40 mm twin-bladed propeller | |
| 3.7 | 1.5 | 11.8 | 2,126 | 5.55 | ||||||
| 3.7 | 2 | 15.6 | 2.108 | 7.4 | ||||||
| 3.7 | 2.5 | 19.6 | 2,119 | 9.25 | ||||||
| 3.7 | 3 | 22.4 | 2,018 | 11.1 | ||||||
| 3.7 | 3.5 | 25.6 | 1,977 | 12.95 | ||||||
| 3.7 | 4 | 27.1 | 1,831 | 14.8 | ||||||
| Happy model SE0702 KV26000 | ||||||||||
| 2 | 0.35 | 51070 | 25535.0 | 3.7 | 0.98 | 8 | 2,206 | 3,626 | HQPROP double-bladed propeller 31MM |
|
| 3.7 | 1.49 | 11.9 | 2,159 | 5,513 | ||||||
| 3.7 | 1.99 | 15.6 | 2,119 | 7,363 | ||||||
| 3.7 | 2.5 | 19.6 | 2,119 | 9.25 | ||||||
| 3.7 | 2.8 | 21.7 | 2,095 | 10.36 | ||||||
| 2 | 0.54 | 50540 | 25270.0 | 3.7 | 1 | 8.9 | 2,405 | 3.7 | Gemfan 40 mm twin-bladed propeller | |
| 3.7 | 1.5 | 12.9 | 2,324 | 5.55 | ||||||
| 3.7 | 2 | 16.6 | 2,243 | 7.4 | ||||||
| 3.7 | 2.5 | 19.8 | 2.141 | 9.25 | ||||||
| 3.7 | 3 | 23.5 | 2,117 | 11.1 | ||||||
| 3.7 | 3.5 | 26.9 | 2,077 | 12.95 | ||||||
| 3.7 | 4 | 29.2 | 1,973 | 14.8 | ||||||
| 3.7 | 4.38 | 31.4 | 1,938 | 16,206 | ||||||
| Happy model SE0702 KV28000 | ||||||||||
| 2 | 0.55 | 55960 | 27980.0 | 3.7 | 1.03 | 7.6 | 1,994 | 3,811 | Gemfan 1219 31 mm three-bladed propeller | |
| 3.7 | 2.05 | 14 | 1,846 | 7,585 | ||||||
| 3.7 | 3.07 | 19.5 | 1,717 | 11,359 | ||||||
| 3.7 | 4.03 | 23 | 1,542 | 14,911 | ||||||
| 3.7 | 4.74 | 24.6 | 1,403 | 17,538 | ||||||
