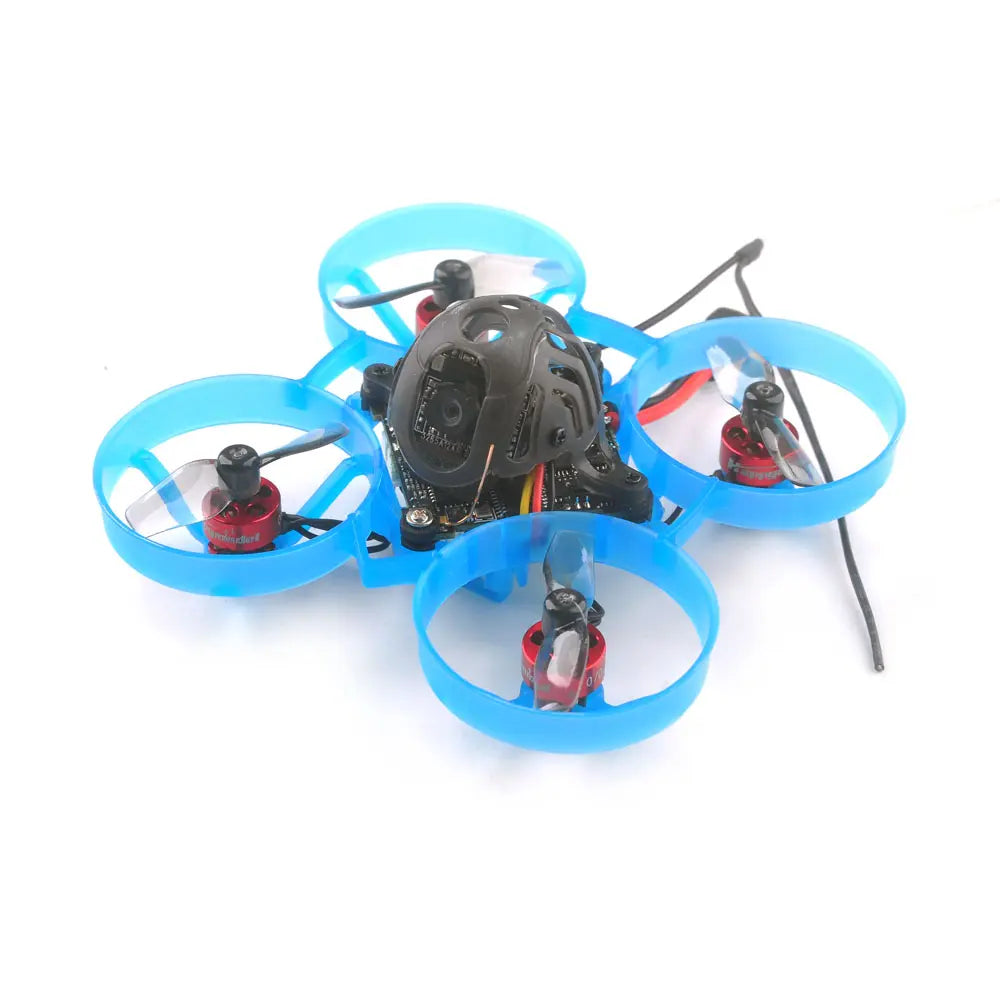

Happymodel Mobula6 1S 65mm Whoop with RunCam Nano 3 - ELRS
Happymodel Mobula6 ELRS 2.4Ghz version comes with the updated ELRSF4 2G4 V3.1 flight controller since February 25th
Flight controller version V3.1
Updated MPU6000 changed to ICM20689 due to MPU6000 discontinuation
Integrated VTX modified to support OPENVTX 0mw~400mw
Pre-install Betaflight firmware that supports ELRS V2.0 TX firmware
ExpressLRS is the most popular remote control link system at present. It has the characteristics of low latency and high packet rate, and the link quality is very reliable. Now we are going to release Mobula6 equipped with ExpressLRS RC link system, the new Mobula6 elrs will come out with a new 0702 brushless motor, which would be the lightest brushless motors in the world. We are sure that this would be a good option for you in the Tiny Whoop season.
NOTE: The frame of the Mobula6 ELRS 2.4G racing version model is supplied in Light Blue.
Characteristics
AIO flight controller with ELRS receiver and 5.8G VTX.
Super light 1S 65mm Brushless whoop only 18.7g
Equipment with the lightest brushless motors: SE0702 only 1.46 grams
Runcam Nano3 The lightest 1/3 CMOS 800TVL camera
Smooth and powerful
Compatible for 1S Lipo/ LIHV
Specifications
- Brand: Happymodel
- Item Name: Mobula6 ELRS 1S 65mm Brushless Whoop Drone BNF Version
- Wheelbase: 65mm
- Size: 80mm*80mm*37mm
- Weight: 18.7 g
- Battery connector: PH2.0
Component Specifications
The engine | Mode: SE0702 KV26000 Configuration: 9N12P Diameter stator: 7mm Stator length: 2mm Shaft diameter: Φ1 mm Motor size (diameter*length): Φ9.5mm*14mm Weight (g): 1.46 g Number of cells (Lipo): Only 1S |
Propellers | Weight: 0.19 g Material: PC Pitch: 1 inch Tip diameter: 30 mm Center hole diameter: 1mm |
Flight Controller | ELRS F4 2G4 Flight Controller V3.1 Built-in 2.4G SPI Expresslrs Receiver CrazyF4 Flight Controller ELRS Receiver Expresslrs 915MHz Built-in Controller CrazyF4 ELRS flight controller built-in 868 MHz expresslrs receiver MCU: STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000 (SPI connection) Card size: 28.5*28.5MM Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A (each) Blheli_S 4in1 ESC Dshot600 ready Integrated Betaflight OSD (SPI control) 5.8 G VTX integrated ExpressLRS 2.4G/915MHz/868MHz receiver Integrated BEC 5V 1A Integrated Voltage Detection Integrated |
Integrated 4in1 ESC | MCU updated to EFM8BB21 Power supply: 1S LiPo/LiPo HV current: 5A continuous peak 6A (3 seconds) Programmable BLHeliSuite support Factory firmware: O_H_5_REV16_7.HEX Default protocol: DSHOT600 |
Integrated 2.4GHz ExpressLRS SPI receiver | Packet Rate Option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Antenna: SMD antenna Telemetry Output Power: <12dBmReceiver Protocol: SPI ExpressLRS It could connect with Happymodel ES24TX, ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX module ExpressLRS version 1.0.0 or 1.0.1 both compatible |
Integrated serial based ELRS receiver | Operating current: ~100Ma Rx to FC Protocol: CSRF Optional RF Frequency: 915mhz or 868mhz (EU) Antenna connector: IPEX4 Telemetry Output Power: <17 dBm Firmware Target: Happymodel_RX_ES915RX Receiver Protocol: CRSF It could connect with Happymodel ES915TX, Frsky R9M and DIY ELRS TX module (need to flash the same version of ELRS firmware) Firmware flash via Betaflight pass-through |
Integrated 5.8g VTX | Output power: 25mw~200mw Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300 mA (typ) Frequency: 5.8GHz 5 bands 40 channels With Race band Smartaudio ready |
RunCam Nano3 | Model: RunCam Nano 3 Image Sensor: 1/3″ CMOS Horizontal resolution: 800TVL Lens: 2.1mm (M8) FOV 160° Signal system: PAL/NTSC Not switchable S/N ratio: >50 dB Electronic shutter speed: Automatic Gain Control (AGC): Min. Automatic Illumination: 0.01Lux@1.2F D-WDR: Auto Day/Night: Color Power supply: DC 3-5.5V Current: 110mA at 5V 120mA at 3.3V Housing material: ABS Net weight: 1.2 g Dimensions: L14mm*W14mm*H9mm |
Lipo battery | Capacity: 300mAh Voltage: 3.8V Continuous discharge rate: 30°C Dimensions: 57mm x 12mm x 7mm Weight: 8 g Connector: PH2.0 |
Recommended Parts
- 1x Mobula6 1S 65mm whoop drone frame
- 1x ELRS F4 2G4 Flight Controller Built-in 2.4G expresslrs SPI receiver
- 1x SE0702 KV26000 or SE0802 KV19000 or SE0802 KV25000 brushless motor
- 1x Gemfan 1210 31 mm twin-bladed propellers (4cw+4ccw)
- 1x Runcam Nano3 1/3 CMOS 800TVL Camera
- 1x Built-in 5.8G VTX 25mw~200mw
- 4x LiHV 1S 300mAh 30C battery
- 1x Lipo/LIHV 1S USB Charger
- 1x Propeller Removal Tool
PLEASE NOTE: TO ENSURE THE HIGHEST QUALITY, EACH MODEL WILL BE INSPECTED BY OUR STAFF BEFORE BEING SHIPPED.
|
||||
IPEX MHF3 | IPEX MHF3 | |||
25mW-200mW | 25mW-200mW | |||
0702KV26000 | 0702KV26000 | |||
1s 300mah Lipo Battery | 1s 300mah Lipo Battery |
