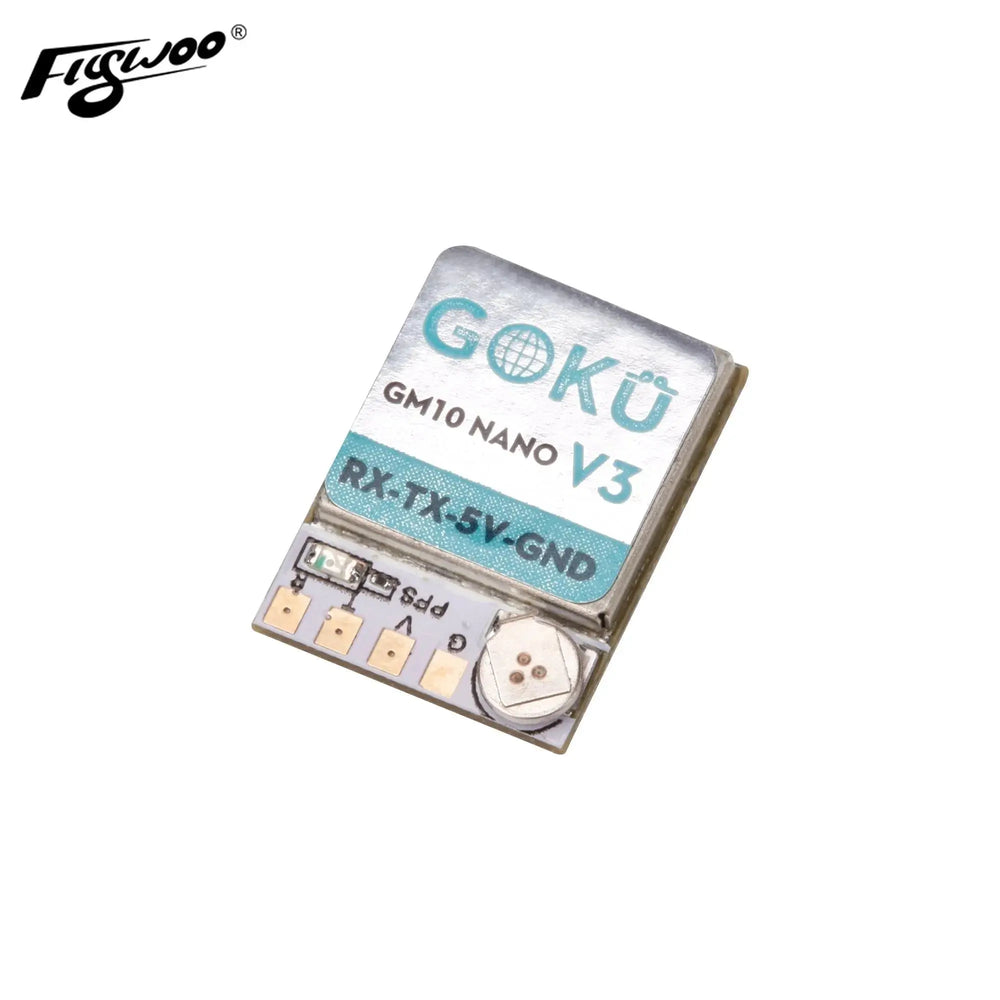

GOKU GM10 Nano V3 GPS
GOKU GM10 V3 GPS Series is here!
Using the latest GNSS chip M10050. Compared with the previous generation GM8 V2, the positioning is more accurate and the star search speed is faster.
Description
Brand: FLYWOO
Model: GM10 NANO V3 GPS
Size: 12mm*16mm*4.5mm
Weight: 2.2 g
Connector: 4-pin pad
Characteristics:
GPS module, three-module pad
4 pin, ultra light weight
Specification
Electrical characteristics
Chipset: M10050 (10th Gen chip)
Reception format: GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Default protocol: GPS, Galileo, BeiDou
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1 Channels : 72 Sensitivity detection
Channel Search : -162dBm Reacquisition : -160dBm Data Rate & Update Rate : 4800bps to 921600bps, default 115200bps
Data level: TTL or RS-232, default TTL level
Data protocol: BF4.3.X(UBLOX)/BF4.2.X(NMEA)
Output frequency: 1Hz-10Hz,Default 10Hz
Operating limits
Altitude: 50,000 m
Maximum speed: 500 m/s Maximum acceleration
: less than 4 g
Energy consumption
VCC: DC voltage: 3.3-5V
Operating temperature: -40°C ~ +85°C
Storage temperature: -40°C ~ +105°C
Indicator:
PPS LED: Yellow. PPS LED is not bright when GPS is not fixed, flashing when it is fixed
The module pins: RX TX 3.3-5V GND
Package Included
1x GM10 NANO V3 GPS
1x 100mm cable
1x copper sheet
