GPS BN-180 Micro

€24,99 EUR

×

We often restock popular items or they may be returned by the other customers. If you would like to be notified when this happens just enter your details below.


GPS BN-180 Micro

Please select variant
Please enter name
Invalid email address
Required mobile number Invalid number Invalid country code Too short Too long ✓ Valid
Your notification has been registered. Close
Looks like you already have notifications active for this size!

We respect your privacy and don't share your email with anybody.

×

We have cancelled your request.

Pay online with PayPal, credit, debit and prepaid cards securely, even on delivery!

visamastermaestropaypalapple paygoogle payshopify pay
Vendor: Drone24Hours
SKU:
Availability: In Stock Pre order Out of stock
Description

[vc_row][vc_column][vc_column_text]

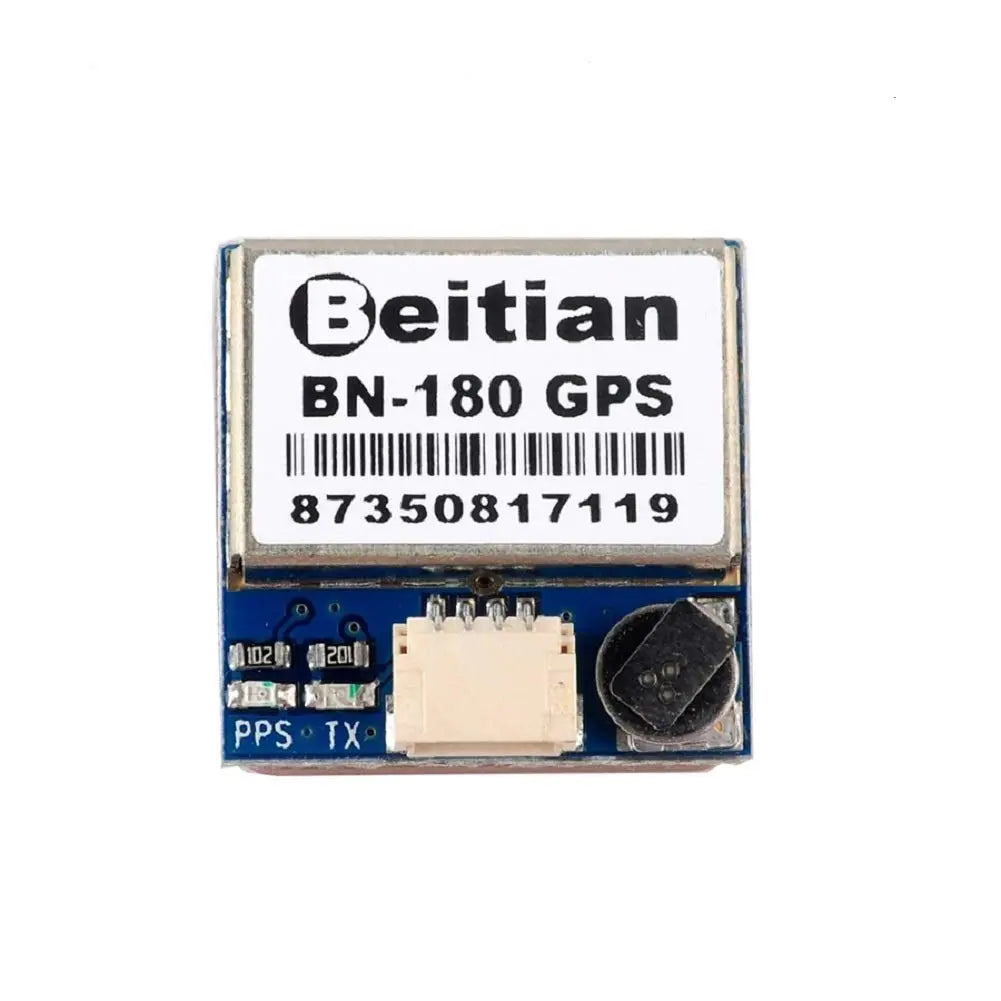

l Smallest Mini Double GLONASS+GPS BN-180 Micro Double GPS Antenna Module UART TTL for CC3D F3 RC Drone

Il Più Piccolo Mini Doppio GLONASS + GPS BN-180 Micro Doppio GPS Antenna Modulo UART TTL per CC3D F3 RC DroneIl Più Piccolo Mini Doppio GLONASS + GPS BN-180 Micro Doppio GPS Antenna Modulo UART TTL per CC3D F3 RC DroneIl Più Piccolo Mini Doppio GLONASS + GPS BN-180 Micro Doppio GPS Antenna Modulo UART TTL per CC3D F3 RC DroneIl Più Piccolo Mini Doppio GLONASS + GPS BN-180 Micro Doppio GPS Antenna Modulo UART TTL per CC3D F3 RC Drone

Description

Size: 18mm*18mm*6mm
Weight: 4.9g
Connector: 1.00mm distance between 4-point seat

Product specification

Electrical characteristics
Chipset: u-blox M8030-KT
Reception format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
Channels: 72 search channels

Sensitivity

Trace: -167dBm
Reacquisition: -160dBm
Cold start: -148dBm
Warm start: -156dBm

Precision

Horizontal position: 2.0 m CEP 2D RMS SBAS enable (open typical Sky)
Speed: 0.1m/sec 95% (SA off)
Timing: 1us synchronized to GPS time

Acquisition time

Cold start: 26s
Warm start: 25s
Warm start: 1s

Update date and speed

Support Rate: 4800bps to 921600bps, default 9600bps
Data level: TTL or RS-232, default level TTL
Data protocol: NMEA-0183 or UBX, default NMEA-0183
Single GNSS: 1Hz-18Hz
Concurrent GNSS: 1Hz-10Hz, default 1Hz

Operational limits

Altitude: 50,000m Maximum
Speed: 515m/s Maximum
Acceleration: less than 4g

Energy consumption

VCC: DC Voltage 3.0V-5.5V, Typical: 5.0V
Current: Capture 50mA/5.0V
Operating temperature: -40°C ~ +85°C
Storage temperature: -40°C ~ +105°C
Indicator:
TX LED: blue. Data output, TX LED flashing
PPS LED: red. LED not bright when GPS is not fixed, flashing when fixed

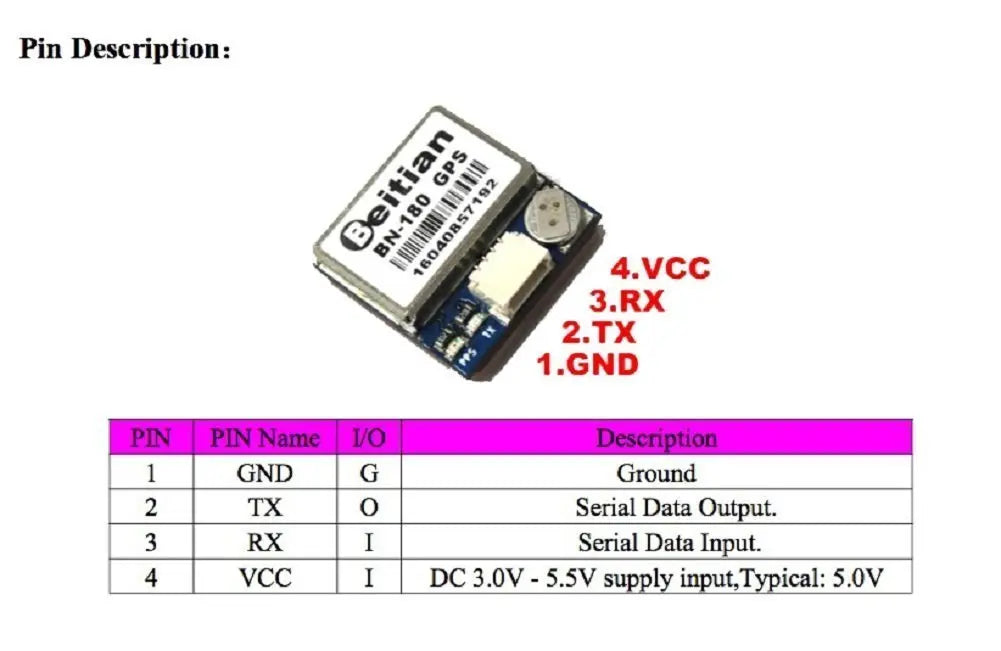

Wiring:

GND, TX output, RX input, VCC (3.0v-5.5v)

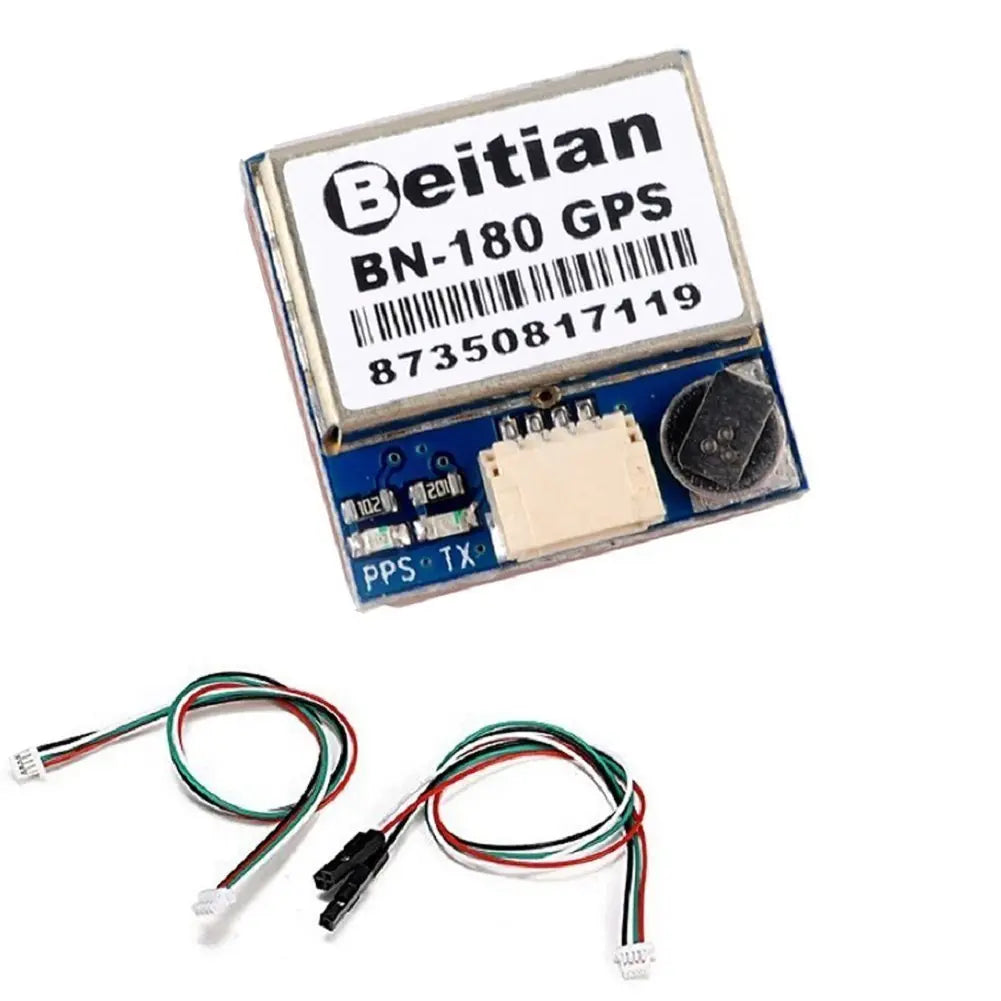

Package Included

1 x BN-180 GPS Module
2 x 15cm cables

[/vc_column_text][/vc_column][/vc_row]
