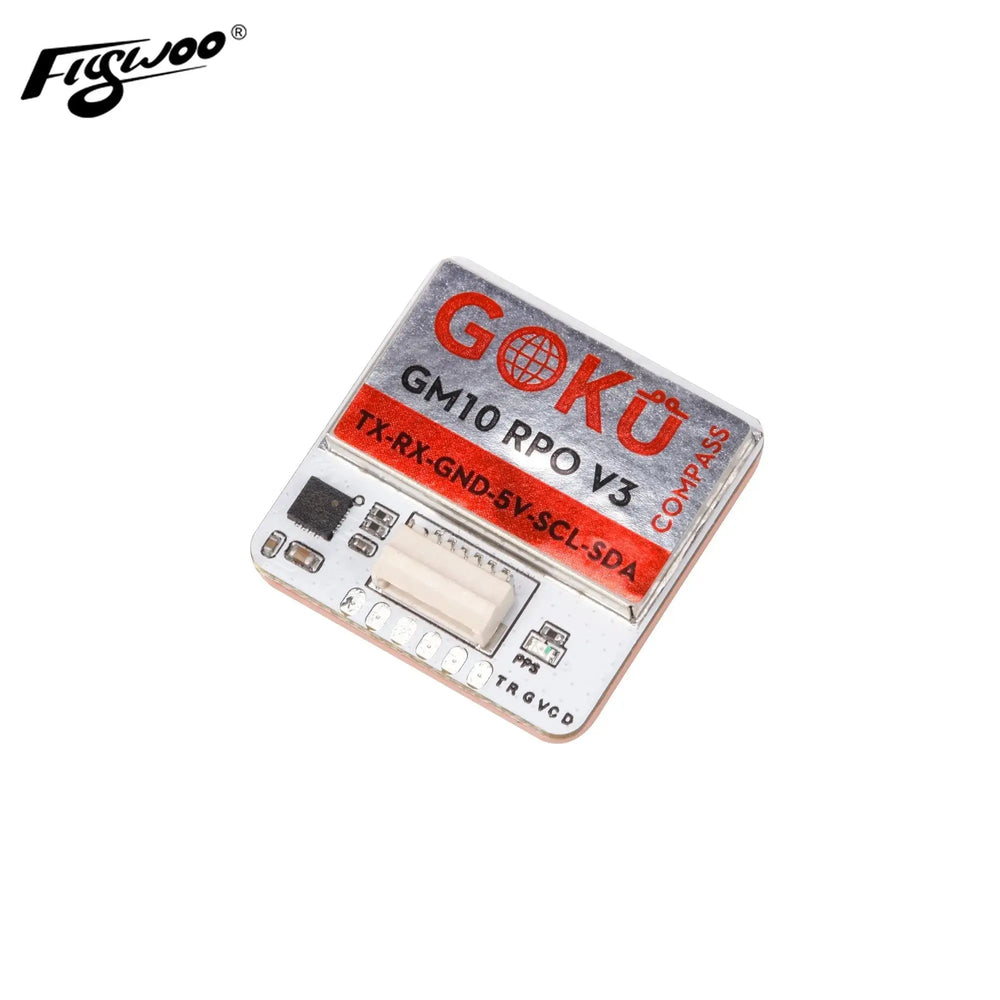

GOKU GM10 V3 GPS Series is here!
Using the latest M10050 GNSS chip. Compared with the previous generation GM8 V2, the positioning is more precise and the star search speed is faster.
Description
Brand: FLYWOO
Model: GM10 PRO V3 GPS with compass
Size: 25mm*25mm*6mm
Weight: 7.3g
Connector: 1.00mm gap between 6-pin patch seat
Characteristics
GPS module, three-module compass
with electronic compass IC QMC5883L
1.0mm gap between 6-pin patch seat
Technical specifications
Electrical characteristics
Chipset: M10050 (10th generation chip)
Reception format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
Default protocol: GPS, Galileo, BeiDou
Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS Channels L1, Galileo E1
: 72 Detection
of sensitivity
- of the search channel: -162 dBm
- Reacquisition: -160 dBm
Data Rate and Update Frequency
- Support: 4800bps to 921600bps, default 115200bps
- Data Level: TTL or RS-232, default TTL level
- Data protocol: BF4.3.X (UBLOX)/BF4.2.X (NMEA)
- Output Frequency: 1Hz- 10Hz,Default 10Hz
Operational limits
- Altitude: 50,000 m
- Maximum speed: 500 m/s
- Maximum acceleration: less than 4 g
Energy consumption
- VCC: DC Voltage: 5V
- Operating temperature: -40°C ~ +85°C
- Storage temperature: -40°C ~ +105°C
Indicator
- PPS LED: Yellow LED.
- PPS not bright when GPS is not fixed, flashing when fixed
- The module pins: TX RX GND 5V SCL SDA
Package Included
- 1x GM10 PRO V3 GPS with compass
- 1x 150mm cable
- 1x copper foil
