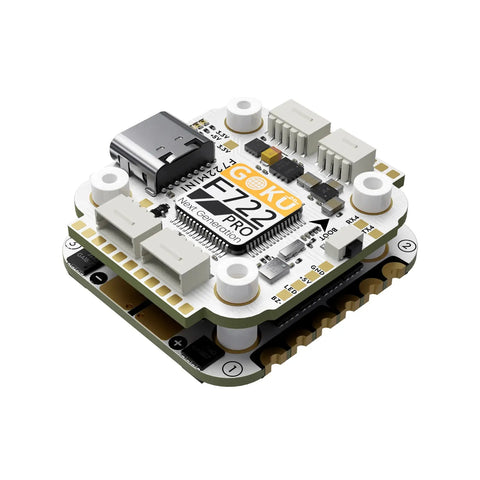

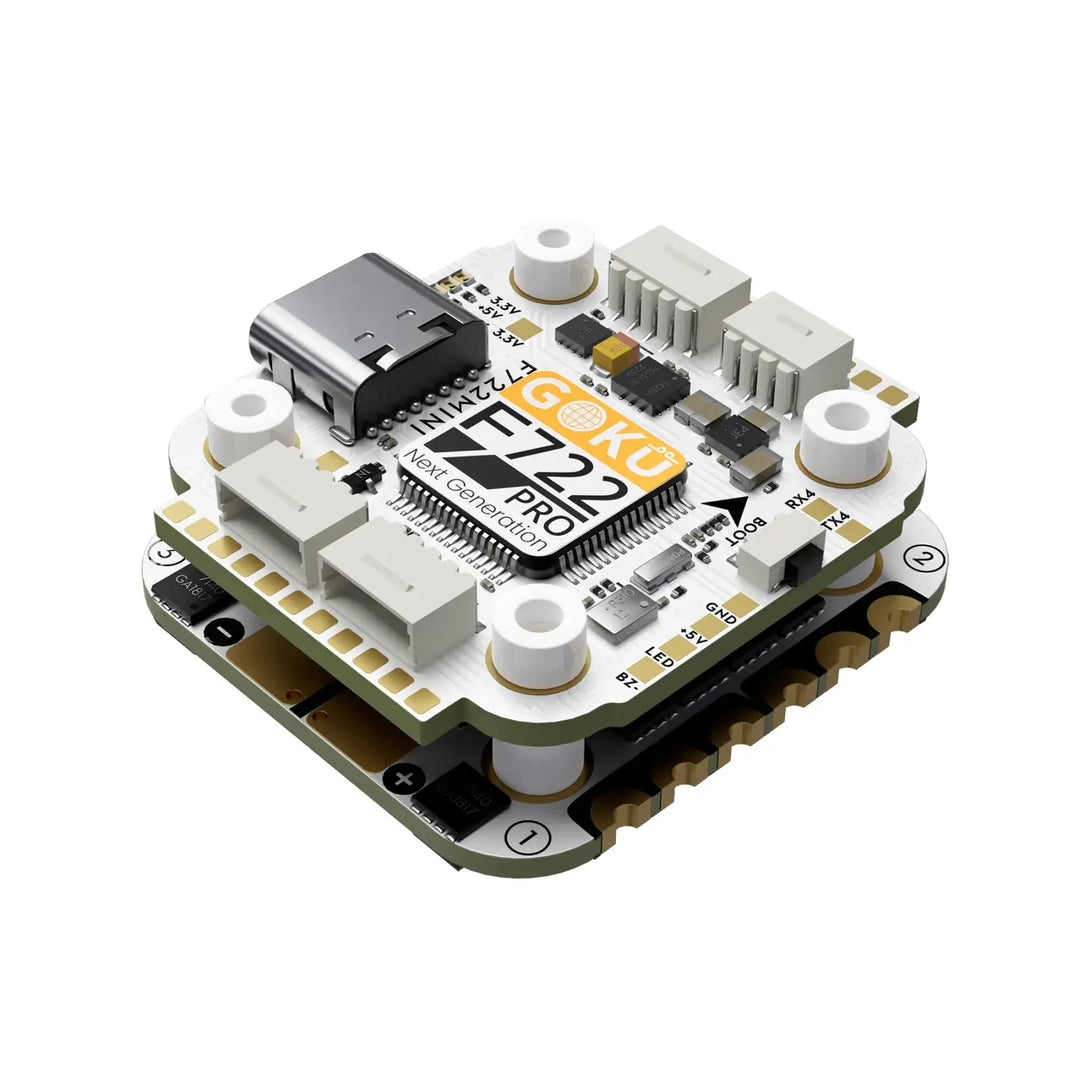

GOKU F722 Pro Mini V2 Stack 20×20 mm, FC STM32F722 + ESC 45 A,
La GOKU F722 Pro Mini V2 Stack 20×20 è una soluzione compatta “all-in-one” perfetta per chi cerca massime prestazioni in formato ridotto. Questa stack integra un flight controller F722 a 32 bit con processore STM32, giroscopio ICM42688, BEC doppio e un ESC da 45 A, il tutto su un PCB gold‑plated robusto e leggero (9,9 g).
Caratteristiche
-

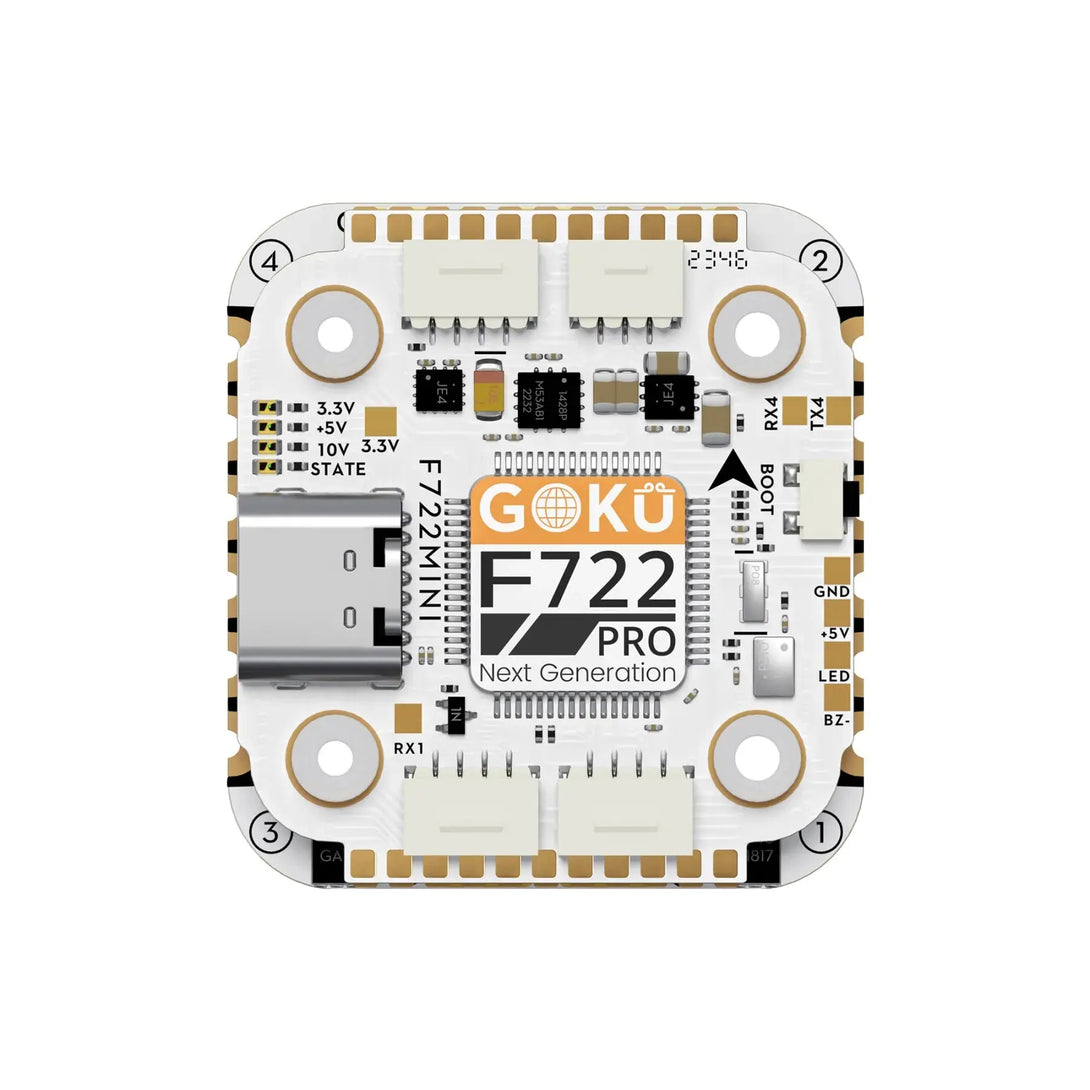

FC STM32F722 + ESC 45 A integrato in formato 20×20 mm
-

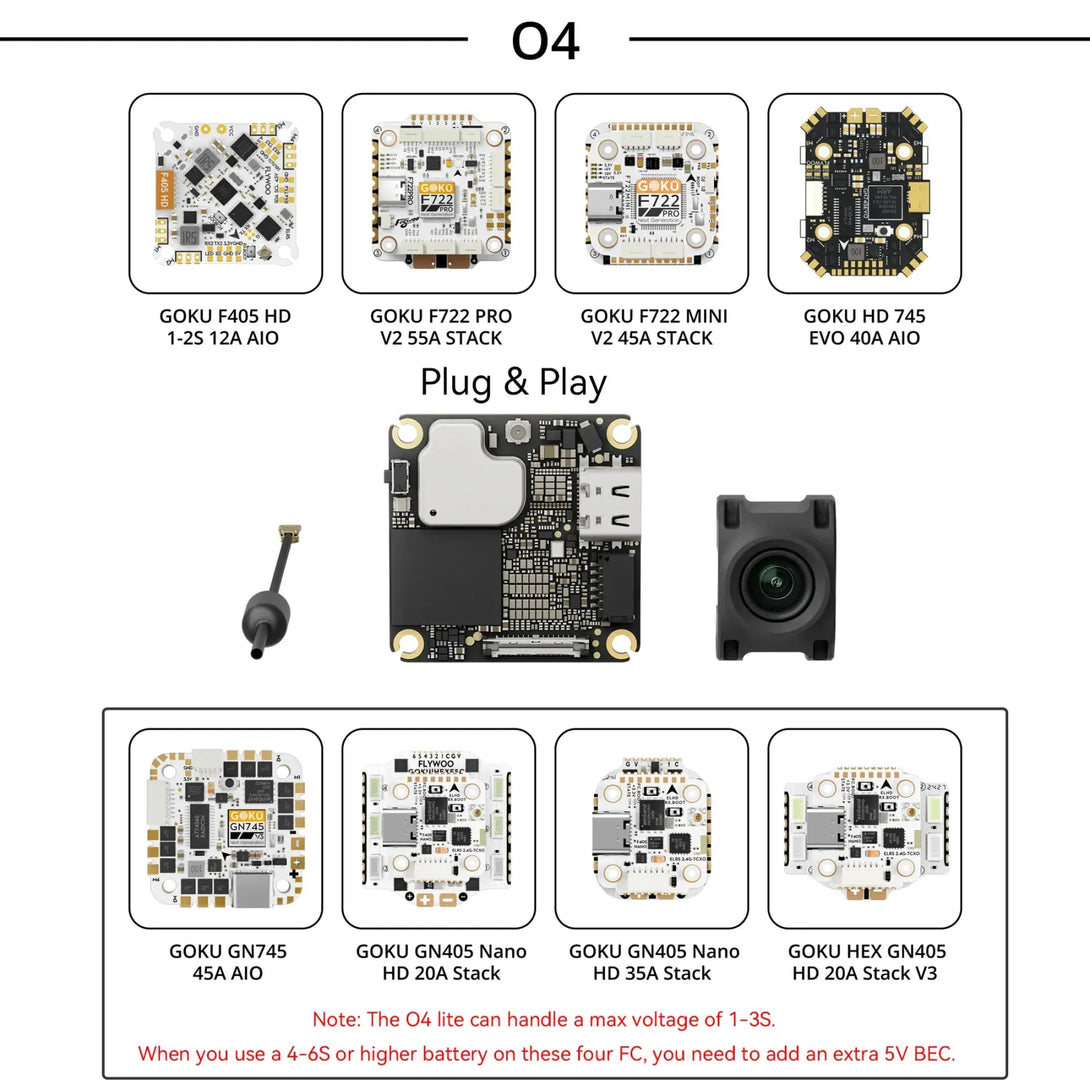

Plug & Play per DJI O4 / O4 Pro grazie a connettori snap‑lock
-
Jiroscopio ICM42688 per controllo preciso e risposta veloce
-
BEC dual output: 10 V/2 A e 5 V/2 A per alimentare VTX e periferiche
-
Scheda connettori e saldature opzionali per massima flessibilità
-
Black Box da 16 MB: registra dati volo per tuning avanzato
-
PCB in immersion gold: alta resistenza a calore e corrente
Specifiche tecniche
| Voce | Dettaglio |
|---|---|
| MCU | STM32F722 (216 MHz) |
| Giroscopio | ICM42688 |
| BEC | 10 V/2 A + 5 V/2 A |
| ESC | 45 A continuativi, Dshot300/600/1200 |
| Black Box | 16 MB |
| UART | 6 porte |
| Input Voltage | 2–6 S LiPo (7,4–26 V) |

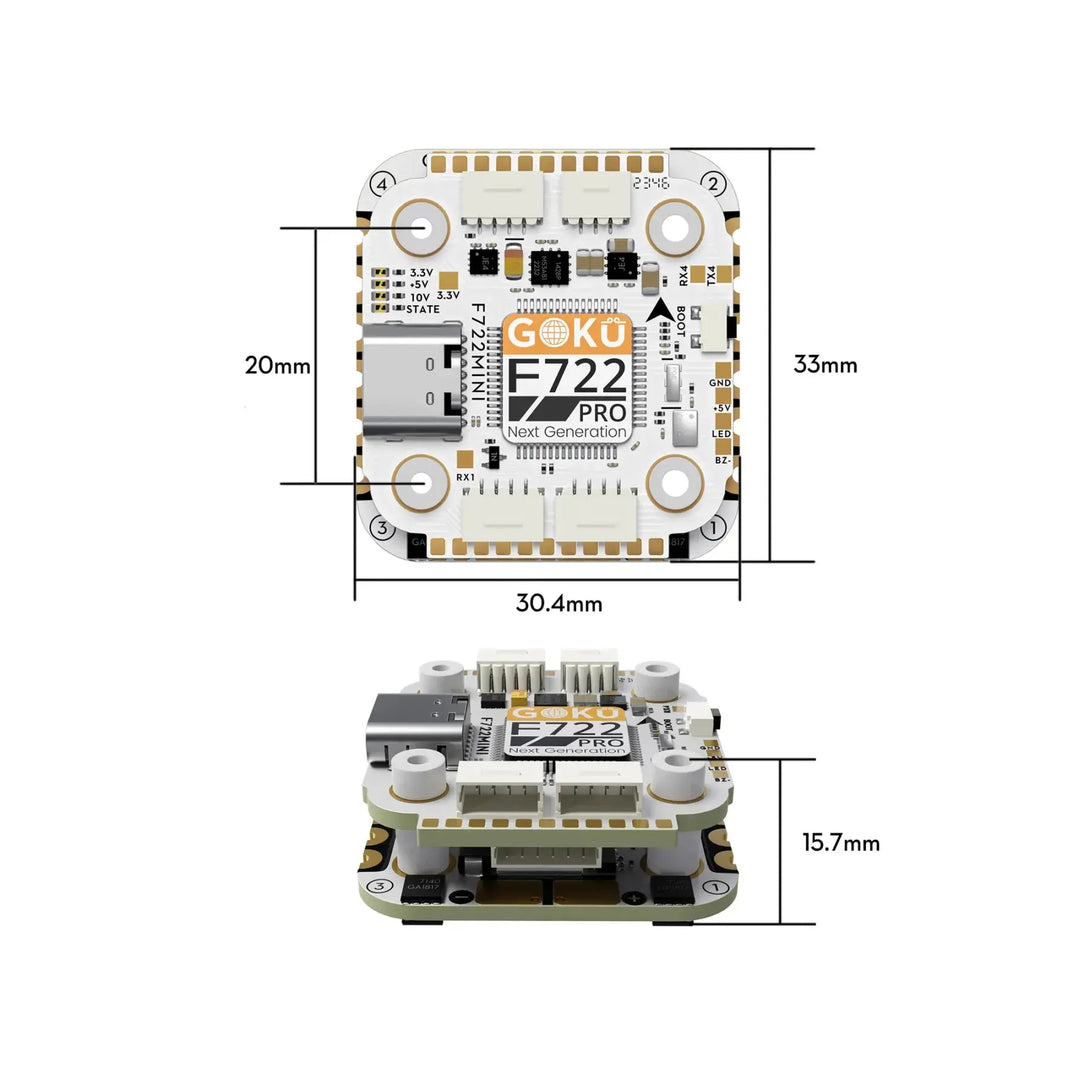

| Dimensioni FC | 32×29×20 mm |
| Fori montaggio | M2, 20×20 mm |

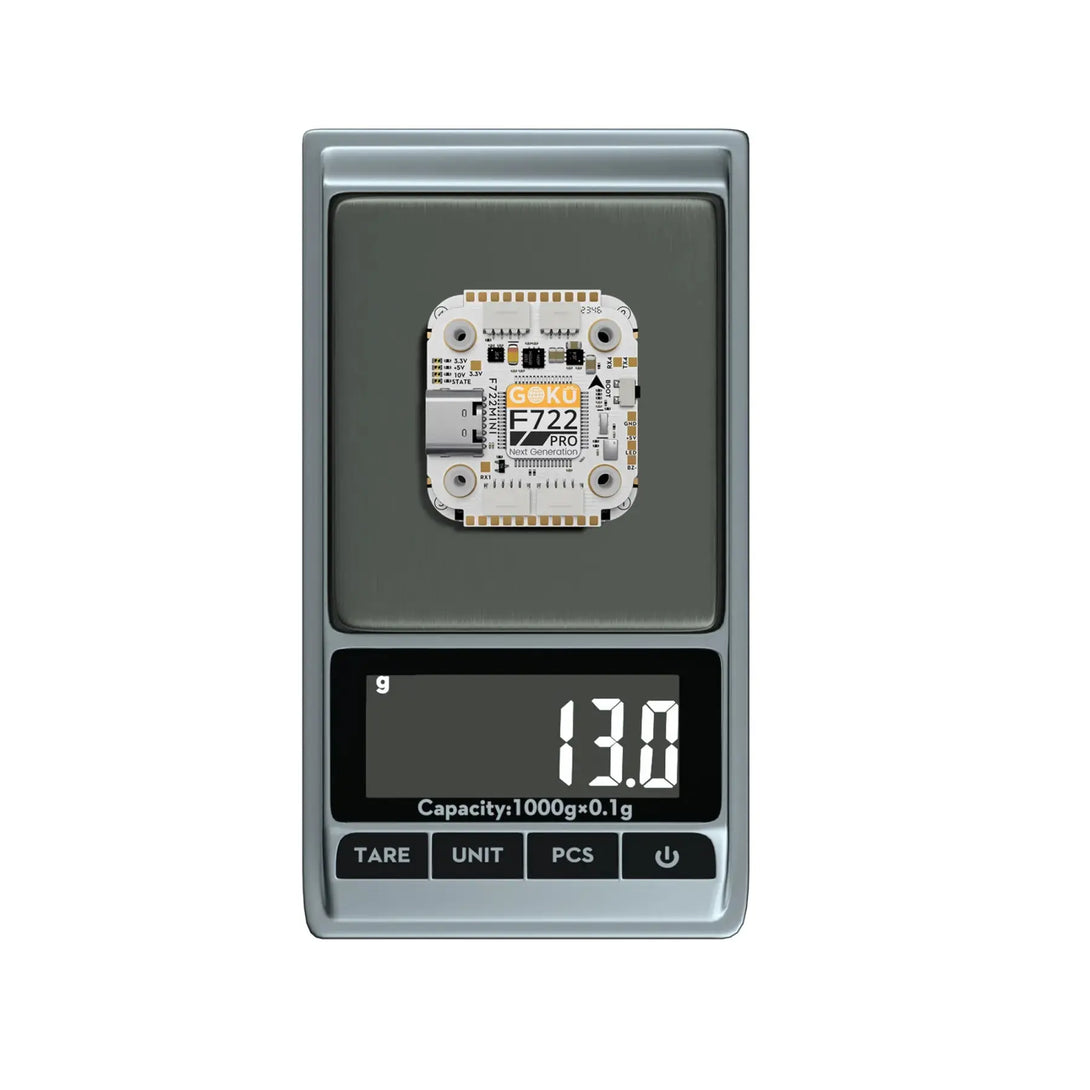

| Peso | 9,9 g |
| Frequenza PWM ESC | 24k–128 kHz |
Il pacchetto include
-
1 × Stack FC GOKU F722 Pro Mini V2
-

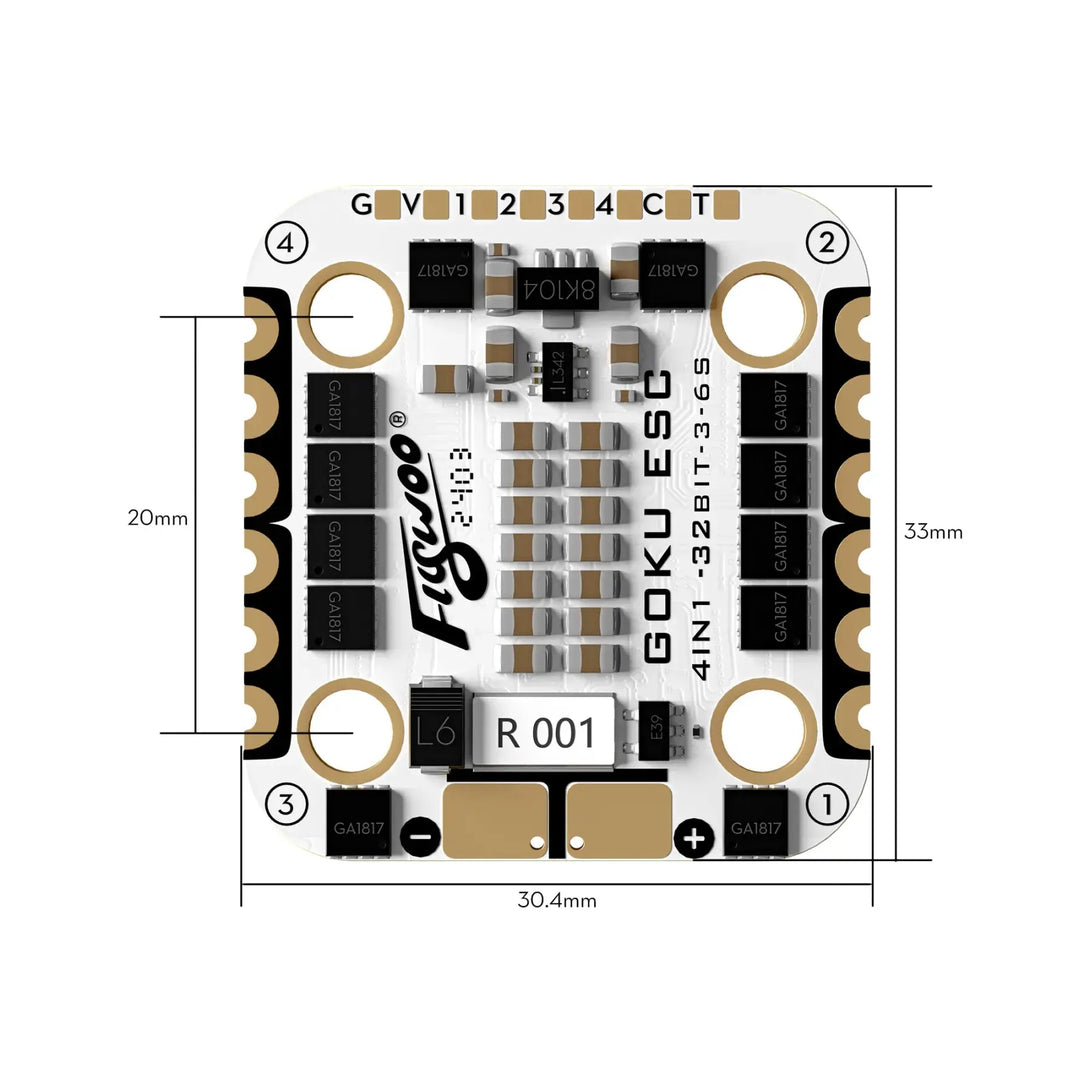

1 × ESC G45M 45 A (4‑in‑1)
-
Kit cavi (FC-ESC, buzz‑GPS, DJI O4, ricevitore, camera)
-
5 × smorzatori M2 e 5 × M3
-
Buzzer, connettori, XT30 opzionale
