Technical specifications
Center frequency: 5.8GHz
Bandwidth: 660MHZ (5.47-6.13GHz)
Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Axial ratio: < 1.3
DBi Antenna Gain: 9.4
Half Power Beam Width: 55° (horizontal and vertical)
Radiation efficiency: 83.5%
These values are based on simulation and the actual measurements are as follows (they are very similar).
Due to the change in the dielectric constant FR4, the center frequency can be transferred between batches.
And not all FR4 brands have the same dielectric constant.
Frequency conversion at 100 MHz is normal.
Package Included

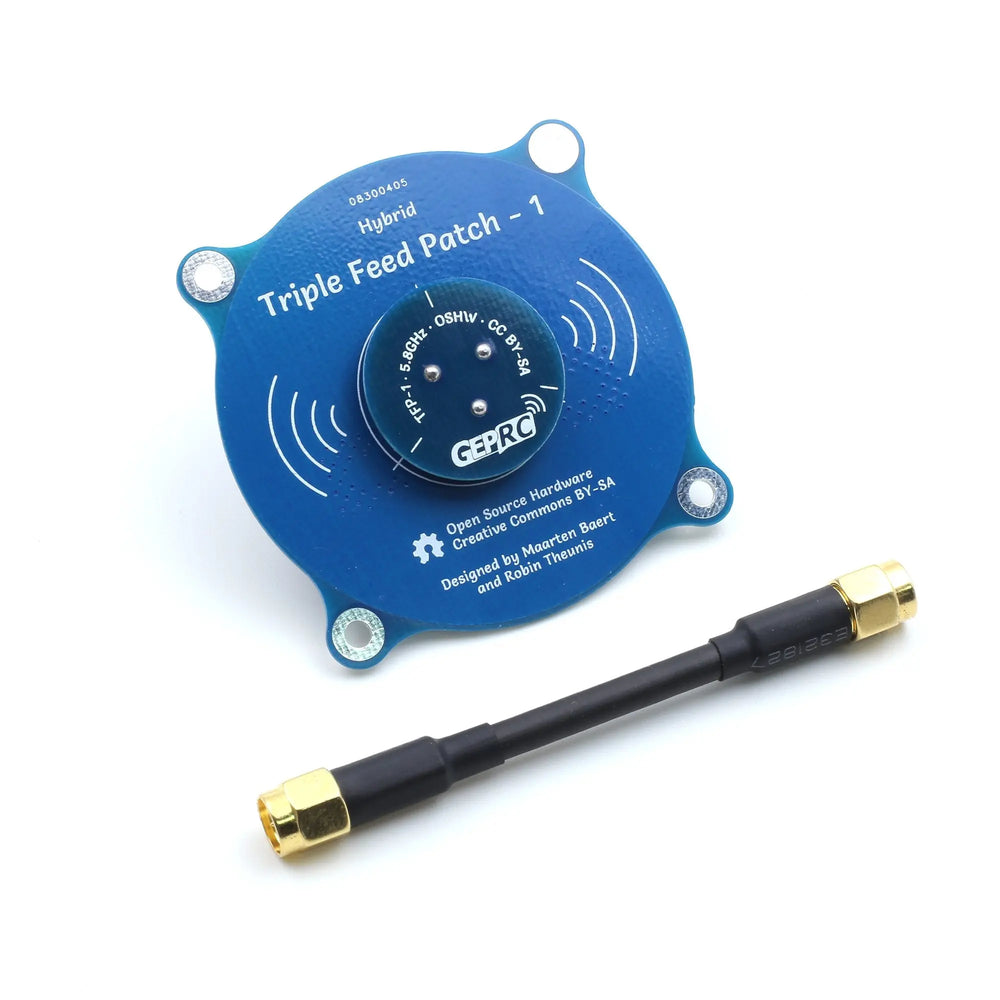

1x GEPRC Triple Feed Patch-1 5.8GHz CP FPV Antenna (SMA Male)
