Equipped with Taker G4 45A AIO flight control, which has higher redundancy of computing power. The use of a fixed top-mounted GPS can avoid the impact of its own electromagnetic interference during flight, and the rescue function is more stable. The silicone camera shock absorber pad prevents the high-frequency jelly of the O3 camera.
The Tern-LR40 is like a bird with outstretched wings, flying freely in the blue sky without being held back. Choosing it is not only a high-quality flight, but also an artistic journey.
Characteristics
- New lightweight design, weight less than 249g.
- Expand the GPS interference fixation method and stay away from interference sources
- The DC structure cannot see the propellers during flight, which is more suitable for straight-line aerial photography.
- Install the BB ring to set the low battery voltage alarm
- Using GEP-M10nano GPS, the satellite search speed is faster and the saving mode is more stable.
- GoPro mount compatible installation, create expandable footage.
Specifications

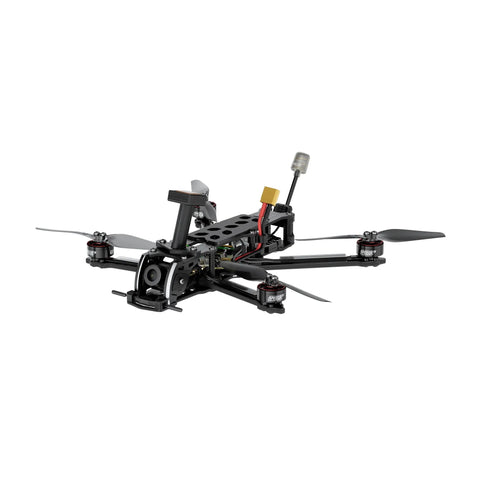

- Model: Tern-LR40
- Frame: Tern-LR40 frame
- Top plate: 1.5mm
- Center plate: 2.0mm
- Bottom plate: 1.5mm
- Arm thickness: 3.5mm
- FC: Buyer G4 45A AIO
- MCU: STM32G473CEU6
- Gyroscope: ICM 42688-P
- OSD: Betaflight OSD with AT7456E
- ESC: 32bit 45A
- VTX: RADmini 1W
- Camera: Caddx Ratel2
- Antenna: GEPRC Peano 5.8G RHCP UFL
- Motors: GEP-SPEEDX2 1404 3000KV
- Propellers: HQProp T4X2.5Grey (2CW+2CCW)
- Weight of the Tern -LR40 analogue ELRS24 version: 159 g±5 g
- Receiver: PNP/GEPRC ELRS24/GEPRC ELRS915/TBS Nano RX
- Recommended battery: LiPo 4S 660mah-850mah/18650 3000mah
- Flight time: 10-25 minutes
- Connector: XT30
Package Included
- 1x GEPRC Tern-LR40 FPV analog - long range
- 2x HQProp T4X2.5Grey (2CW+2CCW)
- 2x Anti-slip Drum Mats
- 1x pack of screws
- 4x M15*170mm battery straps
- 1x 1.5mm L-shaped screwdriver
- 1x GoPro Camera Mount
- 1x T-type antenna mount
- 1x RC print
