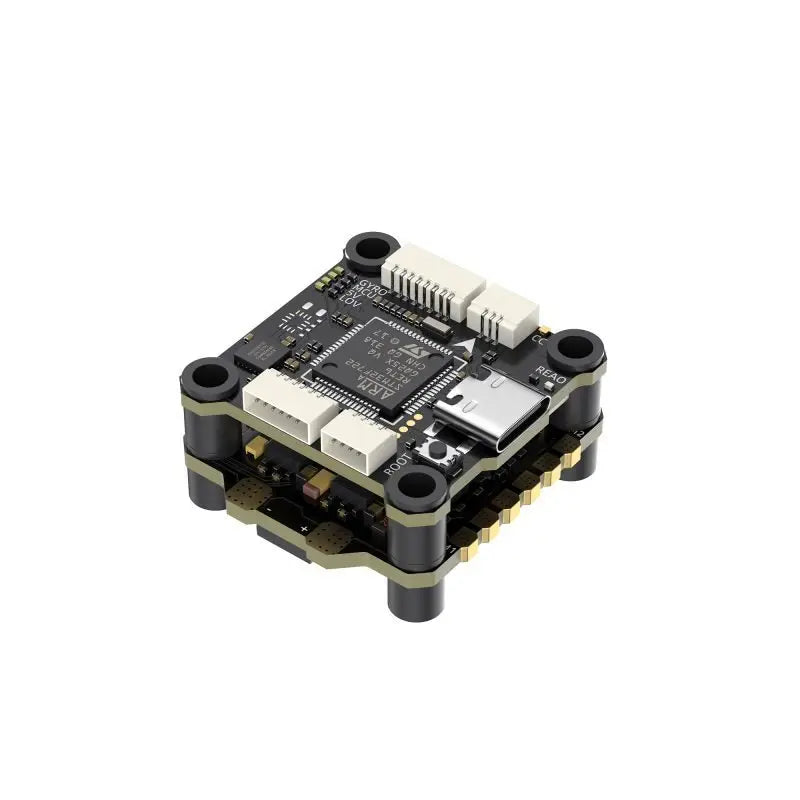

GEPRC TAKER F722 E55A SE stack is a high-performance stack system for racing. It adopts F722 mainstream controller, stable and reliable MPU6000 gyro, and built-in 32Mb flash. The overall performance is reliable and stable. The flight controller wiring supports soldering and SH1.0 plug-and-play terminal, which is convenient for installation and application.
The TAKER E55_96K BL32 4IN1 ESC 55A uses metal-encapsulated MOS tubes with a rated continuous overcurrent of 50A and an instantaneous current of 55A, fully meeting the requirements of professional drone racing.
The mounting hole size of all stacks is 25.5 x 25.5mm, compatible with most frames on the market for installing AIO flight controllers. The stack combination can help dissipate heat from the main controller and MOS tubes.
Characteristics
- The new TAKER series, a high-performance stack system, adopts 2306.5 1350KV motor and 7.5 inch drone for testing, and can work stably.
- Adpots mainstream F722 main controller with MPU6000 gyroscope.
- 32Mb black box storage.
- Supports receiver, analog camera, and directly supports DJI Air unit plug-in.
- The design of 10V 2A + 5V 2.5A dual-channel independent BEC.
- Custom 25.5mm x 25.5mm mounting holes are compatible with most AIO frames on the market.
- TAKER E55_96K BL32 4IN1 ESC 55A metal package ESC MOS tube has better heat dissipation effect and performance.
Specifications
TAKER F722 SE FC
MCU: STM32F722RET6
IMU: MPU6000
Black Box: 32 Mb Flash
USB: Type-C
OSD: BetaFlight OSD with AT7456E chip
BEC output: Dual output BEC 5V at 2.5A, 10V at 2A
Firmware Destination: TAKERF722SE
Size: 31.7×31.5mm
Mounting hole size: 25.5×25.5mm, mounting hole size is φ4mm, use vibration reduction silicone to make the fixing screws 3mm or 2mm.
Input voltage: 7.4V-25.2V(LiPo 2-6S)
UART: 6 UARTS (only for Uart6 ESC)
Power filter: Built-in LC filter
Weight: 6.0 g
TAKER E55_96K BL32 4IN1 ESC 55A
Input voltage: 7.4V-25.2V (LiPo 2-6S)
Galvanometer: support
PWM refresh rate: 24K-96K
Continuous current: 55A
Burst current: 60 A (5 s)
Telemetry: Support
Support protocol: Oneshot125/Oneshot42/Mulishot Dshot 150/300/600 mode
Firmware Destination: ST_G0_05
Weight:: 9.6 g
Package Included
- 1 flight control
- 1 ESC
- 1 x 35V 470uf capacitor
- 1 XT60 power cable
- 1 x 8 Pin Flight Controller ESC Cable
- 4 screws M3*22
- 6 M3 anti-slip nuts
- 12 x 4 converted to 3mm vibration-reducing silicone
- 12 x 4 converted to 2mm vibration-reducing silicone
- 1 x 65mm Camera Lens Cable
- 1 x 25mm Camera Lens Cable
- 1 receiver cable
- 1 x DJI Air Unit Cable Connector
Electrical Diagram and Manual:
Electrical Diagram
