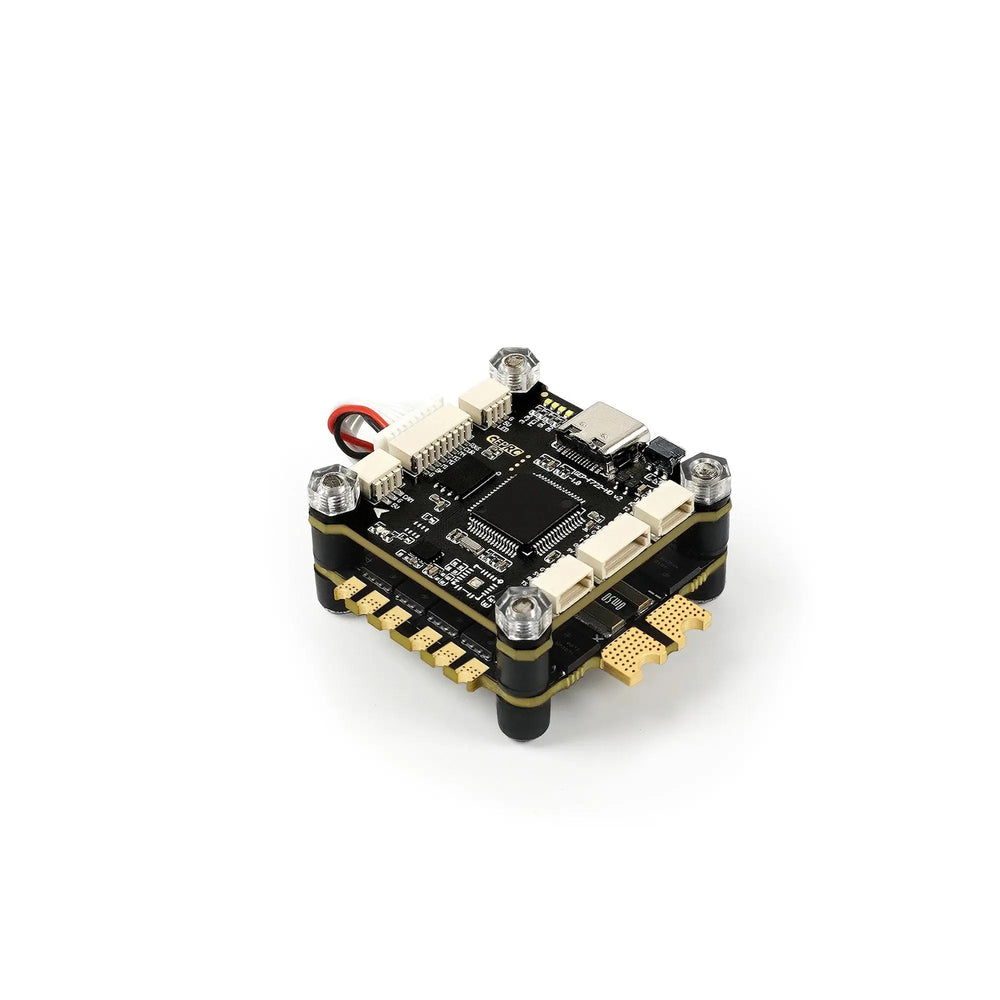

GEPRC TAKER F722 BLS 50A STACK
GEPRC TAKER F722 BLS 50A STACK is a plug-and-play flying tower system specially designed for DJI Air Unit. It uses STM32F722 chip, ICM42688-P gyroscope, integrated 16M black box and GEP-BLS50A-4IN1 ESC to have a more delicate hand feeling experience.
The GEPRC TAKER F722 BLS 50A STACK can be connected directly to the DJI Air unit, saving you the trouble of soldering. Upgrade USB Type-C interface, which greatly improves the socket life and reduces the risk of poor contact. Dual independent BEC 9V at 2.5A + 5V at 3A, more stable power supply for external devices.
Characteristics
- It uses the mainstream STM32F722 chip
- Equipped with the latest 42688-P gyroscope
- 16 million black box storage
- Integrated LC filter
- Upgrade USB Type-C interface
- Connected directly to DJI air unit
- With the GEP-BLS50A-4IN1 ESC, the flying sensation is silky
- Simple and reasonable installation method, the shock absorber can make the gyro work very stably
- Dual independent BEC 9V at 2.5A + 5V at 3A
Technical specifications
GEP-F722-HD v2 FC
- MCU: STM32F722
- IMU:ICM42688-P(SPI)
- Connection to Air Unit: Direct connection to DJI Air Unit
- Black box: 16M on board
- USB interface: Type C
- OSD: BetaFlight OSD with AT7456E chip
- BEC: Dual BEC 5V at 3A, 9V at 2.5A
- Firmware target: GEPRCF722
- Size: 36.85×36.85mm, hole 30.5×30.5mm, φ4mm hole becomes φ3mm after using silicone shock absorbing circle.
- Input voltage: LiPo 3-6S
- UART:5
- Power Filter: Built-in LC filter
- Weight: 8.1g
GEP-BLS50A-4IN1 ESC
- Input voltage: 3-6S Lipo
- Galvanometer: support
- Continuous Current: 50A
- Burst current: 55A (5 seconds)
- Support protocol: Dshot 150/300/600
- Size: 42.9×39.7mm, hole 30.5×30.5mm, φ4mm hole becomes φ3mm after using the silicone shock absorbing circle.
- Weight: 13.7g
- Objective: G_H_30
Package Included
- 1x GEPRC TAKER F722 BLS 50A STACK
- 1x capacitor
- 1x DJI Air Unit Adapter Cable
- 1x Flight Controller Adapter Cable
- 1x XT60 power cable
- 4x M3*30 screws
- 4x M3*24 screws
- 8x nylon nuts
- 8x silicone grommets
- 2x 4 pin sh1.0 silicone cables
- 1x Camera Connection Cable
