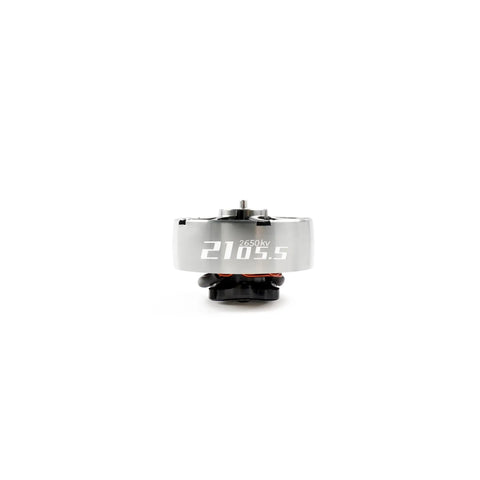

The new generation GEPRC SPEEDX2 2105.5 brushless motor is an extremely innovative brushless motor, with a cutting-edge style and unique design.
Lightweight design greatly reduces the weight, only 21.0g. The flat shape of the motor with exquisite "Hollow out" design on the top of the rotor can be used to improve the heat dissipation efficiency, the advantage is to maintain a lower temperature for the motor running.
Using high-quality customized materials and professional magnetic circuit design, the SPEEDX2 2105.5 motor with good handling and stably aggressive power. It offers pilots a super smooth flight experience.
In terms of high strength structure design, SPEEDX2 2105.5 also has good durability and crash resistance. It is an ideal motor for any pilot who builds their own 3-4 inch FPV quads or 4-5 inch long range FPV quads.
We worked to make a lighter, more responsive, more efficient and more powerful brushless motor.
Characteristics
1. Lightweight design, only 21.0g.
2. High-quality arc magnetic steel, professional magnetic field design, strong magnetic force, stable motor output power.
3. Flat design motor is very important in Freestyle & Racing. Big motor torque, strong explosive force and extremely fast response speed.
4. Good handling and stable power ensure an extremely smooth flight experience.
5. The unique "Hollow out" design at the top of the rotor can be used to improve the heat dissipation efficiency.
6. High strength motor structure, good durability and impact resistance.
7. The 1.5mm shaft is suitable for most conventional 3-5 inch FPV quad propellers on the market.
8. Suitable for 3-4 inch FPV quad and 4-5 inch long range FPV quad.
Specifications
SPEEDX2 2105.5-2650KV
- Power: 2650KV
- Configuration: 12N14P
- Magnet: N52H ARC
- Stator diameter: 21mm
- Stator height: 5.5mm
- Shaft diameter: Φ3.0mm(inch) Φ1.5(outlet)
- Size: Φ25.65mm*15.7mm
- Wire Conductors: 22#AWG 150mm
- Number of cells (LiPo): 2-6S
- Maximum continuous power (W) (5S): 559
- Maximum current (5S): 34.9A
- Mounting holes: 12mm x 12mm (M2 screw)
- Color: Titanium, Black
- Weight: 21.0 g
- Suitable Quadcopter: 3-4" whoop FPV, 4-5" toothpick FPV and long range FPV
SPEEDX2 2105.5-3450KV
- Power: 3450KV
- Configuration: 12N14P
- Magnet: N52H ARC
- Stator diameter: 21mm
- Stator height: 5.5mm
- Shaft diameter: Φ3.0mm(inch) Φ1.5(outlet)
- Size: Φ25.65mm*15.7mm
- Wire Conductors: 22#AWG 150mm
- Number of cells (LiPo): 3-4S
- Maximum continuous power (W): 558
- Maximum current (A): 34.9A
- Mounting holes: 12mm x 12mm (M2 screw)
- Color: Titanium, Black
- Weight: 21.0 g
- Suitable Quadcopter: 3-4" whoop FPV, 4-5" toothpick FPV and long range FPV
Package Included
1 x SPEEDX2 2105.5 Motor
5 M2*6mm screws
5 M2*7mm screws
