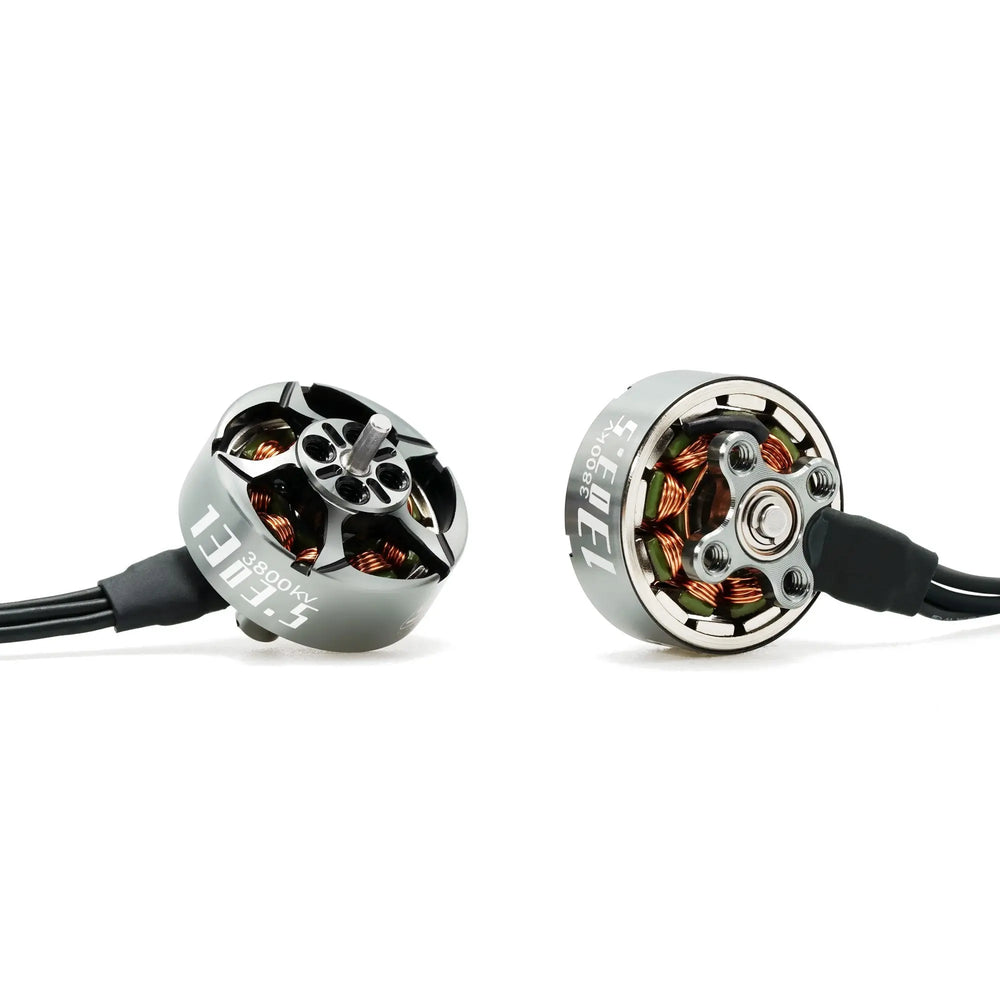

The SPEEDX2 1303.5 motor is an innovative brushless motor with lightweight design, unique appearance and good heat dissipation.
With a lightweight construction, only 6.5g (90mm cable length). The outer rotor uses a blade design, which is exquisite and magnificent. The raised propeller platform has greater compatibility with inverted propeller models, and prevents contact between the wide-pitch propeller and the top of the rotor from causing the propeller to become unbalanced. A large area is hollowed out to reduce weight, so as to achieve good heat dissipation and efficiency, and effectively control the working temperature of the motor.
The SPEEDX2 1303.5 motor is made of high-quality 7075-T aircraft-grade aluminum, which gives greater strength to the rotor. Good magnetic circuit design, with stable linearity and efficient explosive power, gives pilots an extremely smooth flying experience. Perfect for pilots to build their own 2 inch FPV cinewhoop drones.
GEPRC is committed to providing pilots with lighter, faster responding, more efficient and more powerful brushless motors.
Specifications
Model: SPEEDX2 1303.5-5500KV
- Configuration: 9N12P
- Magnet: N52H ARC
- Stator diameter: 13 mm
- Stator height: 3.5mm
- Shaft Diameter: Φ1.5mm(in)2mm(out)
- Size: Φ17.35mm*11.7mm
- Wires: 28#AWG 90mm
- Rated voltage (LiPo): 2-4S
- Maximum power: 128.8W
- Maximum Current: 8.7A
- Recommended ESC: 35A
- Mounting Hole: 9mm x 9mm (M2)
- Color: titanium color
- Weight: 6.5g (wire length 90mm)
- Suitable models: 2 inch propeller guard drones or 2.5 inch freestyle drones
Model: SPEEDX2 1303.5-3800KV
- Configuration: 9N12P
- Magnet: N52H ARC
- Stator diameter: 13 mm
- Stator height: 3.5mm
- Shaft Diameter: Φ1.5mm(in)2mm(out)
- Size: Φ17.35mm*11.7mm
- Wires: 28#AWG 90mm
- Rated voltage (LiPo): 4-6S
- Maximum power: 139.9W
- Maximum Current: 6.3A
- Recommended ESC: 35A
- Mounting Hole: 9mm x 9mm (M2)
- Color: titanium color
- Weight: 6.5g (wire length 90mm)
- Suitable models: 2 inch propeller guard drones or 2.5 inch freestyle drones
Characteristics
1. High-strength 7075 aircraft aluminum housing makes the motor more durable and shockproof.
2. Small size and lightweight design make flying lighter. The weight with cable is only 6.5g (cable length 90mm), suitable for building a 2 inch drone with propeller protection.
3. The large hollow rotor design has large air intake and strong temperature control so that the motor runs more stably.
4. N52H powerful magnet, with low internal loss stator, the efficiency is greatly improved, making the resistance more durable.
5. The 1.5mm shaft is generally suitable for conventional 2-2.5 inch propellers on the market.
Package Included
- 1x SPEEDX2 1303.5 engine
- 6x M2*6mm screws
- 6x M2*8mm screws
