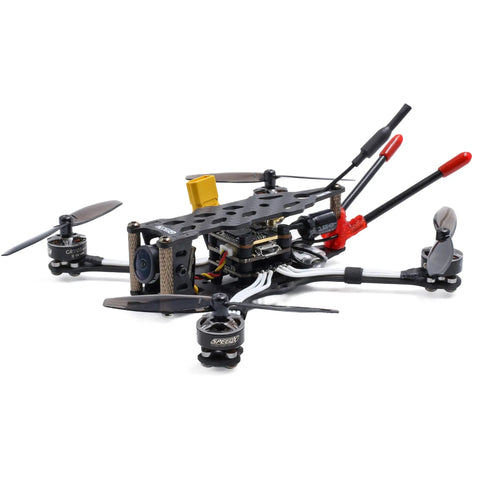

PHANTOM is a mini quad for Freestyle, with 2.5 inch propellers and GR1103 8000kv motors with 3S 300mAh battery. The flight experience is similar to a quad with 5 inch propellers. It is a quad for Freestyle training. You will like it.
Specifications:
- Name: PHANTOM
- FC: STM32F411
- ESC: 12A (BLheli_S)
- Motor: GEPRC GEP-GR1103 8000KV (3S 300mAh)
- Wheelbase: 125mm
- Propeller: HQ Prop T65
- VTX: 5.8g 200mW
- Camera: Caddx EOS2
- Battery input: 2-3S Lipo 300mAh
- Weight: 51g (without battery)
- Take-off weight less than 250 grams
- Battery Connector: XT30
STABLE F411 Micro System:
- STABLE F411 Flight Controller (16*16mm)
- MCU: STM32F411
- Gyroscope: 6-axis
- OSD: BetaFlight OSD with AT7456E chip
- BEC Output: 5V@2A
- Size: 21mm*21mm
- Mounting holes: 16mm*16mm
- Built-in LC filter
- Input voltage: 2-3S LIPO
- Target firmware: MATEKF411
- Weight: 2.5g
STABLE F411 BLheli_S 4IN1 12A ESC (16*16mm)
- MCU: BB21F16G
- Continuous current: 12A
- Input voltage: 2-4S LIPO
- ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
- Size: 23mm*21mm
- Mounting holes: 16*16mm
- Target firmware: Blheli_S G_H_30
- Current meter: 210
- Weight: 2.7g
STABLE F411 VTX 5.8G 200mW (16*16mm)
- Power: PIT/25/100/200mW
- Antenna interface: IPEX (UFL)
- Telemetry: IRC Tramp
- Size: 17mm*27mm
- Mounting holes: 16*16mm
- Built-in LC filter
- Weight: 1.6g
Package Included:
- 1 x PHANTOM Quadcopter
